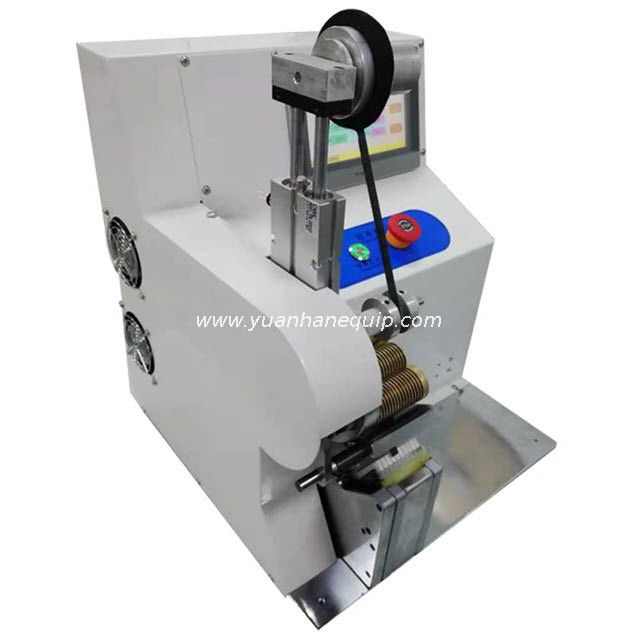

Semi-automatic Wire Spot Taping SystemSemi-automatic Wire Spot Taping System

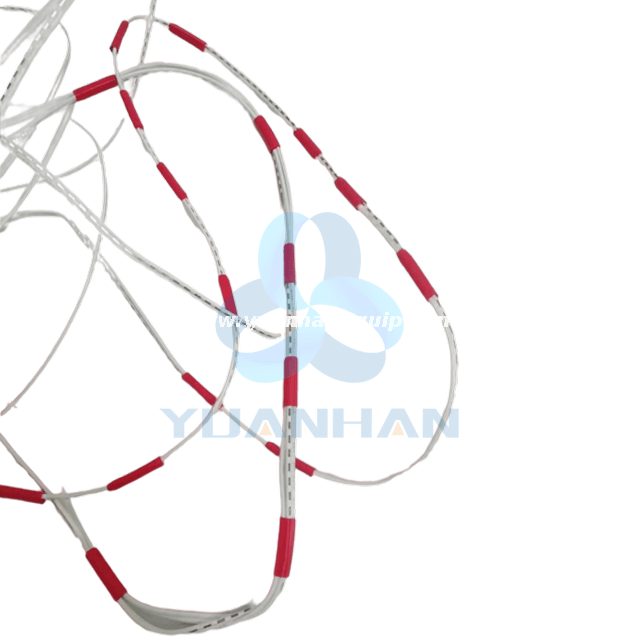

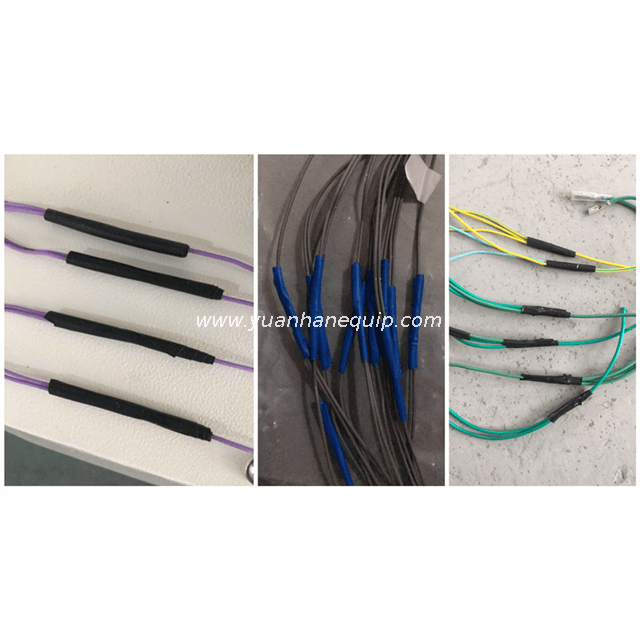

This semi-automatic wire spot taping machine is mainly used for wrapping tapes for wire harness used in automobiles, motorcycles and aviation industries, playing the role of marking, fixing and insulating.

Model:
  • AT-305N
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Compatible with different types of tape materials without release paper, such as cloth tape, PVC tape, etc.

  • Keep it flat and free of wrinkles, which can ensure that the winding of the cloth tape is overlapped with the previous circle by 1/2

  • Switch between different winding modes: point winding at the same position, and spiral winding at different positions

  • Semi-automatic winding

  • Available to custom lap and speed settings and has the output display

Model AT-305N
Tape width 15-45mm
Taping diameter 0.1-12mm
Speed 0-600mm/second
Power 220/110(V)
Weight 44kg
Package size 500*360*360mm



×
