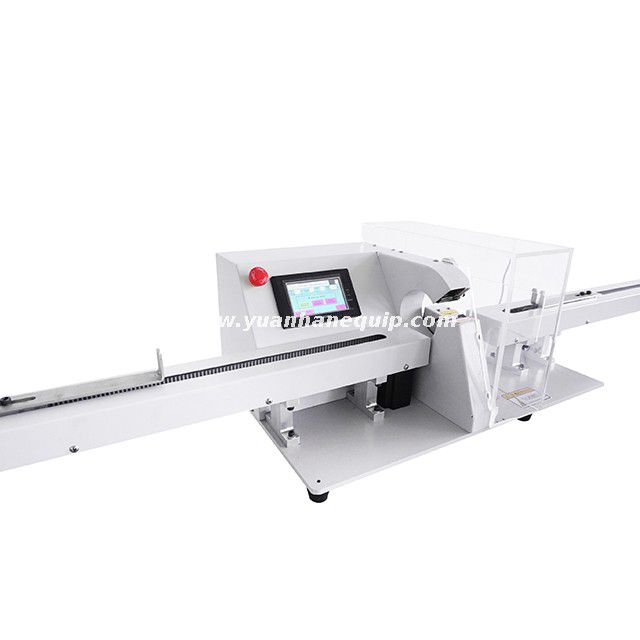

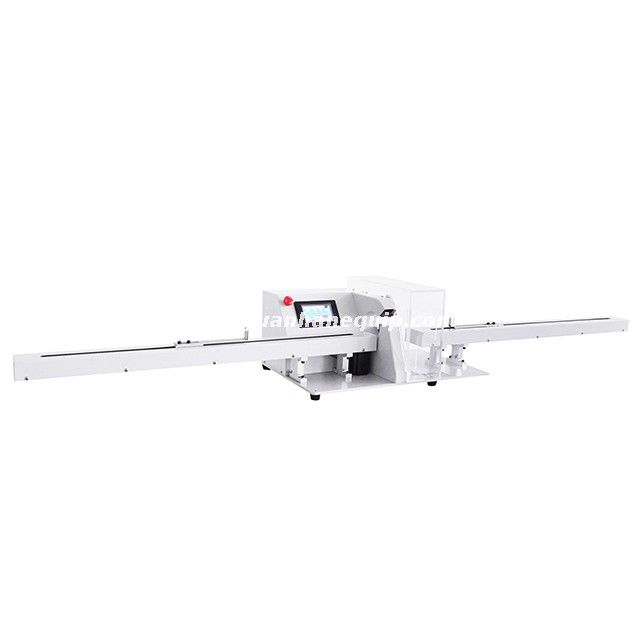

Automatic Wire Harness Taping Machine with Left and Right Traction ControlAutomatic Wire Harness Taping Machine with Left and Right Traction Control

This automatic wire harness taping machine with left and right traction control can process spot taping and continuous taping. There are requirements for the wrapping length of the tape, and the accuracy of the wrapping position can reach: ±1mm.

Model:
  • AT-080-Q
Brand:
  • Yuanhan
Share to:
Features
Technical Data
  • Taping method: spot taping, continuous taping

  • Compatible with different types of tape materials without release paper, such as Flannel tape, acetate tape, electrical tape, polyester tape, etc.

  • Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2

ModelAT-080-Q
Wire pulling length1,050mm ((longer can be customized)
Taping densityadjustable
Taping methodspot taping, continuous taping
Applicable tapeFlannel tape, acetate tape, electrical tape, polyester tape, etc.
Tape width5-25mm (other sizes need to be customized)
Tape inner hole sizeФ37,Ф32
Host speed (ret/min)300-2,500 continuously adjustable
Weight36KG
Powper supplyAC220V/DC24V  50/60HZ
Dimension1,470mm*380mm*280mm (LxWxH)



×
