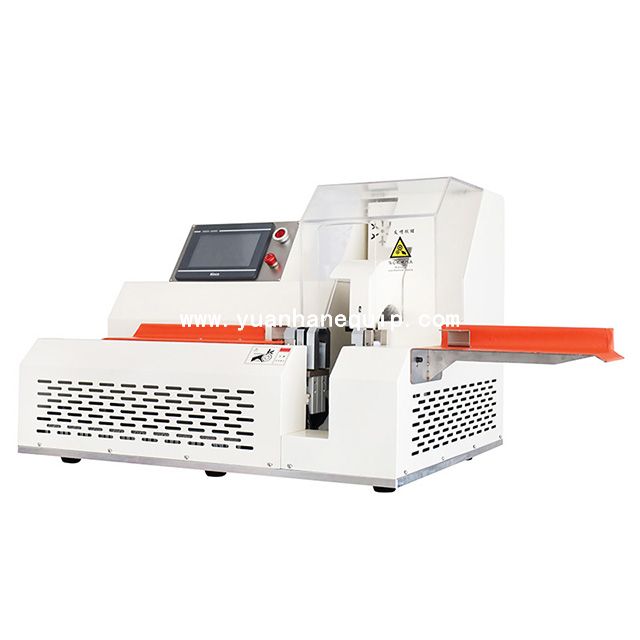

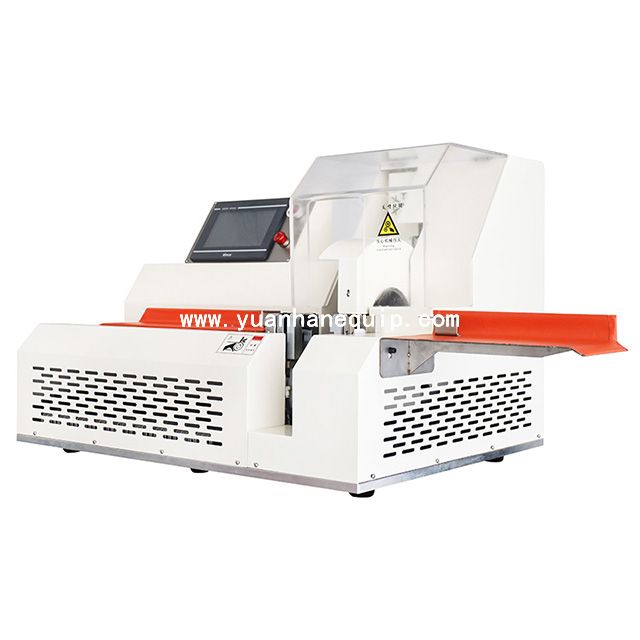

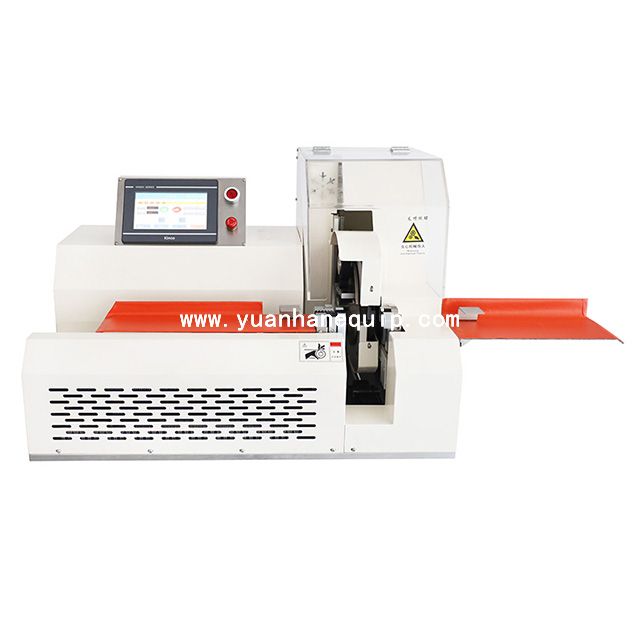

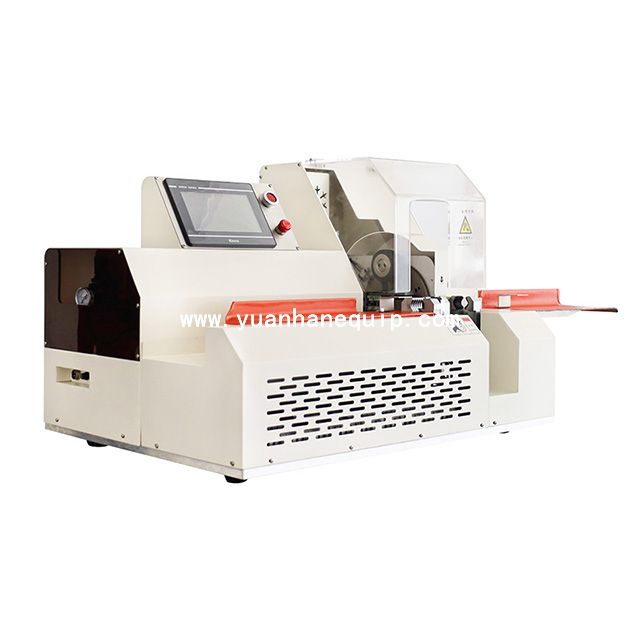

Left-Pull Multi-Point Tape Winding MachineLeft-Pull Multi-Point Tape Winding Machine

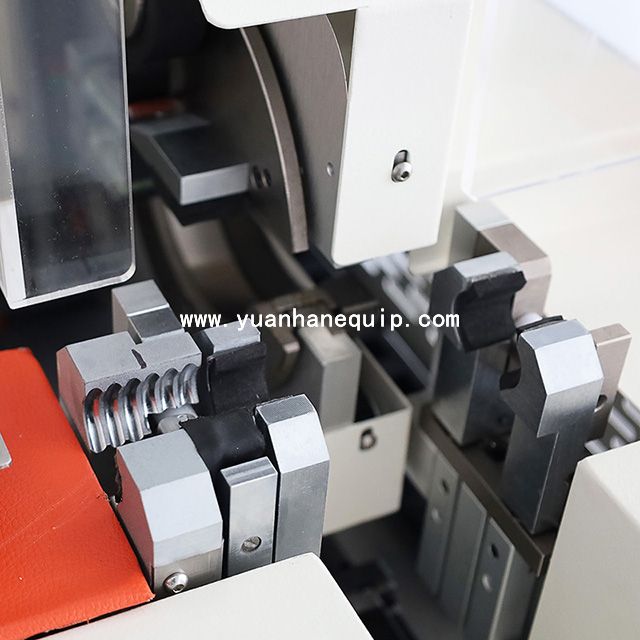

The automatic multi-point tape winding machine is mainly composed of a tape rotating device, a moving device, a left-pulling device and a clamping and fixing device.

Model:
  • YH-DD305
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This machine is suitable for multi-point tape winding.

○ It consists of a tape rotating device, a moving device, a left-pulling device and a clamping and fixing device.

○ It also includes sheet metal protection device and electrical control system.

Model YH-DD305
Applicable workpiece single metal strip or hard round rod
Working efficiency about 6s / point (Depending on the number of winding points, the efficiency is different.)
Working temperature 0-40℃(ambient temperature)
Power 1KW
Power supply two-phase, AC220V, 50HZ
Dimensions 800(L)×600(W)×560(H)
Weight 90kg



×
