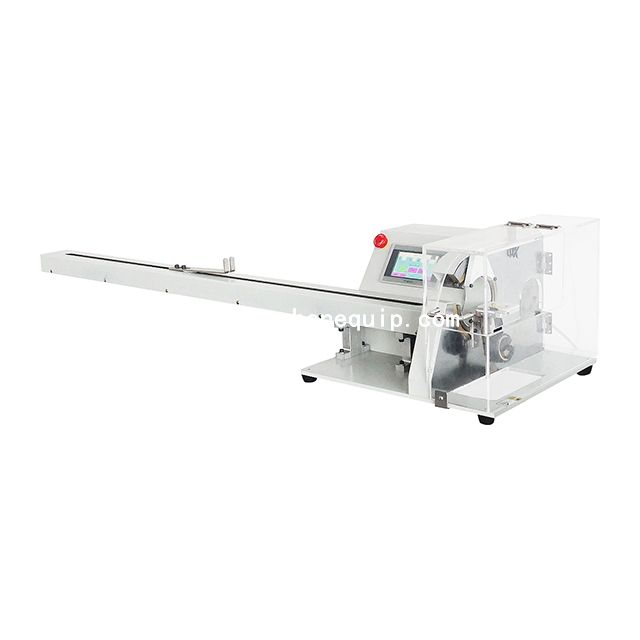

Wire Harness Taping Machine With Cable Pulling DeviceWire Harness Taping Machine With Cable Pulling Device

This wire harness taping machine can process spot taping and continuous taping. There are requirements for the wrapping length of the tape, and the accuracy of the wrapping position can reach: ±1mm.

Model:
  • AT-080LX
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Taping method: spot taping, continuous taping

  • Compatible with different types of tape materials without release paper, such as Flannel tape, acetate tape, electrical tape, polyester tape, etc.

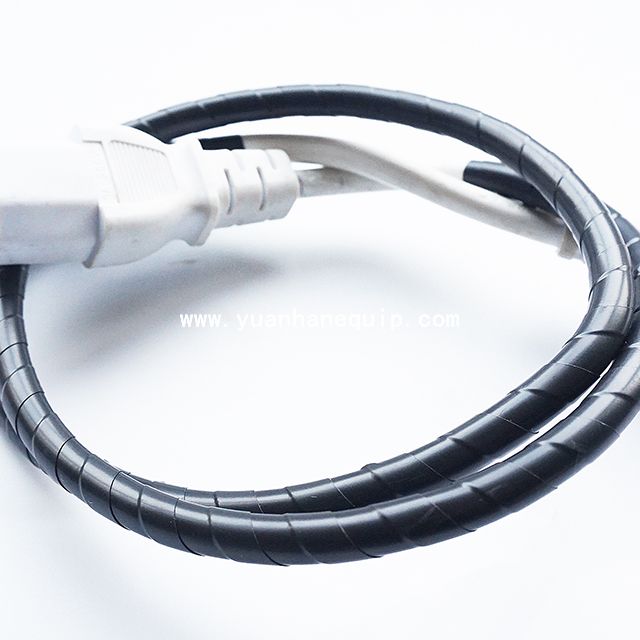

  • Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2

ModelAT-080LX
Wire pulling length1,050mm ((longer can be customized)
Taping densityadjustable
Taping methodspot taping, continuous taping
Applicable tapeFlannel tape, acetate tape, electrical tape, polyester tape, etc.
Tape width5-25mm (other sizes need to be customized)
Tape inner hole sizeФ37,Ф32
Host speed (ret/min)300-2,500 continuously adjustable
Weight36KG
Powper supplyAC220V/DC24V  50/60HZ
Dimension1,470mm*380mm*280mm (LxWxH)



×
