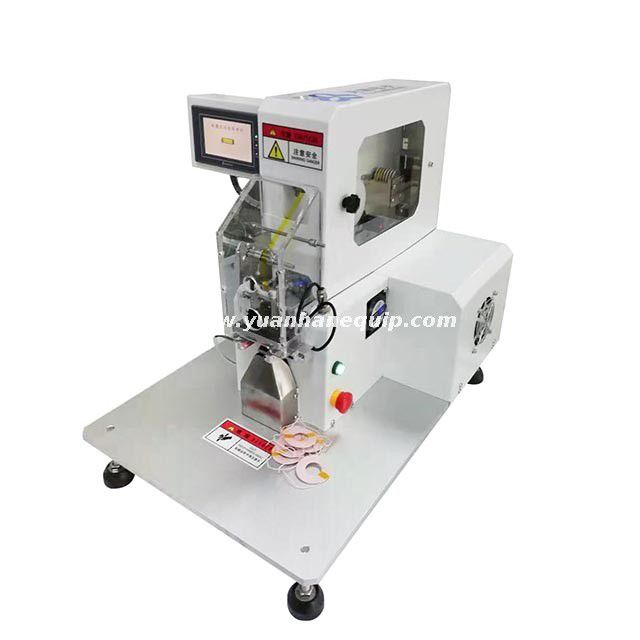

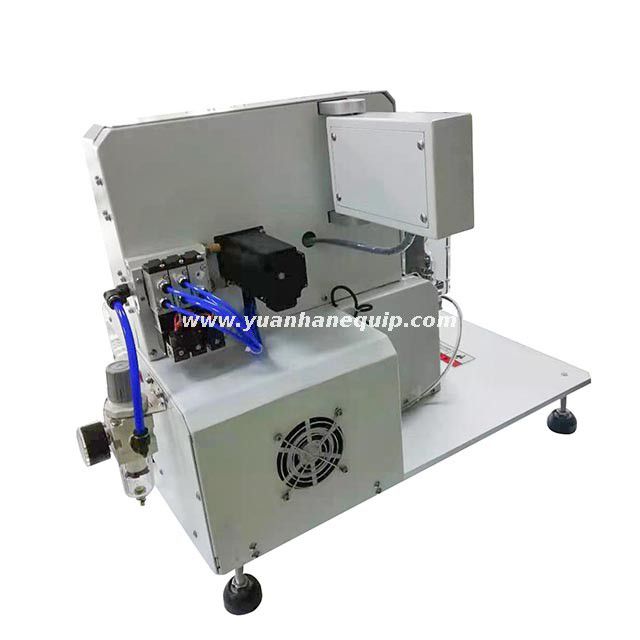

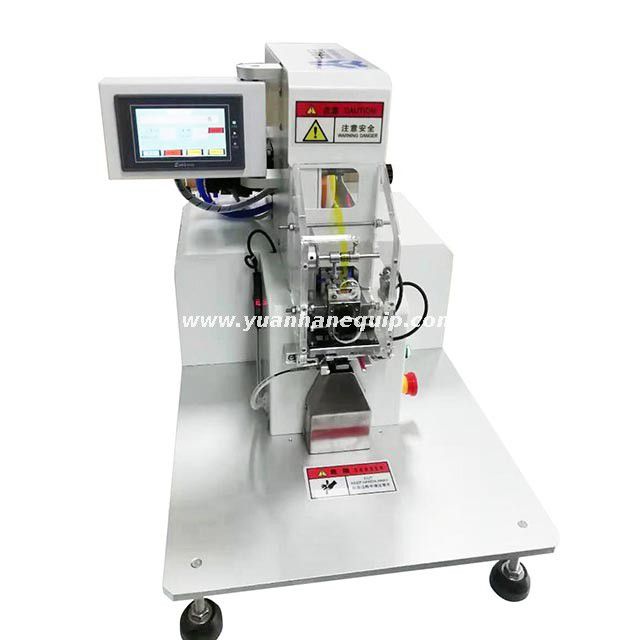

Inductance Coils Tape Bundling MachineInductance Coils Tape Bundling Machine

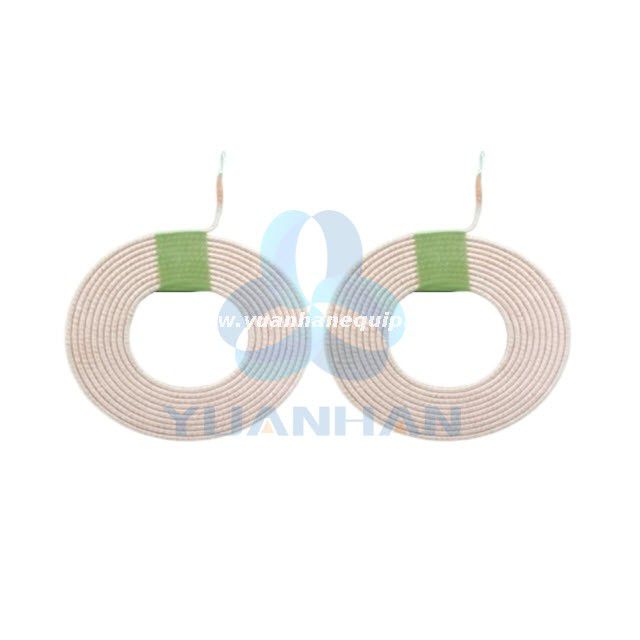

This coil taping machine is used to apply insulating tapes on inductance coils and copper coils for AC and DC generators and motors.

Model:
  • YH-1016
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • The taping head has a high-tech electronic system to control and manage the tape tension and the taping angle.

  • Smart anti-vibration system makes it possible to keep the roll in perfect position during the tape application and guarantee high quality results.

  • Replace the insulating tapes: the old and new insulating tapes are bonded end to end.

  • The taping tightness is subject to the existing mold. If there is a special product, it is necessary to customize the reel according to the product size.

  • The vulnerable parts of this machine are paper cutting scissors, paper roll and contact switch.

  • Other electrical components are guaranteed for one year, except for damage caused by man-made and irresistible factors.

ModelYH-1016
Taping speed1.5S
Tape width10-15 mm(customizable)
Tape inner diameter76mm
Tape outer diameterMax 120mm
Power supply220v 50hz, 0.55kw
Cutting length45-75 mm
Air pressure4kg/cm2
Weight30kg
Dimensions670x390x480 mm


×
