Copper Wire Coil Tape Wrapping MachineCopper Wire Coil Tape Wrapping Machine

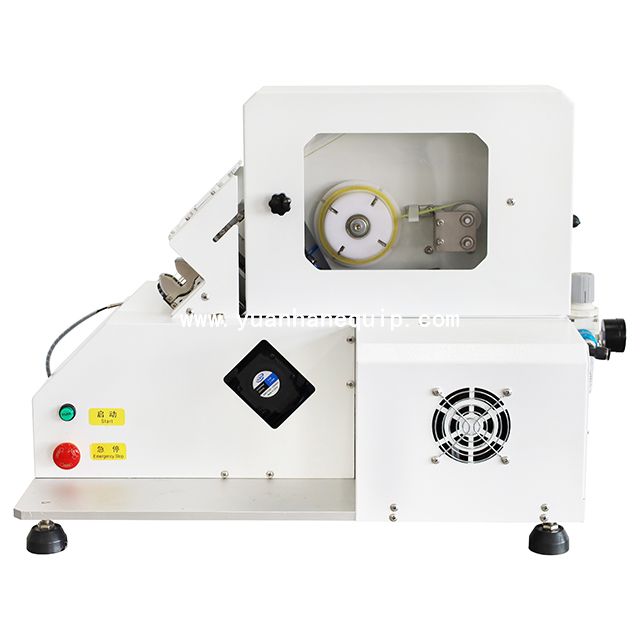

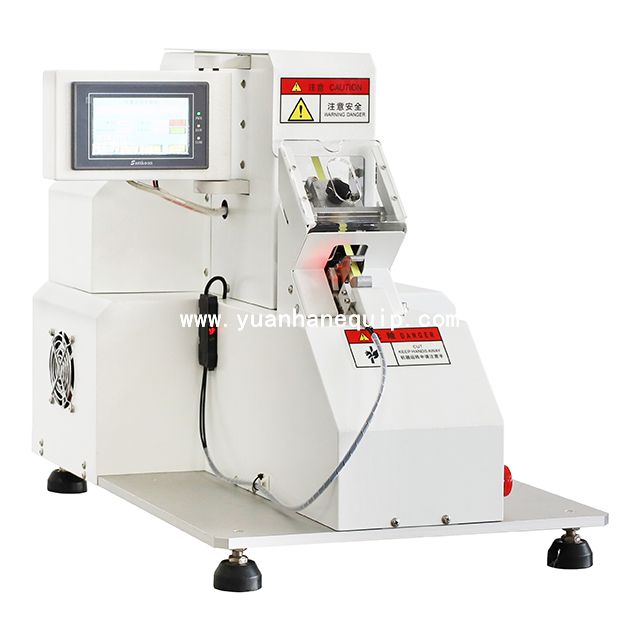

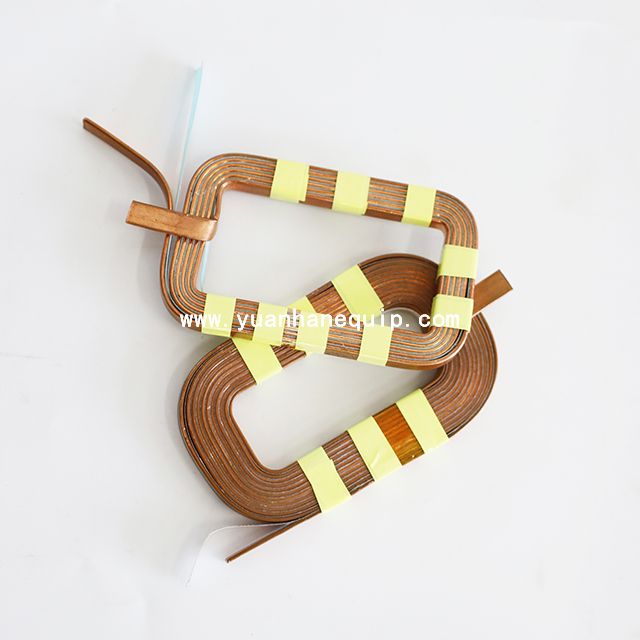

This is a semi-automatic tape wrapping-around machine for taping wire coils. The taping speed is within 1.5s.

  • YH-1015
  • Yuanhan
Share to:
  • Taping speed: within 1.5s

  • Applicable tape width: 12mm-18mm

  • Max tape OD: 120mm

  • Tape cutting range: 45mm-75mm

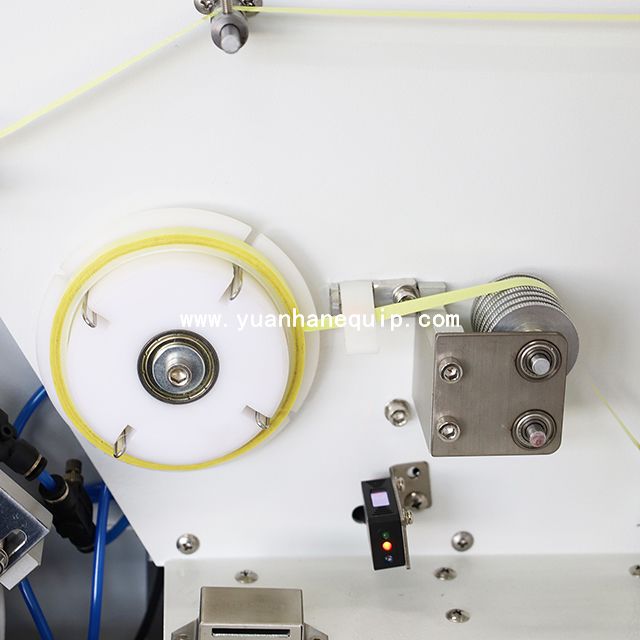

  • Replace the adhesive tape: the old and new adhesive tapes are bonded end to end.

  • The taping tightness is subject to the existing mold. If there is a special product, it is necessary to customize the reel according to the product size.

  • The vulnerable parts of this machine are paper cutting scissors, paper roll and contact switch.

  • Other electrical components are guaranteed for one year, except for damage caused by man-made and irresistible factors.

Taping speed1.5S
Tape width10-15 mm(customizable)
Tape inner diameter76mm
Tape outer diameterMax 120mm
Power supply220v 50hz, 0.55kw
Cutting length45-75 mm

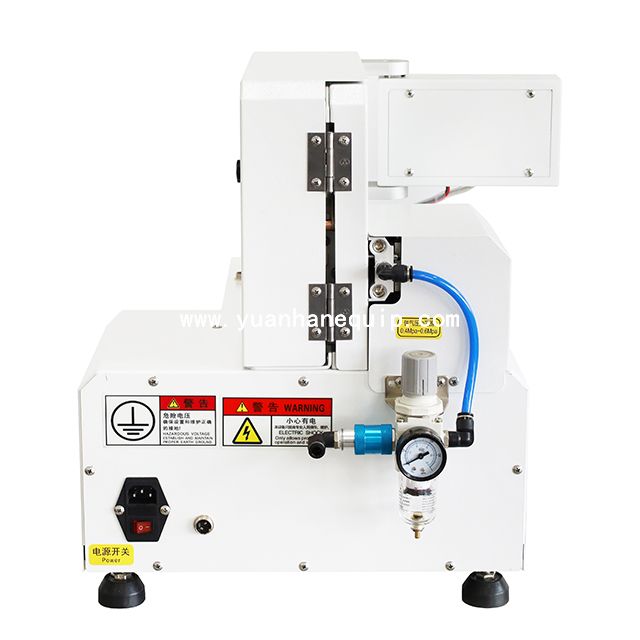

Air pressure4kg/cm2
Dimensions670x390x480 mm
