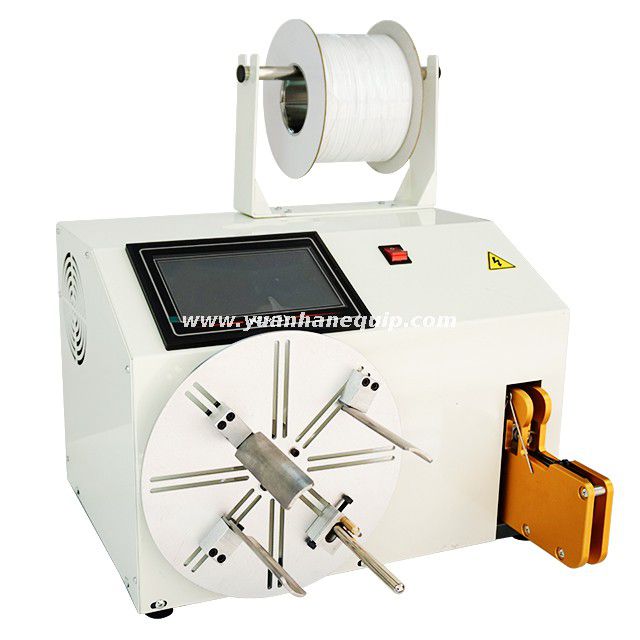

Automatic Cable Winding and Tying Machine

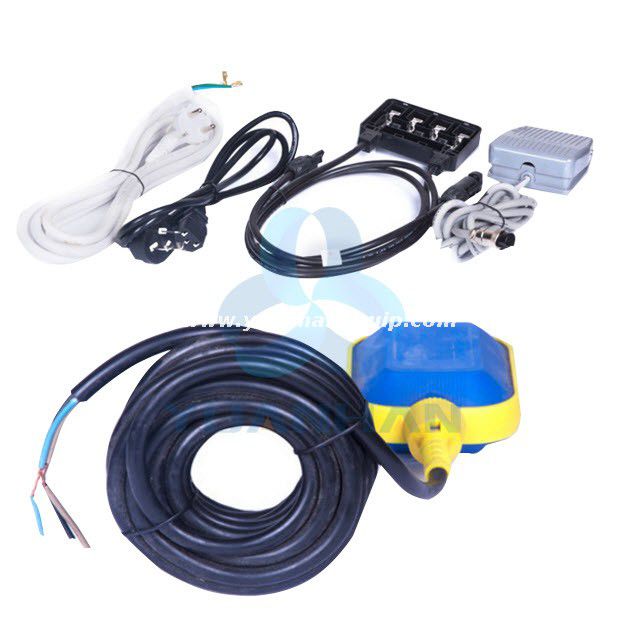

This semi automatic wire winding and tying machine is suitable for processing USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.

Model:
  • YH-35A
Brand:
  • Yuanhan
Share to:
Features
Specifications

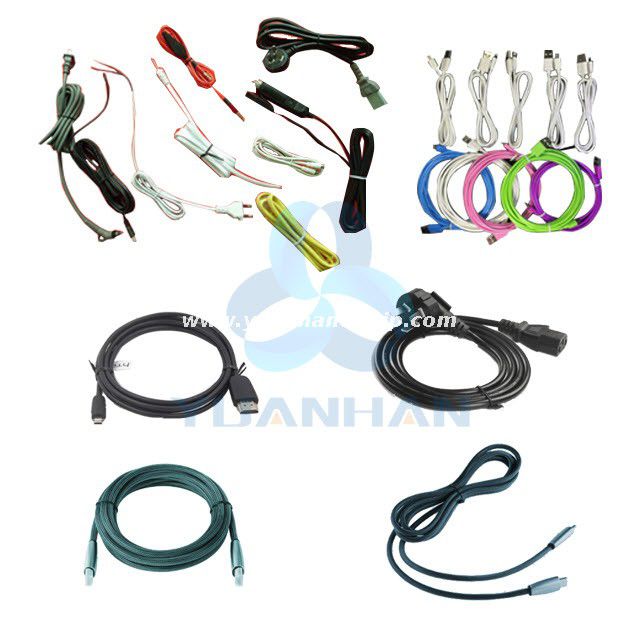

  • This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.

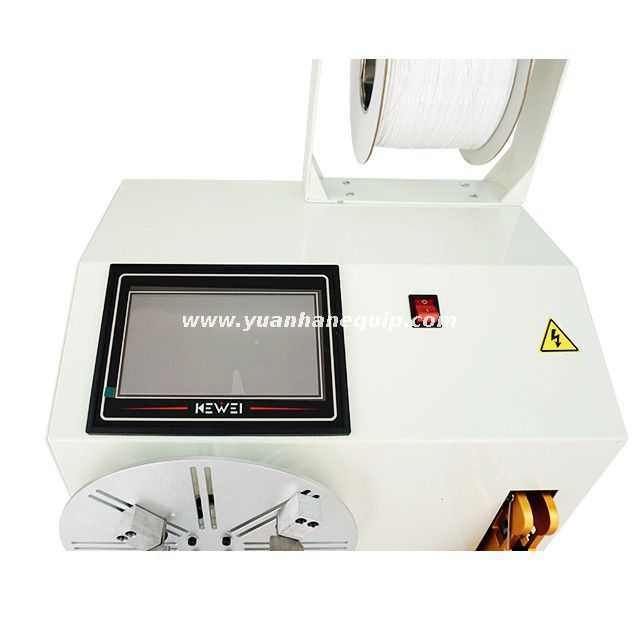

  • PLC program control, LCD text parameter setting, easy to operate

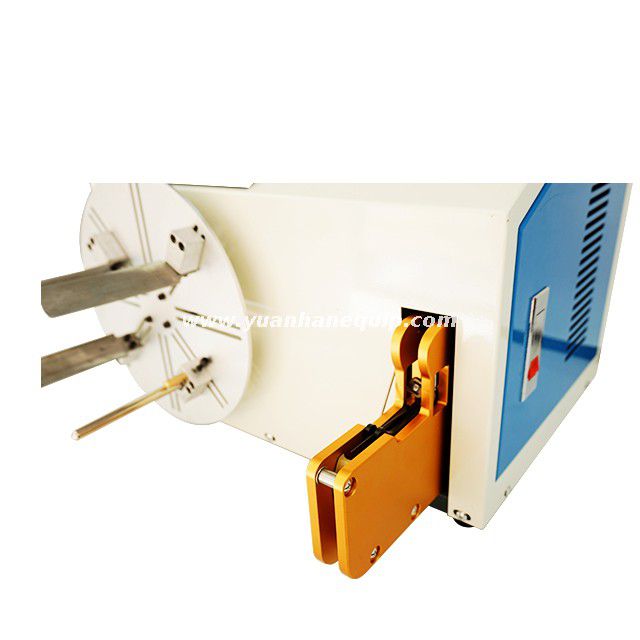

  • Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire

  • This machine can customize the number of coils, the number of ties and the length of the cable tie

  • The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation

ModelYH-35A
VoltageAC 220V/110V 50Hz/60Hz
Power80W
Winding diameter50-200mm (adjustable)
Coil size220mm
Winding speed1-30 levels (adjustable)
Winding circle1-999 circles (adjustable)
Twist bundle length110-200mm (adjustable)
Binding diameter
φ 5-45mm
Binding circleAdjustable (suggest 2-6 circles)
Twist speed1-2 levels (suggest level 2)
Twist tiesEncased iron core PE material
Twist ShapeRound shape & long & 8 shape
Weight
43KG
Dimension
450x390x580mm (LxWxH)




×
