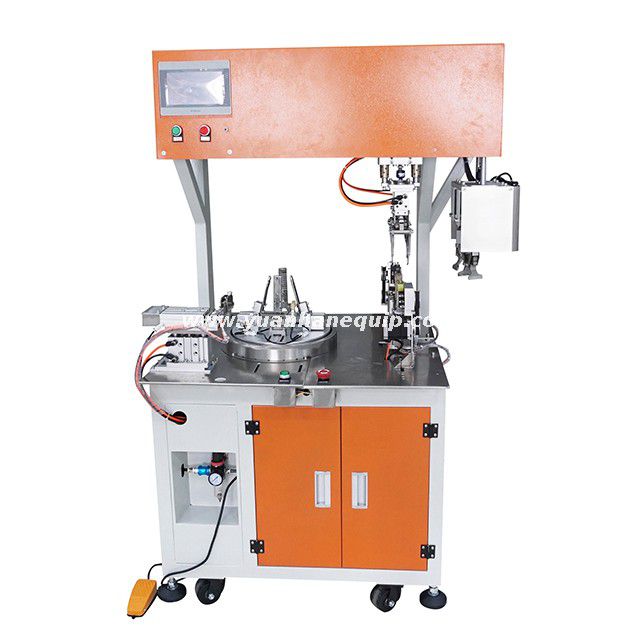

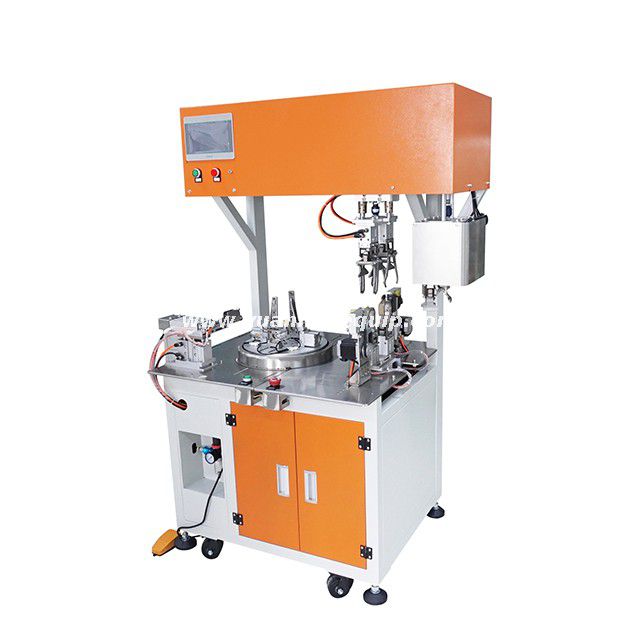

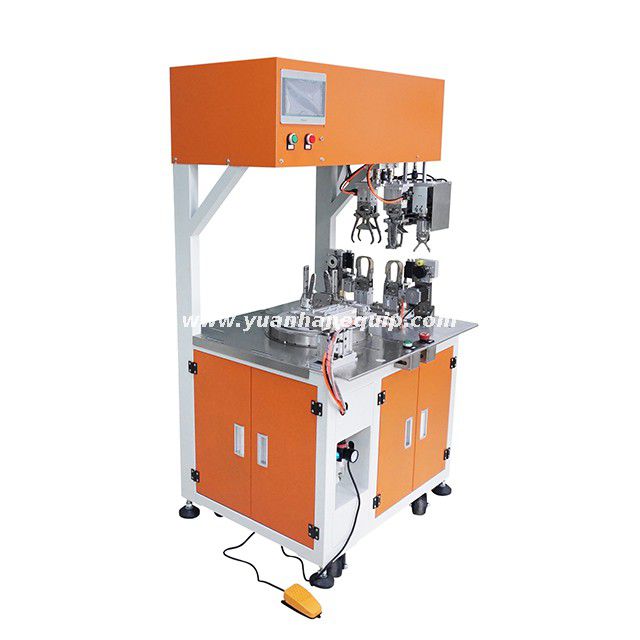

Fully Automatic Wire Winding & Twisting Tie MachineFully Automatic Wire Winding & Twisting Tie Machine

This fully automatic wire winding & twisting tie machine is suitable for tube and wire coil winding and tying. It can bundle the coil using two ties at one time.

Model:
  • YH-BM0
Brand:
  • Yuanhan
Share to:
Features
Specifications

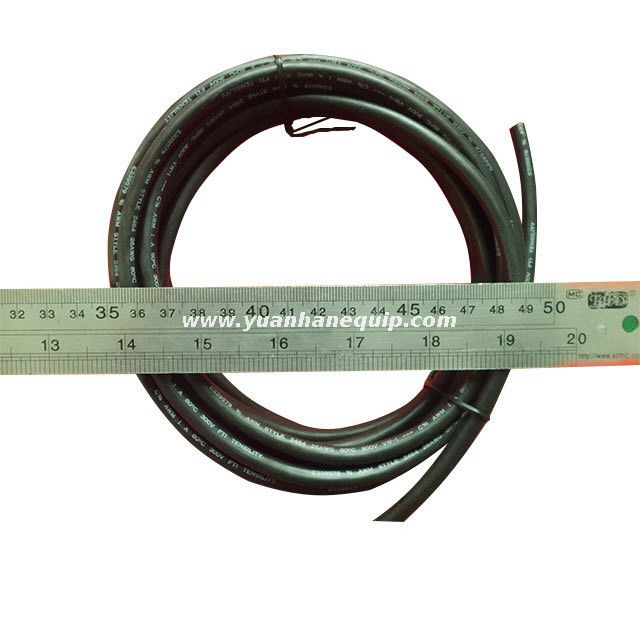

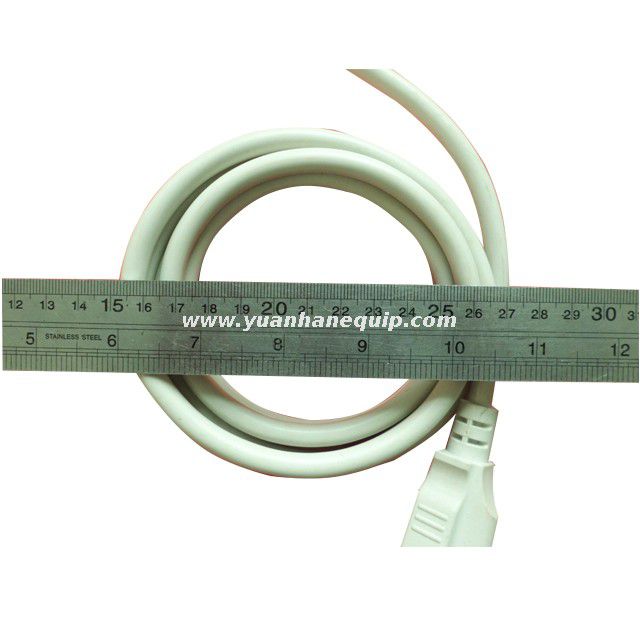

  • ○ Suitable for wire and tube round coil winding and bundling with two ties

  • ○ Strong compatibility, applicable to a variety of pipe materials, such as: drinking water pipe,  hot pipe, PE pipe, etc.

  • ○ High performance, speed up to 1200 per hour, save labor costs

  • ○ Simple and easy to operate, easy to maintain

  • ○ Easy to operate, maintain and debug

  • ○ Small size and space saving

  • ○ The finished product is beautiful, generous, neat and easy to pack

  • ○ Ergonomic design to reduce fatigue

  • ○ Adopt the original SMC cylinder imported from Japan and a full set of pneumatic components from Taiwan AirTAC

ModelYH-BM0
Suitable materialTube wire winding
Applicable diameter≤Φ10mm
Ligation diameter≤ 50 mm
Theoretical yield≤ 1200PCS/ H
Spacing70-180mm
Head length40-130mm
Tail length> 40mm
Applicable cable tiesRubber coated iron core
Air pressure0.4-0.55Mpa
Weight120kg
Dimension1000*1200*1800mm


×
