Automatic Shark Teeth Connector Crimping Machine

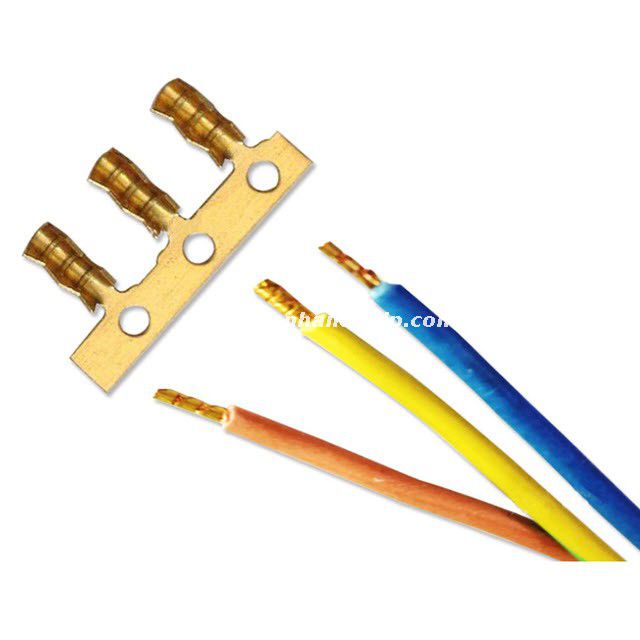

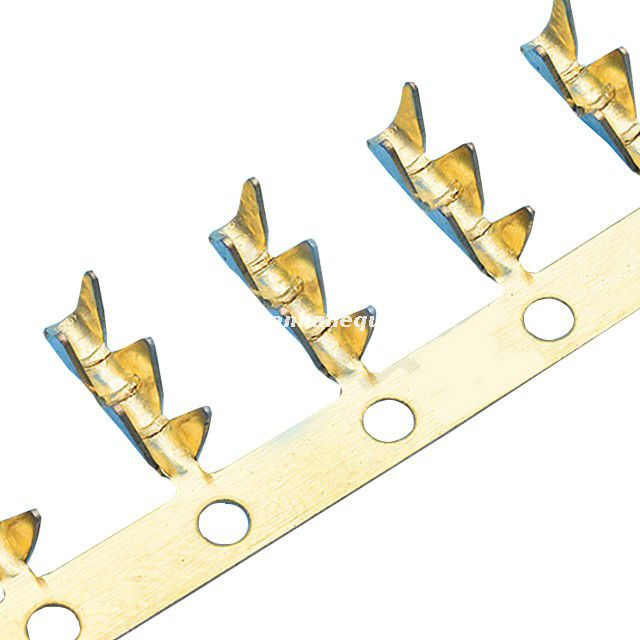

The automatic shark teeth connector crimping machine can complete cable outer jacket stripping, core wires stripping, wire end cutting, automatic feeding, and shark teeth terminal crimping at one time.

Model:
  • YH-580-S
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Main function: cable outer jacket stripping + inner core wires stripping + wire end cutting + automatic feeding + terminal crimping

  • Human-machine interface and PLC control, safe and fast

  • Applicable wires: H03VVH2-F,H05VVH2-F

ModelYH-580-S
Capacity2,300-2,600PCS/H
Riveting force3T
Yield≥99%
Inner core wire stripping diameter4-12mm
VoltageAC220V/50HZ
Operating air pressure0.5-0.8Mpa
Power1.0kw/h
Machine weight325KG
Machine size1170mm*560mm*1470mm




×
