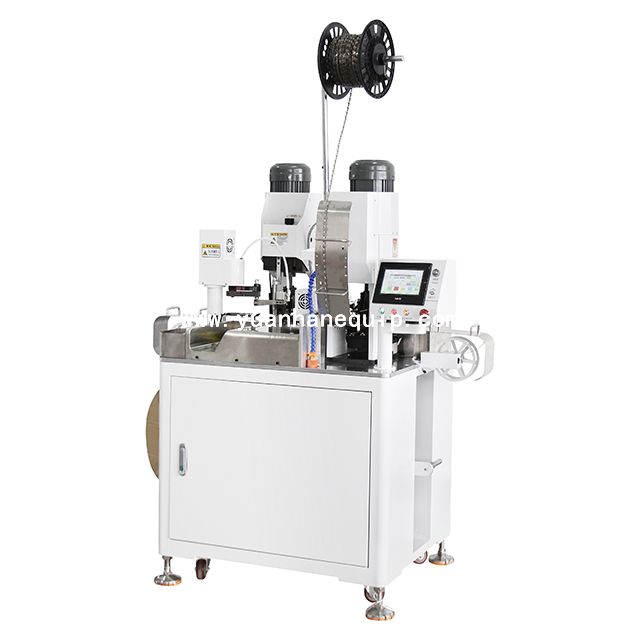

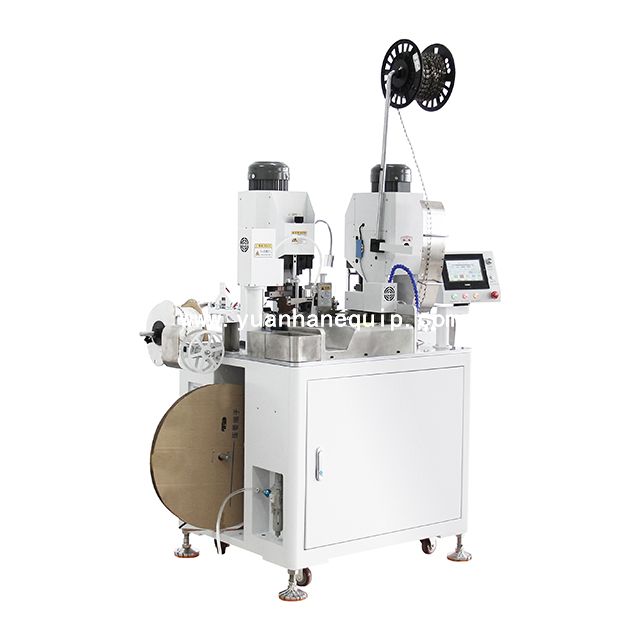

This is a high speed full-servo double-head terminal crimping machine for thin wires. Wire processing range: AWG30#-AWG14#.

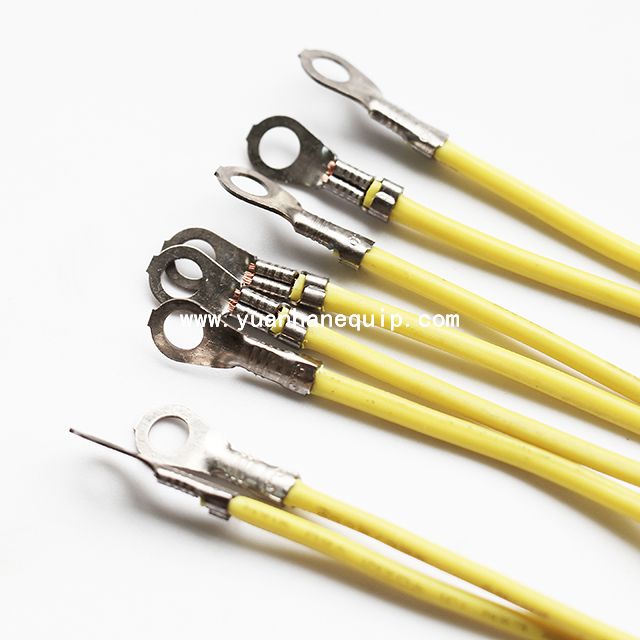

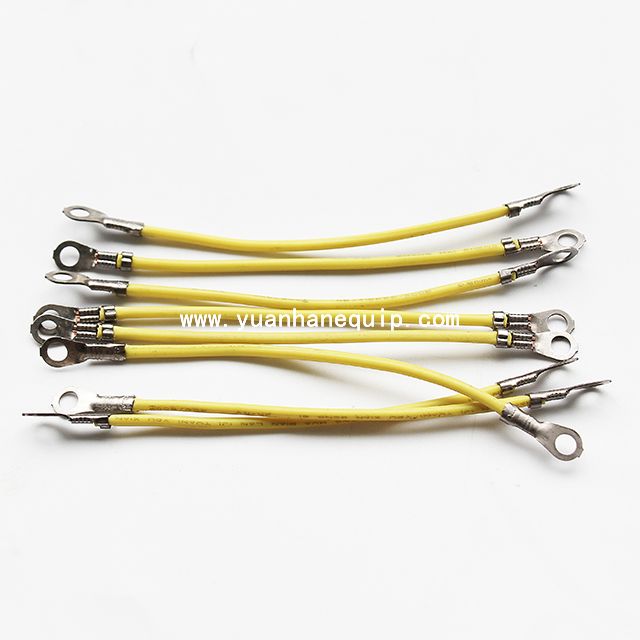

Machine function: wire cutting, stripping at both ends, single-end half-stripping, single-wire single-end crimping, and single-wire double-end crimping.
|Wire cutting length||26mm-9999mm|
|Cutting tolerance||≥1m, below ±0.02%|
|Stripping length||0.5mm-35mm (half stripping is required for more than 12mm)|
|Cutting speed||5500 pcs/h (within 100mm)|
|Processing efficiency||4000-4800/h (within 30~200mm)|
|Crimping force||2.0T, other pressures can be customized|
|Applicable applicator||OTP horizontal applicator, straight applicator (European applicator can be customized)|
|Motor||5 sets of Mitsubishi servo motors + 2 sets of stepper motors|
|Screw||4 sets of TBI screw|
|Slide rail||7 sets of upper silver rail|
|Terminal crimping capacity||2T/3T European precision frequency conversion terminal machine|
|Air pressure||0.5~0.6MPa (stable, clean, dry)|
|Dimensions||length 1380 * width 750 * 1580 height (mm)|
