Flat Cable Stripping Splitting and Crimping MachineFlat Cable Stripping Splitting and Crimping Machine

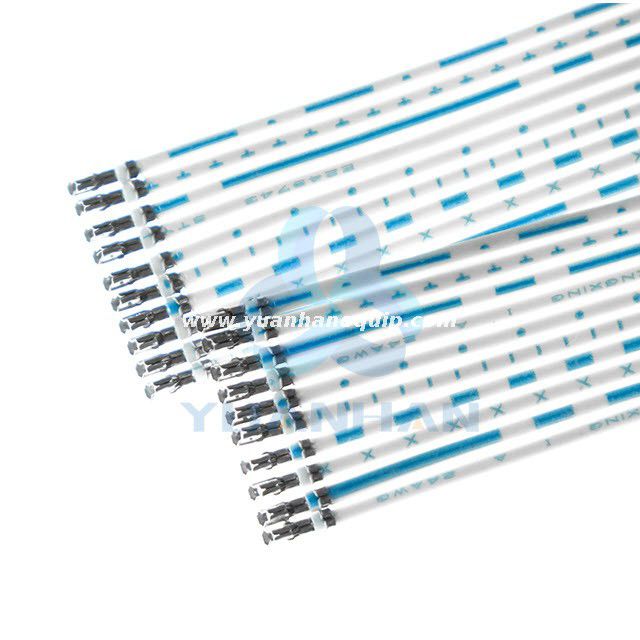

This is a semi automatic terminal crimping machine for flat cables. It can process flat cable stripping, splitting and crimping at one time. Applicable terminals: PH, EH, XH, SM, VH, ZH, DuPont terminals, etc. Capacity: 3,000-5,000 terminals/hour.

Model:
  • YH-HP01
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: flat cable stripping, splitting and terminal crimping

  • Suitable for crimping PH, EH, XH, SM, VH, ZH, DuPont terminals, etc.

  • Semi-automatic production, saving labor

  • The terminals are pressed neatly with good consistency and stable quality

  • Using stepper motor, the crimping pressure is accurate, ensuring continuous performance

ModelYH-HP01
Power supply110/220VAC,50/60Hz
Available wire diameterinner cores: φ 0.8-4mm
Pin No.2-12 pins
Splitting length25-30mm
Stripping length1-7mm
Speed3,000-5,000 terminals/h
Crimping force2T
Air pressure0.4-0.7 Mpa
Dimension65*45*135cm
Weight75kg



×
