Fully Automatic Cable Double-end Housing Shell Inserting Machine

Fully Automatic Cable Double-end Housing Shell Inserting Machine

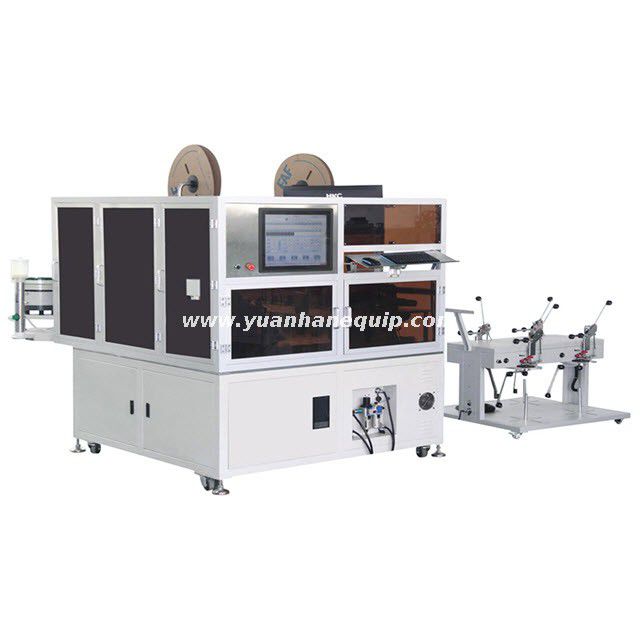

This is a fully automatic cable double-end housing shell inserting machine. It is able to process of double-end cutting, stripping, terminal crimping and housing connector inserting.

Model:	YH-STCJK02
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

Function: cable double-end cutting, stripping, terminal crimping and housing connector inserting.
16 stations on both sides, independent synchronous cycle operation, can close any station independently, effectively improving production efficiency.
Independent double knife holder, convenient and quick to adjust the peeling depth.
The crimping machine adopts the HIWIN guide rail and digital crimping height adjustment.
Reversible defective product isolation method, 100% isolation of defective production.
Ultra-high efficiency, up to 6000 pcs/hour.

Model	YH-STCJK02
Power supply	AC 220v
Maximum power	4.8KW
Air pressure	0.4~0.6 MPa
Weight	1000KG
Dimensions	2400L1500W1850H (excluding wire feeder and vibrating plate part)
Function	A end: Stripping, stripping broken core wire CCD detection, crimping, terminal appearance CCD detection, insertion; B end: Stripping, stripping and broken core wire CCD detection, twisting and tinning (optional), crimping, terminal appearance CCD detection, insertion.
Processing range	AWG18-AWG28
Processing length	950≥L≥90mm
Cutting precision	0.5mm+ cutting length*0.2%
Stripping length	A end: 0.1-6.0mm (insertion end),B end:0.1-10.0mm
Crimping capacity	1.5KN
Maximum number of PINs	20 holes in a single row, up to 3 rows
Maximum PIN color number	8 colors (more colors must be customized)
Housing shell size	MAX:402525 MIN:563
