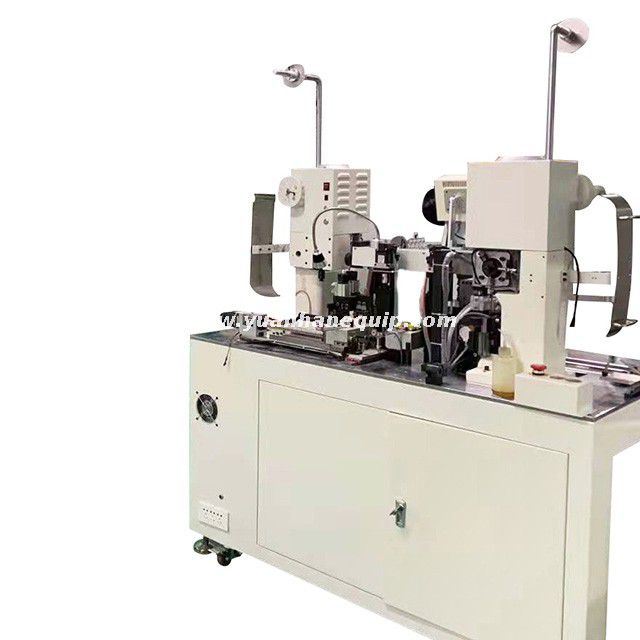

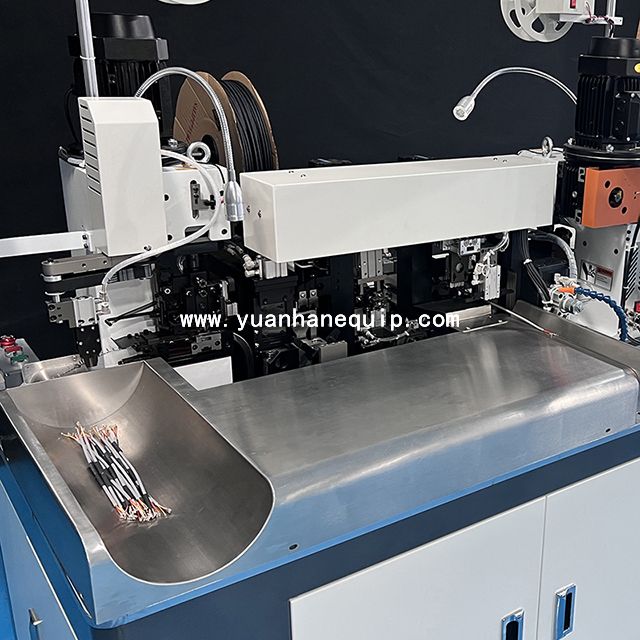

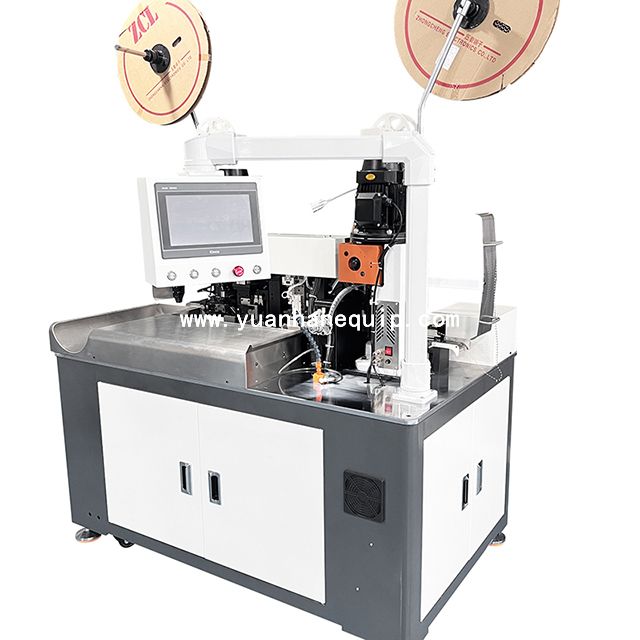

Multi-core Cable Shrinkable Tubing Inserting and Terminal Crimping MachineMulti-core Cable Shrinkable Tubing Inserting and Terminal Crimping Machine

Our multi-core cable shrinkable tubing inserting and terminal crimping machine is a cutting-edge solution for efficiently processing cables with precision and accuracy. This advanced machine is equipped with the capability to perform multiple functions automatically, including cable cutting, outer jacket stripping, inner core wire stripping, heat shrinkable tube cutting & inserting, and terminal crimping.

Model:
  • YH-HTTG01
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: Automatic wire cutting, outer/inner insulation stripping, heat shrink tube cutting, heat shrink tube inserting and terminal crimping

○ Designed for professional use, this machine streamlines the production process by eliminating the need for manual labor and reducing the risk of human error. With its high-speed performance and reliable operation, it ensures consistent results and increased productivity.

○ The multi-core cable shrinkable tubing inserting and terminal crimping machine is built with quality components and advanced technology to deliver exceptional performance and durability. Its user-friendly interface allows for easy operation and customization of settings to meet specific production requirements.

○ Whether you are working in the electrical, automotive, or manufacturing industry, this machine is the ideal solution for enhancing efficiency and precision in cable processing. Invest in our multi-core cable shrinkable tubing inserting and terminal crimping machine to take your production capabilities to the next level.

Model YH-HTTG01
Power supply

AC 220V/50HZ

Main functions Automatic wire cutting, outer/inner insulation stripping, heat shrink tube cutting, heat shrink tube inserting and terminal crimping
Outer jacket stripping length 30mm-120mm
Core wire stripping length 1mm-8mm
Wire cutting length

150mm-9999mm

Processable wire range Outer sheath diameter: 2.0mm-6.5mm Inner core wire AWG 20-28 (depending on the wire material)
Equipment capacity 800-900 Pcs/hour without heat shrink tube (subject to actual production)
Two sets of heat shrink tubes about 550/H (heat shrink tube length about 40mm)
Air pressure 0.5-0.7Mpa
Air pressure monitoring Air pressure detection alarm
Blade High-speed steel
Weight 600Kg
Dimensions 1500*800*1600mm




×
