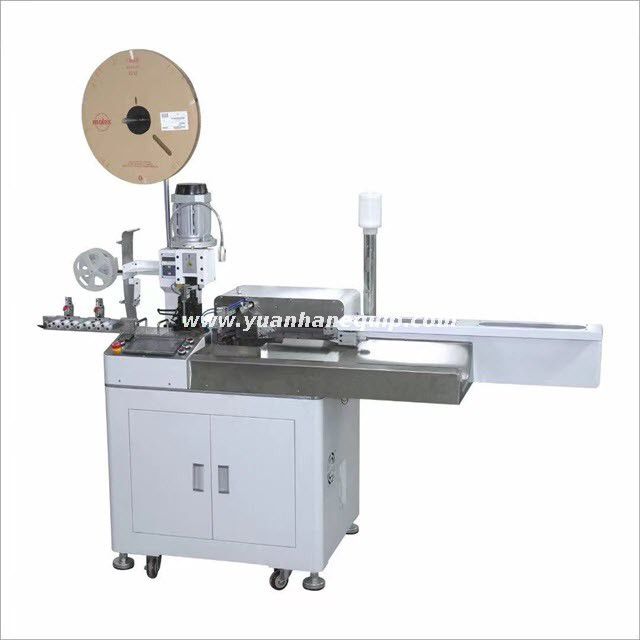

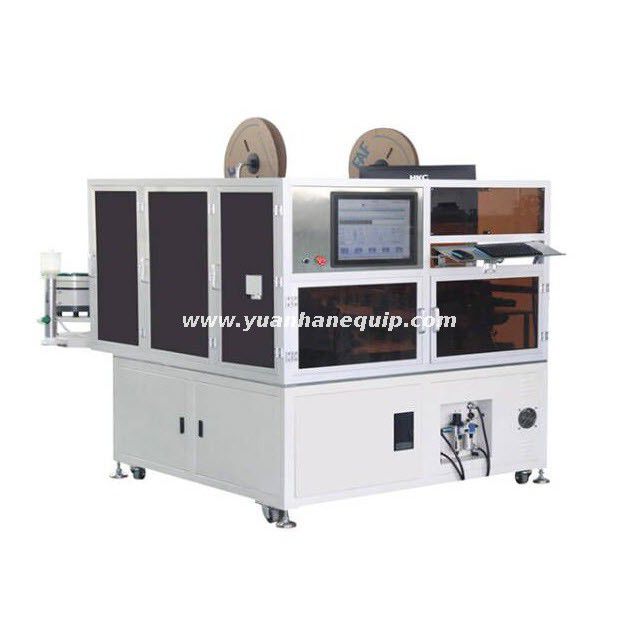

This is an automatic multi-core cable cutting stripping crimping and housing connector inserting machine. It is able to process wire cutting two-end stripping, two-end crimping, and two-end housing inserting automatically.
Functions: wire cutting, two-end stripping, two-end crimping, two-end housing inserting
Adopt Japanese Mitsubishi servo motor, Taiwan TBI module, HIWIN linear guideway, and AirTac cylinder
Wire size: 0.05-0.2mm2 #30-#22, the outer diameter is below 1.5mm.
Cutting length: 25mm-2000mm (customizable)
Stripping length: 1.0-3.0mm
Cutting depth: max. 2mm adjustable
Crimping force: 19KN
|Wire size||0.05-0.2mm2 #30-#22, the outer diameter is below 1.5mm.|
|Cutting length||25mm-2000mm (customizable)|
|Cutting depth||max. 2mm adjustable|
|Detection device||Air pressure reduction, simple pressure management device, the presence/absence of wires, wire conduction, stripping error, crimping error, the presence/absence of housing connector, insertion detection, the presence/absence of terminals, terminal overload.|
|Power supply||AC220V 50/60Hz 10A single phase|
|Air pressure||0.5Mpa (5kgf/cm2) about 170NL/min (please use clean and dry air)|
