Flat Cable Single Head Crimping and Housing Plugging-in MachineFlat Cable Single Head Crimping and Housing Plugging-in Machine

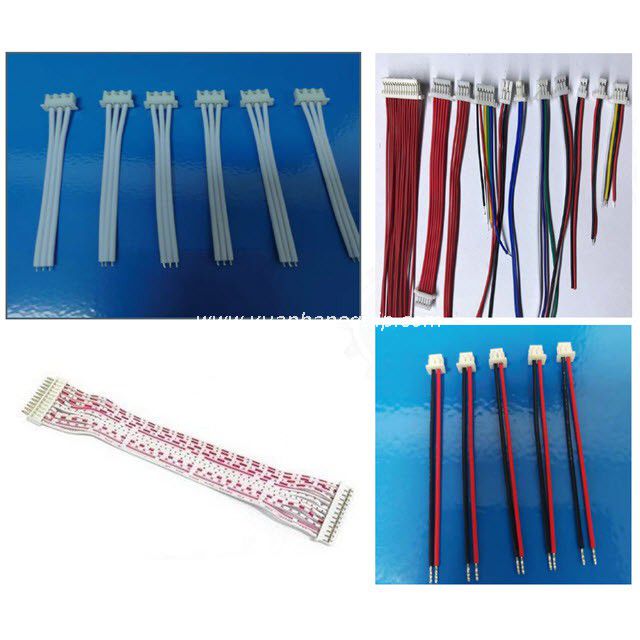

This is a fully automatic cable single end crimping and housing connector plugging-in machine. It can process parallel twin cables, multiple electronic wires, and flat cables.

  • YH-03CJH
  • Yuanhan
Share to:
  • Applicable wires: parallel cables, multiple electronic wires, and flat cables

  • Processing length: 20mm-600mm

  • Applicable terminals and housing connectors: GH1.25, ZH1.5, PH, XH, VH, SM and other chain terminals and housing connectors.

  • Main function: wire fixed length cutting, wire splitting, stripping, terminal crimping and housing connector inserting.

  • Three modes available: electronic cable, flat cable, and super short cable. The three modes can be switched by one key on the HMI touch screen, and the humanized operation is convenient and quick.

Input powerAC220V 50HZ
Input air pressure0.6-0.8Mpa
Machine power2KW, 10A
Functions of this machinewire cutting, stripping, twisting, tinning, terminal crimping, housing connector inserting.
Housing inserting speed6,000-,8000 pcs/hour (depending on wire length)
Processing length20mm-600mm
Applicable wireAWG18#-AWG34#. Various flat cables, electronic cables, and parallel cables
Stripping length1.0-5.0mm at the tin end, 1.0-5.0mm at the crimping end
Cutting accuracy-0.1mm~+0.1mm
Glue box separation1.0, 1.25, 1.5, 2.0, 2.54mm
Crimping moldTaiwan Fengchen
Motor brandDelta
Solenoid valve brandAirTac
Screw guide railSilver, TPI
Space occupation5m²
