Kunshan Yuanhan Electronic Equipment Co., Ltd.

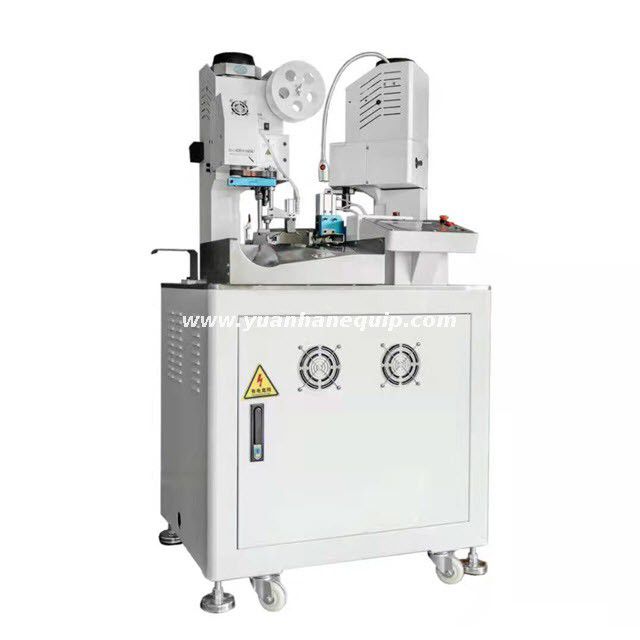

This fully automatic double-head terminal crimping machine can process wire cutting, two ends stripping, one end crimping, two ends crimping, and one end twisting. It can be equipped with horizontal and vertical applicators as required.
Model:
|
|
Brand:
|
|
○ A multi-functional and fully automated machine that can process wire cutting, two ends stripping, one end crimping, two ends crimping, and one end twisting

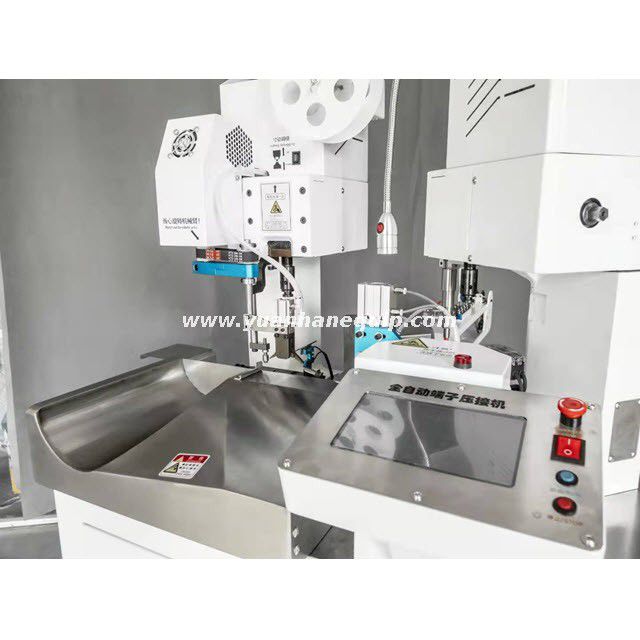

○ Advanced software and visual touch screen makes the machine easy to operate
○ Robust, durable and stable. The raw materials of this machine have been heat treated, blackened and hard oxidized

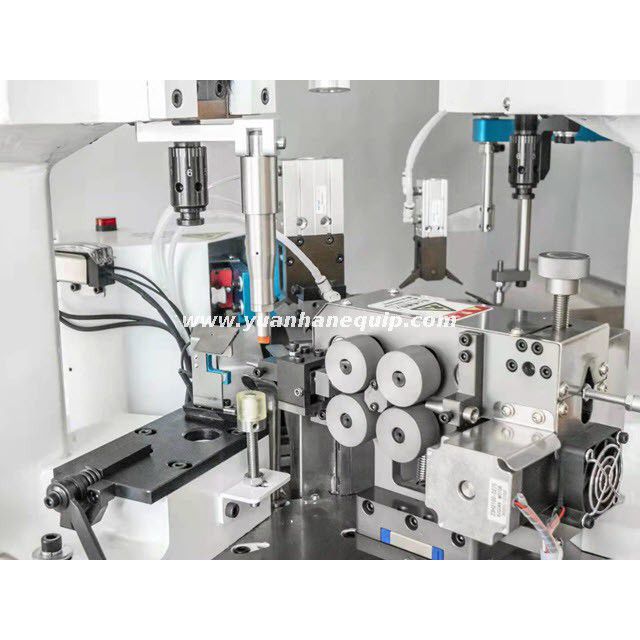

○ Using two motors to send wires, avoiding the problem of different lengths of wires and indentation of wires
○ Low noise and uniform force, can be equipped with horizontal and vertical applicators
Model |
YH-S01 |
YH-S02 |
YH-S03 |
YH-S04 |
YH-S05 |
YH-S06 |
Type |
General |
Two-wire |
Thin wire |
Gold pin |
Thick wire |
Parallel wire |
Features |
Wire cutting, two ends stripping, one end crimping, two ends crimping, one end twisting |
|||||
Machine capacity |
3800-6800 pieces / hour |
|||||
Wire cutting length |
45-9900mm (27mm can be customized) |
|||||
Wire stripping length |
0-10mm |
|||||
Suitable wire sizes |
AWG18#-30# |
AWG18-28# |
AWG20-32# |
AWG18-28# |
2.5 sq mm |
AWG18-28# |
Tool material |
Imported tungsten steel |
|||||
Pneumatic accessories |
Standard AirTAC |
|||||
Detection device |
Crimping detection, lack of wire detection, pressure detection, terminal detection |
|||||
Air pressure |
0.5-0.7MPA |
|||||
Power supply |
AC 220V |
|||||
Machine size |
800(L)*830(W)*1530(H)mm(Not including packing) |
|||||
Weight |
About 320KG |
