Fully Automatic Five-wire Two Ends Crimping Machine

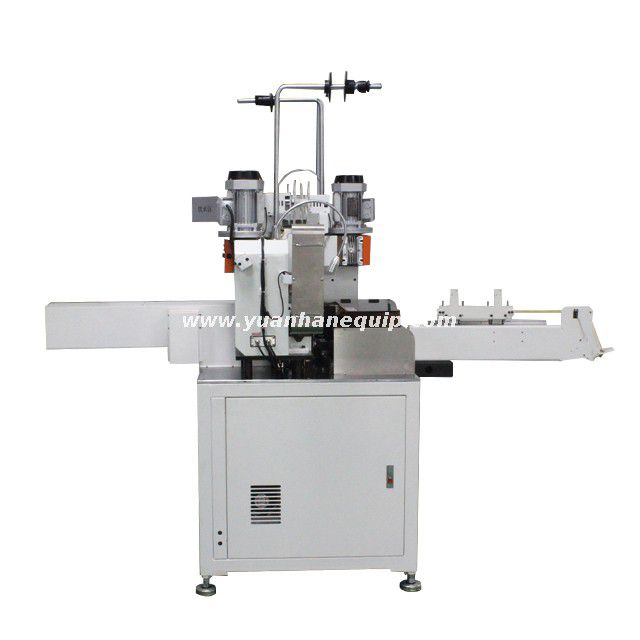

Fully Automatic Five-wire Two Ends Crimping Machine

This fully automatic five-wire processing machine is suitable for full stripping, half stripping and both sides crimping. Applicable wire: single wire, flat cable (below 12Pin, need to custom)

Model:	YH-01D
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

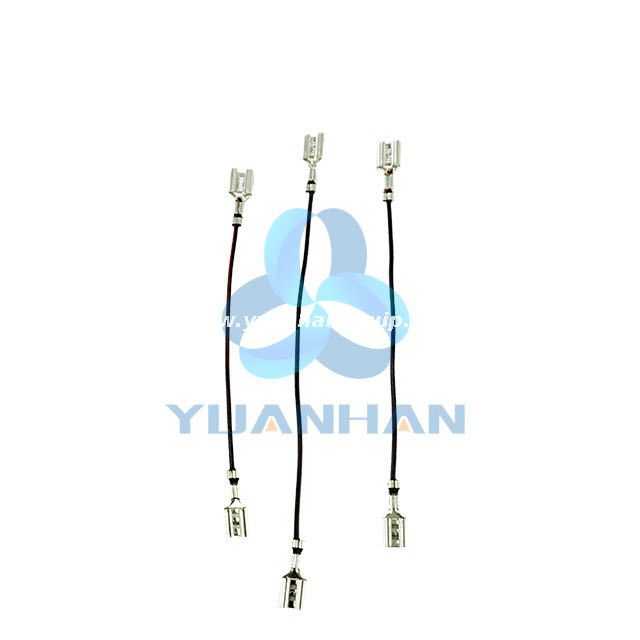

Applicable wire: single wire, flat cable (below 12Pin, need to custom)
Function: both ends crimping, full stripping, half stripping, detection
High configuration: Mitsubishi servo motor, Mitsubishi electronic positioning, SMC cylinder, THK track, Omron and Keyence sensor
Accurate wire outgoing with a tolerance of ± 0.1mm
Suitable for horizontal and straight OTP applicators

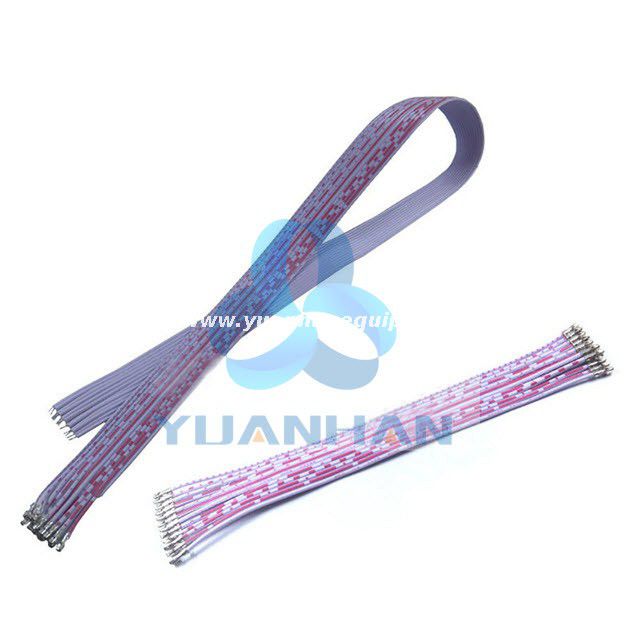

The flat cable can be rotated on both sides. One end is crimped firstly, and the other end is flipped on 180°, and then crimped
Stable operation, low defect rate, small parts loss, convenient maintenance, low failure rate, long life

Model	YH-01D
Applicable wire	single wire, flat cable (below 12Pin, need to be changed)
Function	both ends crimping, full stripping, half stripping, detection
Capacity	0.7 s/pcs (AWG#20-AWG#32, 40MM, both ends crimping)
Cutting length	10-600 mm (can be customized)
Speed	6000PCS/H (depending on wire)
Accuracy	deviation ± 0.1MM
Power supply	AC200V 50/60Hz
Air pressure	0.4MAP-0.5MAP
Detection	presence or absence of wires, abnormal crimping, insufficient air pressure
Stripping length	full stripping: 1-9MM; half stripping: 3-9MM
Crimping ability	mute terminal machine 19600N (2T)
Operation mode	six sets of Mitsubishi servo motor + LCD screen
Machine size	2270x1240x1900MM (with prominent position)
Machine weight	460KG
