Fully Automatic Multi-core Cable Crimping and Shrinkable Tubing Inserting Machine

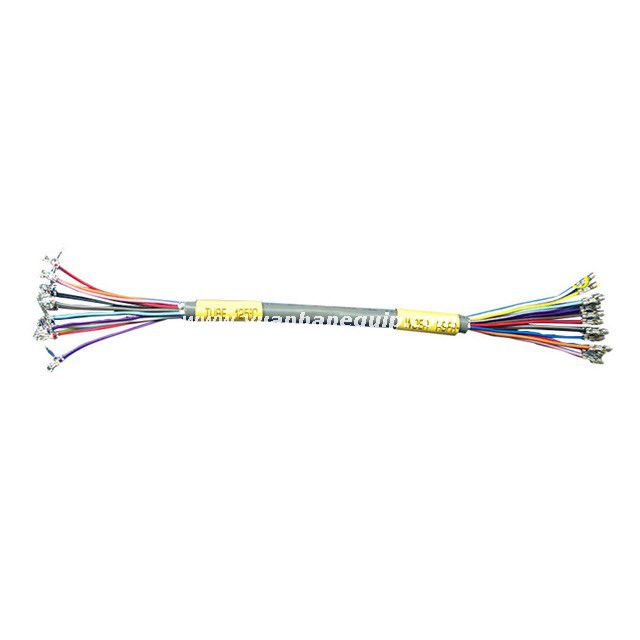

The fully automatic multi-core cable crimping and shrinkable tubing inserting machine is able to process wire cutting, inner core wire insulation & outer sheath stripping, shielding foil stripping, terminal crimping(2-20p) and heat-shrinkable sleeves inserting on both ends.

Model:
  • YH-172
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Fully automatic multi-core wire cutting

  • Fully automatic stripping inner core insulation and outer sheath on both ends

  • Fully automatic stripping shielding foil on both ends

  • Fully automatic double-head terminal crimping(2-20p)

  • Fully automatic inserting heat-shrinkable tubing on both ends of the cable

  • Self-contained wire straightening function, no need of wire prefeeder machine and long-distance conveyor belts

ModelYH-172
Applicable wires

inner core wires (2P-20P)

cable outer diameter: 3MM-6MM

PowerAC220V
Air pressure0.5-0.55MPA
Space occupation1.2 m2


×
