Fully Automatic One End Seal Insertion and Wire Lugs Crimping Machine

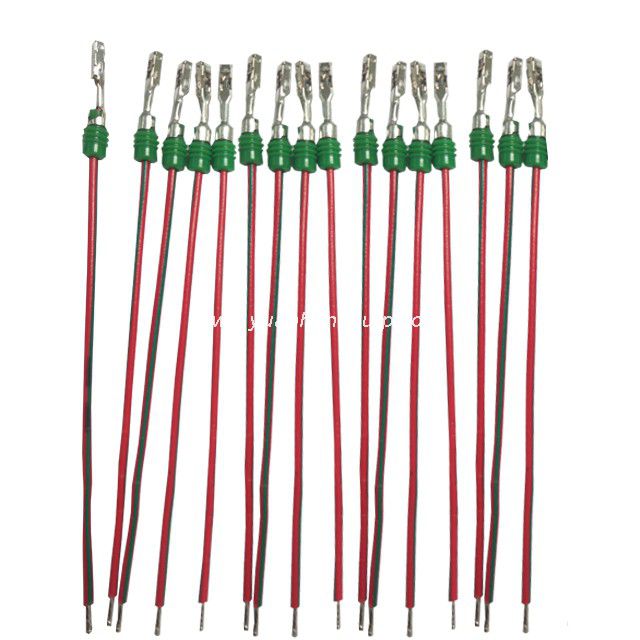

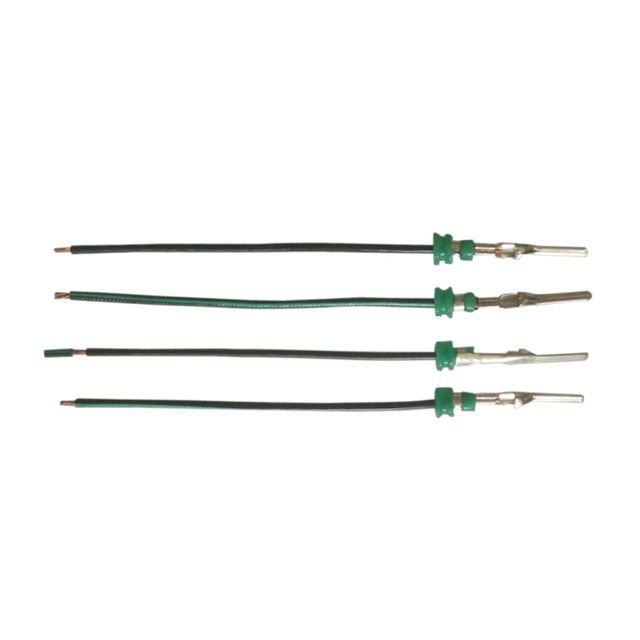

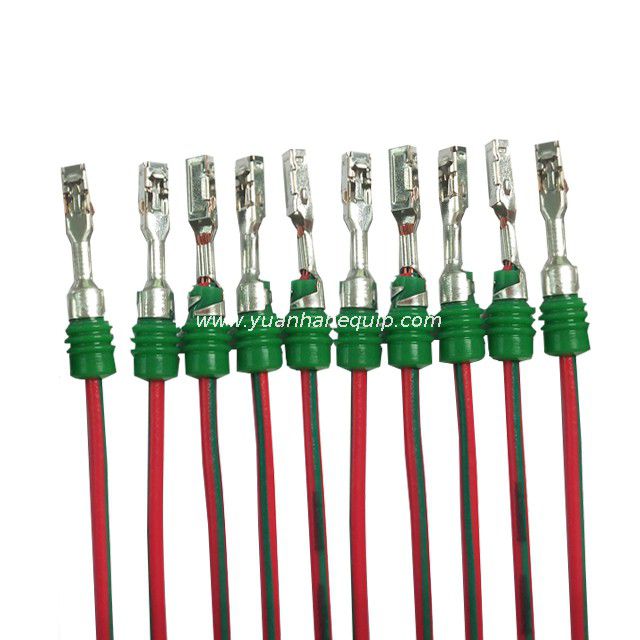

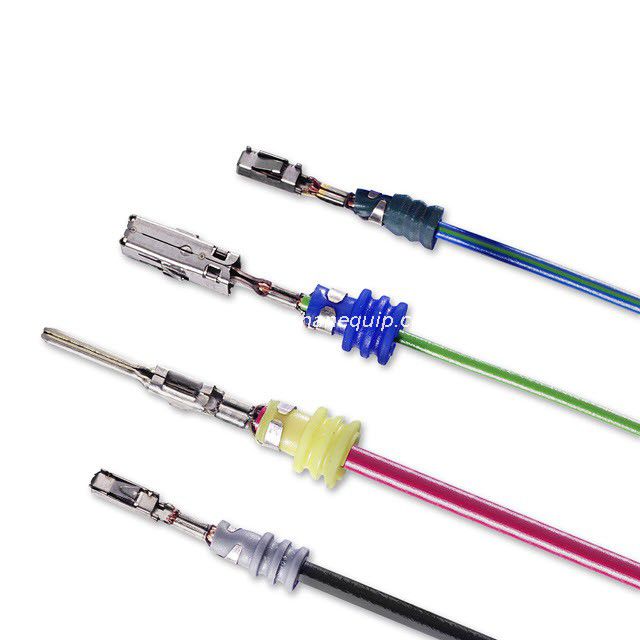

This is a fully automatic wire cutting, stripping, single end water seals loading and terminal crimping machine.

Model:
  • YH-DF01
Brand:
  • Yuanhan
Share to:
Features
Specifications

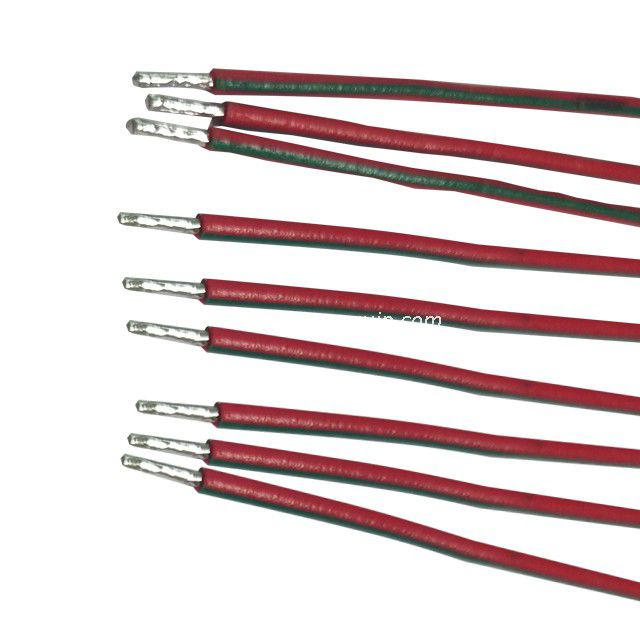

  • Wire cutting, single end stripping, two ends stripping, single end wire rubber seals inserting and wire connectors crimping

  • Compact design, excellent concept, space saving

  • Easy to use KINCO touch screen

  • Quickly change procedures and materials

  • Efficient stepper drive, high precision, fast speed

  • Easy maintenance

  • Cost-effective

  • Full digital debugging

ModelYH-DF01
Power supplyAC220V/50/60HZ (110V/60Hz optional)
Capacity3000 pieces/hour(Length within 100mm)
Wire sizeAWG#28-AWG#16
Cutting length50-9999 mm
Cutting toleranceRange of change: within 1mm + cut length x 0.2%
Stripping length1.5-10 mm
Crimping force2.0/3.0 Ton
Air pressure4-6kgf (use clean dry air)
Testing device

Whether lack of wire, whether lack of terminal crimping, wire rubber seals detect,

low pressure detect

Dimension700Wx800Lx1500H mm
Net weightAbout 348 KG





×
