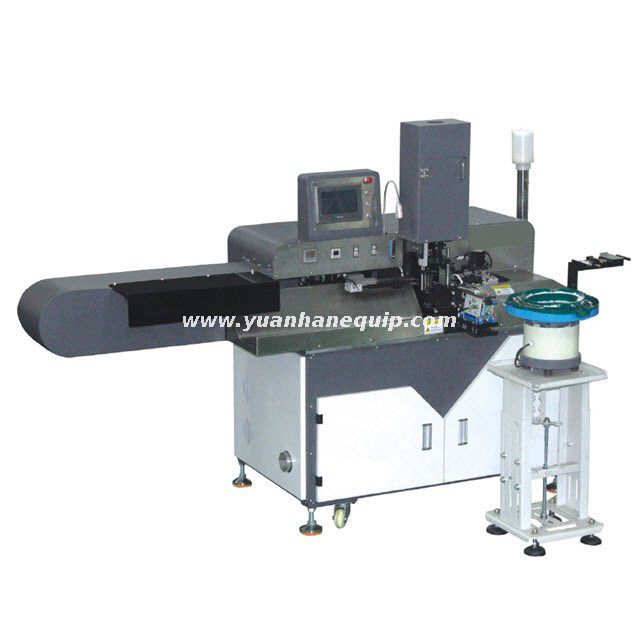

Fully Automatic Piercing Terminal Crimping Machine

The fully automatic piercing terminal crimping machine is able to process wire cutting, one end piercing crimping, the other end stripping, twisting & tinning simutaneously, and the wires in the same product can be processed to different lengths.

Model:
  • YH-1020A
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Adopts PLC control system and Mitsubishi servo motor to ensure high precision, high efficiency and high stability.

  • Cutting length, stripping length, puncture depth, and tin depth can all be set by touch screen.

  • All the faults of the machine are displayed on the touch screen, so that you can know the cause of the machine failure at a glance and quickly adjust the machine to the best condition.

ModelYH-1020A
VoltageVAC 220V/50Hz, 110V/60Hz
Functions

Wire cutting, one end piercing crimping, the other end stripping, twisting & tinning,

and the wires in the same product can be processed to different lengths

Spacing0.6mm-3.96mm
Stripping tolerance0.01mm
Tool value accuracy0.01mm
Wire cutting length10mm-800mm
Wire stripping length0mm-10mm
Efficiency700piece/hour (Based on actual wire terminal)
Weightabout 350kg
Dimensions235x100X160cm



×
