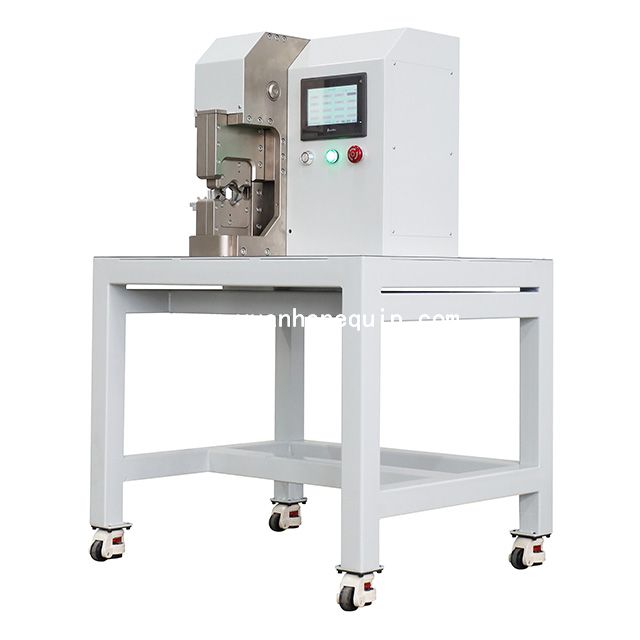

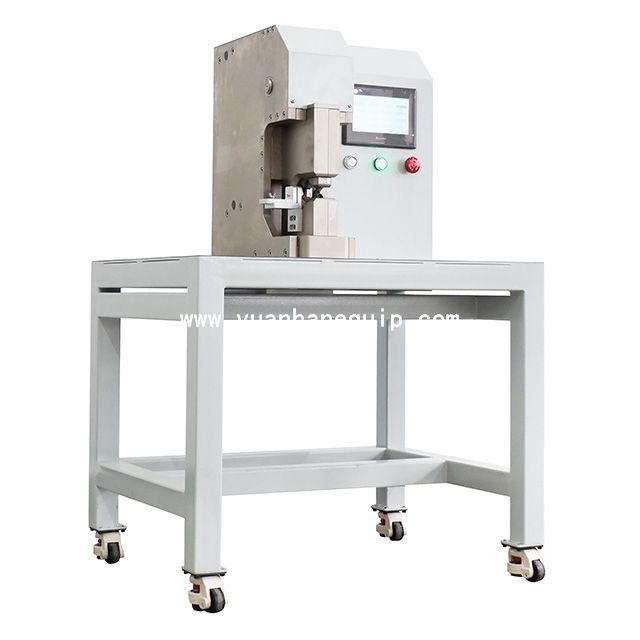

Hexagon Edge Cable Crimping Machine

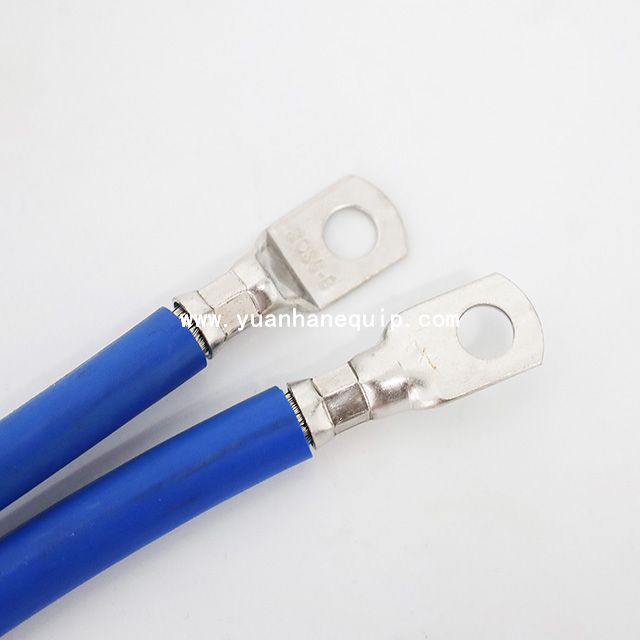

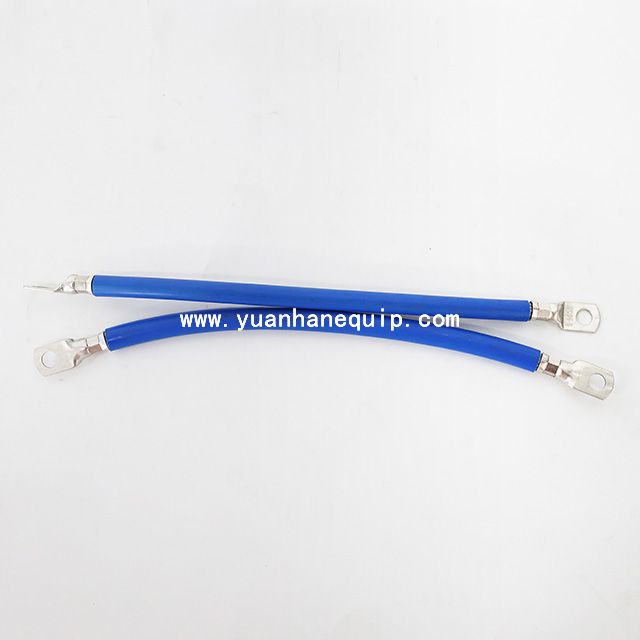

This hexagon edge cable crimping machine is suitable for crimping of non-standardized terminals and compression type terminals with no need to change die set. Applicable wire range: 10-120mm².

Model:
  • YH-6WC
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Suitable for non-standardized terminals and compression type terminals

  • No need to change die set, servo control system, high accuracy

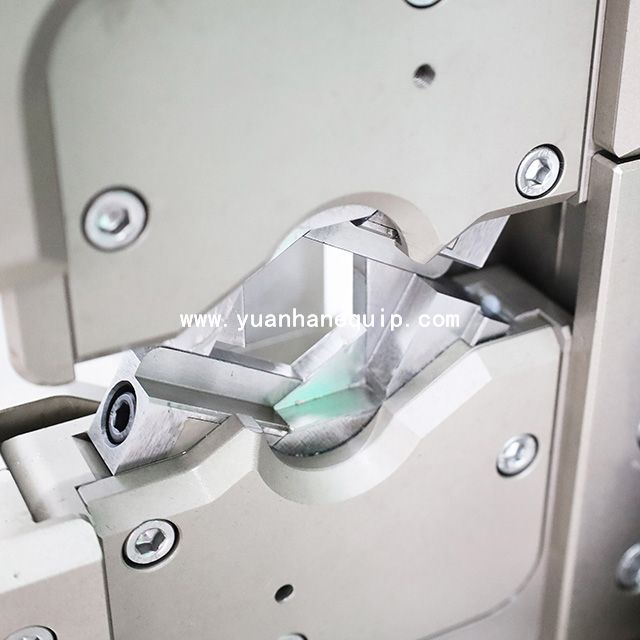

  • Separated crimping interface, suitable for intermediate junction, and new energy right angle terminal crimping

  • Position adjustment is possible, and the field of view is clearer

  • Compact structure, space saving and low noise

ModelYH-6WC
Wire range10-120mm²
Crimping force200KN
Max. diameter38mm
Crimping width12.5mm (Customizable)
Weight160kg
Dimension700×860×1260mm
Power220v50Hz
Motor2300w




×
