Hot Air Gun for Heat Shrink TubingHot Air Gun for Heat Shrink Tubing

The high power hot air gun is suitable for heating shrinkable tubes and heat shrinable films. It can be installed on the assembly line, and the temperature can be adjusted according to the requirements of the production process. The heat shrinkable time is short and suitable for any length of heat shrinkable tubing.It can work continuously for 24 hours without any interruption, and the power can be adjusted.It is especially suitable for heating Teflon heat shrinkable tubes with high temperature resistance, or large diameter shrinkage tubes and thick wall heat shrinkable tubes.

  • YH1200F-902
  • Yuanhan
Share to:

Single and double-sided heating

○ According to the heating requirements of the heat shrinkable tube, it is free to choose one side or two side heating.

The width of heating zone and the heating distance can be adjusted.

○ The heating width and the heating distance can be adjusted, which is adjusted by the users themselves to maximize energy conservation and ensure that the line is not hurt.

The temperature regulation of the heating machine (room temperature ~460℃) is precisely controlled by±1℃

○ The outlet is equipped with a temperature sensor, which can adjust the temperature according to the needs.The precision of temperature control is 1℃.

Term ordering detection function (preventing fan reversal)

○ This machine control system is equipped with motor item ordering sequence detection function.If the item ordering error,the item ordering warning indicator lights up.

Fan delay function

○ In order to protect the heating core and prolong the service life of the heating core, the machine has a time delay function of downtime and blow drying. After the machine stops working, the hair dryer will blow off for a minute before it can be shut down.

High heat exchange efficiency

○ Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.The heating core of the heater is designed to use the lower surface power density, and the heating temperature in the unit area is low, so the electric heat wire has a long service life.

Air flow regulating valve

○ The air inlet of the blower is equipped with a manual air volume regulating valve, and the air volume can be adjusted according to the needs.


○ It has overheating overload protection, power cut protection device, emergency stop switch, phase sequence protection, fully guarantee the safety of the equipment,do not produce exhaust gas, and meet the environmental protection,can keep operating 24 hours a day without stopping all year round.

Selection of assembly auxiliary conveyor

○ This machine is work in with auxiliary conveyors, and can be applied to heat shrinkable tubes with arbitrary specifications.

Model YH1200F-902

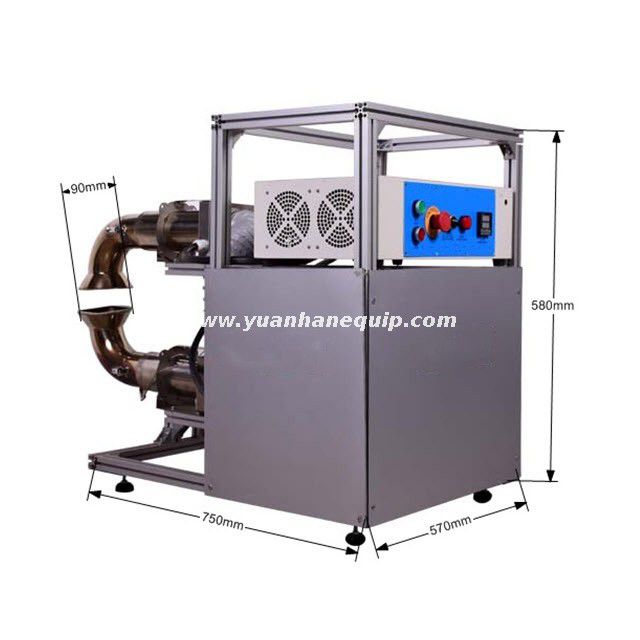

Size    Whole machine size See picture
Hot air exit 10~90mm adjustable (square)
Maximum heating width <90mm
Tuyere distance 10mm~120mm tunable
Fan Hair drier 200W
Maximum wind volume 380M3/H air volume adjustable
Temperature  Temp Accuracy Digital adjustment, accuracy of + 1℃
Temperature Range Room temperature ~ 460℃
Heating     Heating mode Hot air
Heating pipe power 6000W, 2 sets
Heating wire life 100,000 hours
Power supply Power demand 380V, 50HZ three-phase four wires
Power 12.3KW
Weight 25KG
