Kunshan Yuanhan Electronic Equipment Co., Ltd.

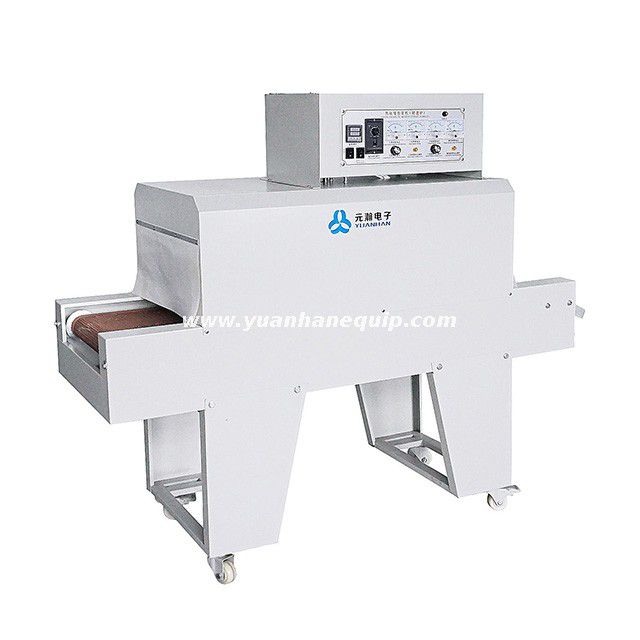

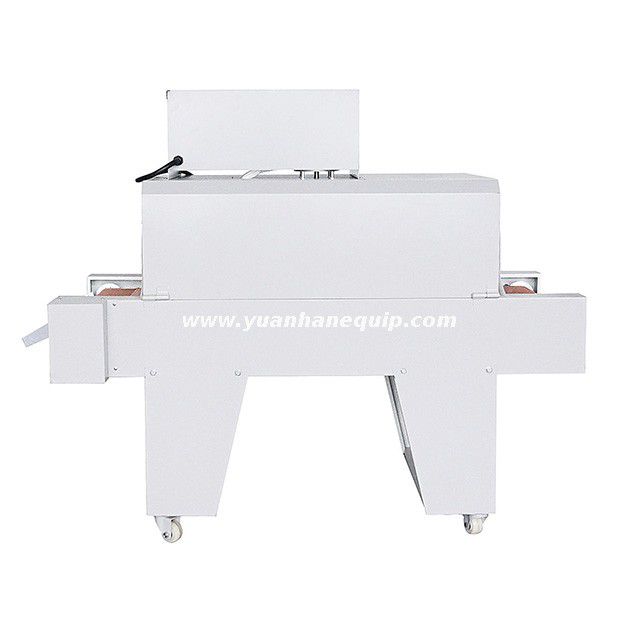

This infrared heat shrinkable tube heating machine is suitable for heating heat-shrinkable tube of wire harness processing enterprise. Working time and heating zone width can be adjusted according to production requirements. This infrared heating machine can work continuously for 24 hours without interruption.
The infrared heating machine is suitable for heating heat-shrinkable tube of wire harness processing enterprise.

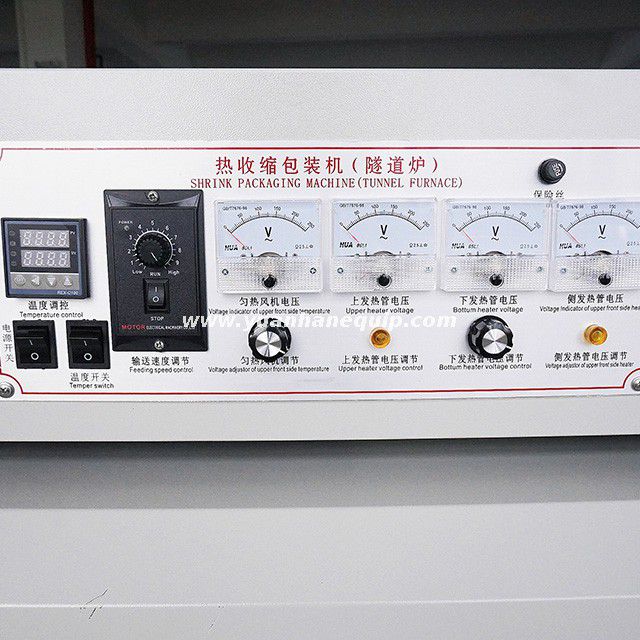

The heating time and the stopping time can be freely adjusted according to actual needs.
|Applicable product specifications||390*190*N (W*H*L)|
|Applicable materials||PVC, POF, PET, PP|
|Temperature control||0-300℃ (adjustable)|
|Voltage||380V (three-phase four-wire)|
|Shrinking furnace size||1000x400x200mm (LxWxH)|
|Machine size||1500x550x1270mm (LxWxH)|

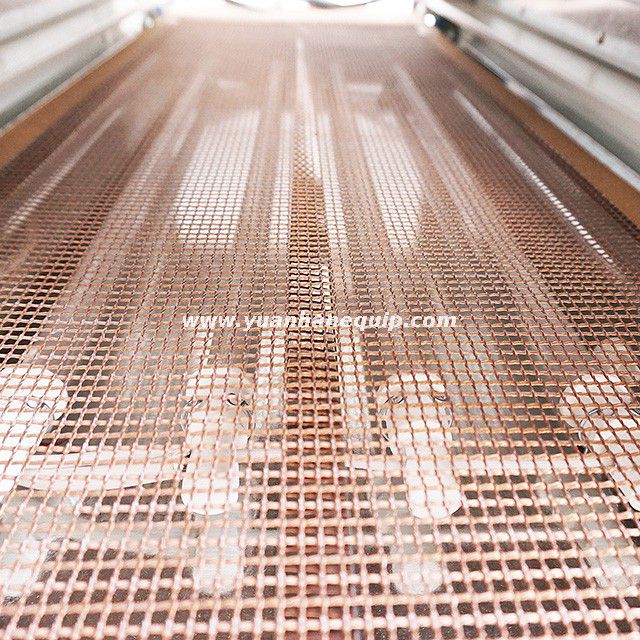

|Conveying mode||chain/L, net type/W (non-standard optional: Teflon/T, net-through chain type/WL)|
|Whole machine weight||90KG|
|Machine volume||1 cubic meter|
