Wiring Harness Heat Shrinkable Tube Heating MachineWiring Harness Heat Shrinkable Tube Heating Machine

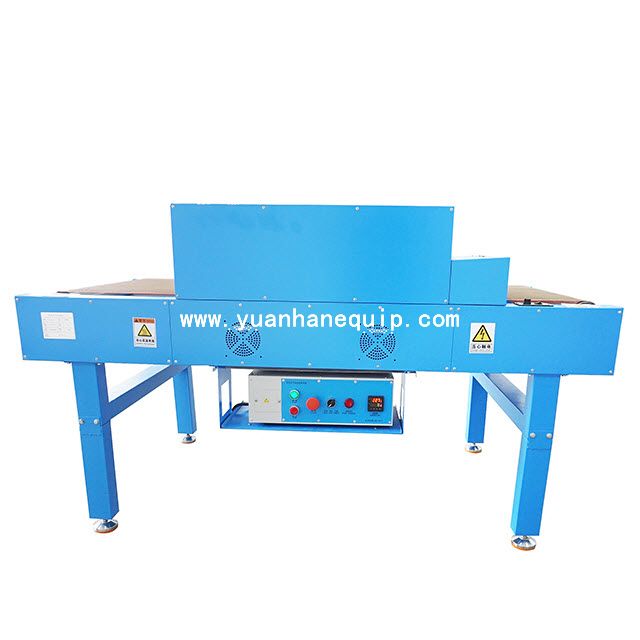

The YH650B-2 heat shrinkable tube heating machine (local heating does not damage the wiring harness) features double-sided heating, which can heat the shrinkable tube evenly. The heating temperature, conveying speed, and heating zone width are adjustable.

  • YH650B-2
  • Yuanhan
Share to:

○ Equipment composition

Heating machine + control system (optional auxiliary conveyor)

○ Double-sided heating temperature controllable

This machine has a digital electronic thermostat, which can control the temperature of the heating tube to ensure temperature balance. It can be operated continuously for 24 hours to ensure work efficiency.

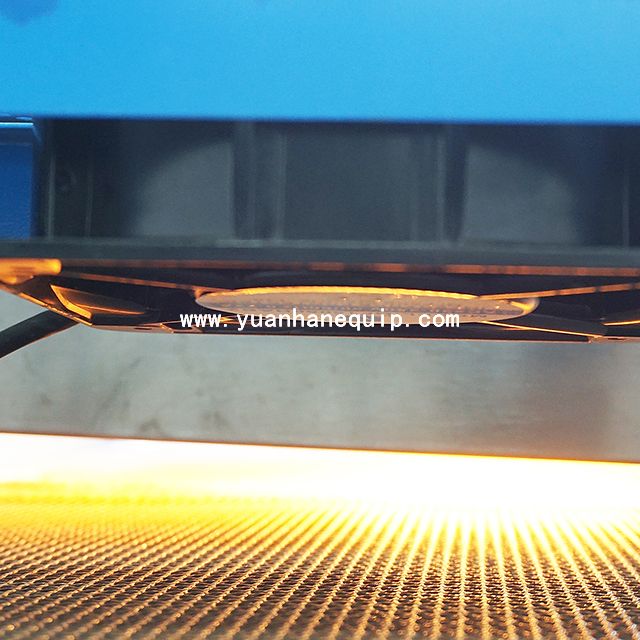

○ Double heating

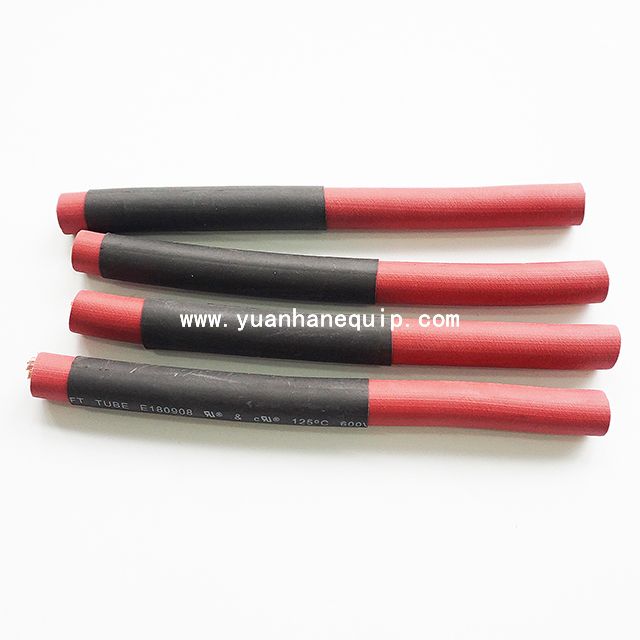

Even heating, suitable for processing large diameter or thick wall heat shrinkable tube.

○ Adjustable heating zone width

The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, which saves energy and does not damage the cable.

○ Heat insulation design of heating zone

The double design of the heating zone shell is filled with insulation materials to isolate the internal and external temperature, which saves energy and protects the working environment.

Model YH650B-2L YH650B-2M YH650B-2H
Basic parameters
Dimensions (LXWXH) (mm) 1800*860*1070 1800*860*1070 1800*860*1070
Outer packaging size (LXWXH) (mm) 1915*1015*960 1915*1015*960 1915*1015*960
Heating width (mm) <120 <120 <120
Conveying width (mm) <650 <650 <650
Temperature adjustment range °C <260 <260 <260
Temperature control error °C ±6 ±5 ±3
Net weight (KG) 100 103 103
Gross weight (KG) 169 172 172
Heating power (KW) <4 <4 <4
Conveying motor power (W) 40 40 40
Whole machine power (KW) <4.5 <4.5 <4.5
Noise (db) <53  <53  <53
Recommended wire harness parameter range
Wire diameter range (mm) <25 <25 <25
Shrinkable tubing length (mm) <120 <120 <120
