Heat Shrink Tubing HeaterHeat Shrink Tubing Heater

YH-450F-25 table type heat shrinkable tube heating machine is suitable for heat shrinkable tubes to be heated and contracted, and can be installed on the assembly line.The temperature can be adjusted according to the requirements of the production process, and the blowing time is short. It is suitable for any length of heat shrinkable tube. It can operate continuously for 24 hours and the power can be adjusted.

  • YH450F-25
  • Yuanhan
Share to:
  • Application

    Connection and contraction of PE heat shrinkable tube, PVC heat shrinkable tube and double wall heat shrinkable tube with glue.

    Heat shrinking of PVC pipe and rubber cap.

    Heat shrinking of capacitors, batteries, terminal wires, heat shrinkable sleeves / membranes


  • Power regulation

    The intelligent digital adjusts the temperature and adjusts the power.


  • Insulation

    Double insulation, strong machine shell makes the machine safe and reliable when used, and can work at high temperature for a long time.


  • Digital display temperature regulation

    The outlet is equipped with a temperature sensor which can adjust the temperature according to requirements. The maximum use temperature is 395 degrees centigrade.


  • High heat exchange efficiency

    Ingenious wind tunnel design, the air passes evenly through the spiral heating wire inside / outside, the heat exchange is nearly 100%, and the wind pressure loss is less.


  • Security

    Equipped with over heat overload protection and power off protection device, it fully ensures the safety of the equipment, does not produce exhaust gas, is environmentally friendly, and can operate continuously for 24 hours throughout the year.

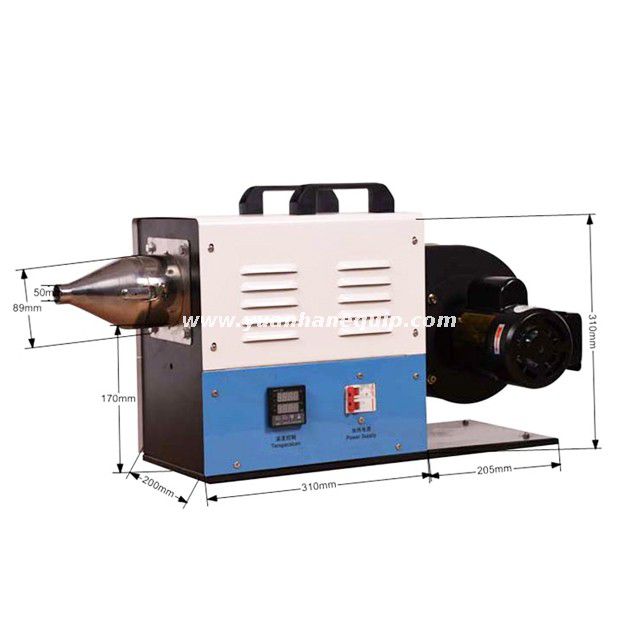

Overall machine size604*200*310MM
Air outletDiameter 50mm 25mm (optional)
Insulation layerTexture of materialDouble layer heat preservation
HeaterNameElectric hot wire
Heater power4.5KW (Power adjustable
Power regulationAdjust the voltage through a   potentiometer
Heating wire life100,000h
Maximum wind volume450M3/Hthe actual air volume is about 380M3/H
Air volume regulationManual wind valve
Static pressure445pa
TemperatureMaximum use temperature>380℃
Power demand<430℃
