Large Size Heat Shrinkable Tube Heating Gun

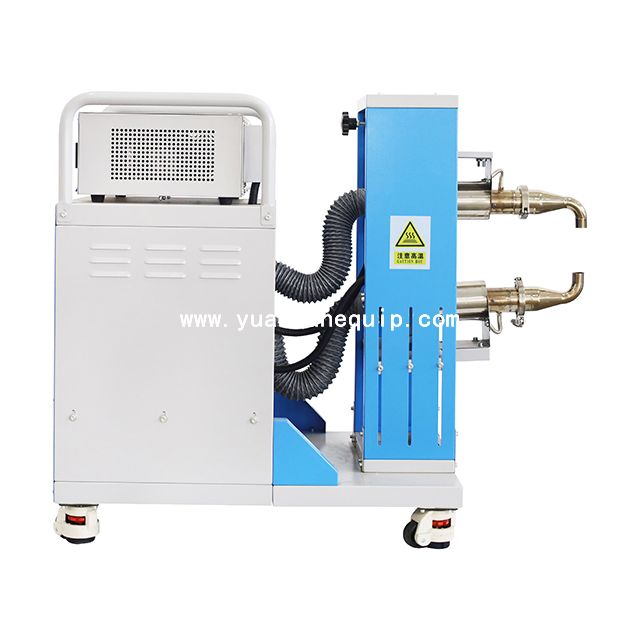

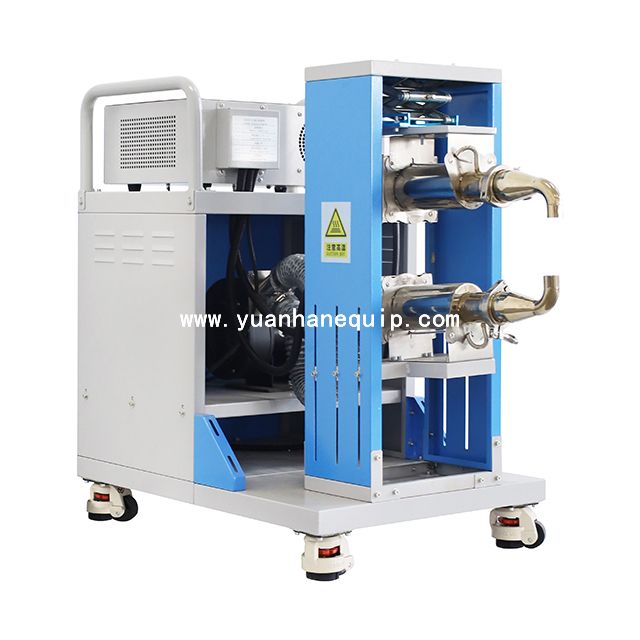

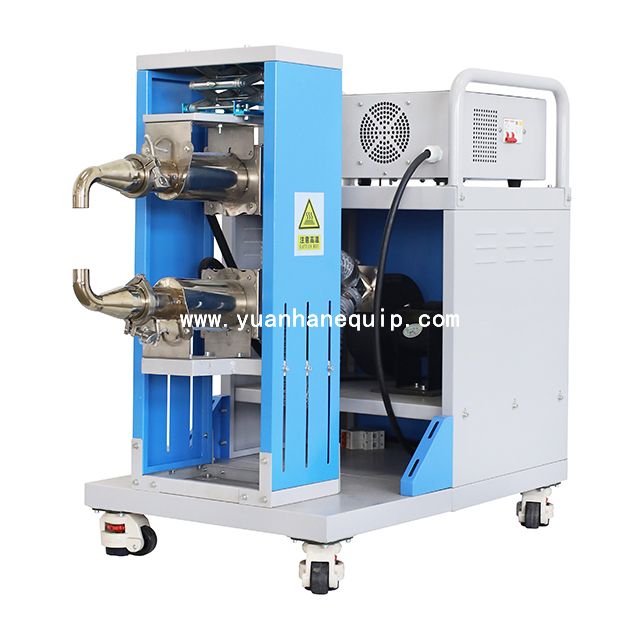

Large Size Heat Shrinkable Tube Heating Gun

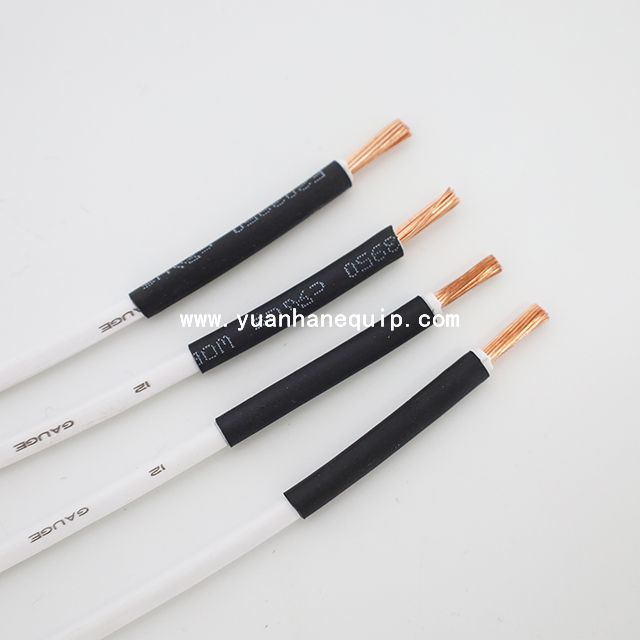

The double-outlet heat-shrinkable tube heating gun is suitable for heating large-diameter heat-shrinkable tubes and it can heat multiple heat shrinkable tubes simultaneously. Featuring one-time molding, uniform heating, high efficiency, durable and accurate temperature control, this machine can work continuously for 24 hours without interruption, especially suitable for large-scale industrial production installed on the assembly line.

Model:	YH400F-252W
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

Power Regulation

The temperature is controlled by PID/SSR, the control precision is high, the reflection is sensitive, and the output is stable.
Heat Insulation

Multi-fiber insulation cotton insulation, the solid casing is safe and reliable, and can maintain high temperature work for a long time.
Temperature Control System

Intelligent digital display temperature adjustment, the air outlet is equipped with a temperature sensor, and the temperature can be adjusted as needed. The temperature is accurately controlled to ±2 °C, and the working temperature is 395 °C.
High Heat Exchange Efficiency

Ingenious wind tunnel design, the air passes evenly from the inside/outside of the spiral heating wire, the heat exchange is nearly 100%, the wind pressure loss is less, and the flow rate is less.
Safety

It is equipped with overheating overload protection and power-off protection device to ensure the safety of the equipment, no waste gas, environmental protection, and can be operated 24 hours a day.

Model	YH400F-252W
Air outlet size	Diameter 50mm 25mm (round air outlet, optional)
Insulation material	Double insulation cotton
Heater name	Heating wire
Heater power	2 × 2KW (power adjustable)
Heater power adjustment	Intelligent temperature regulation
Heating wire life	100,000 hours
Temperature table	Digital control
Temperature control accuracy	±2°C
Blower	50W
Air volume	198M3/H, the actual air volume is about 98M3/H
Blower static pressure	198pa
Number of hot air outlets	2
Air outlet direction	Pair blowing (arbitrary adjustment of tuy distance)
Air volume rises	350 ° C
Bearing temperature	<395°C
Power demand	220V
Machine power	4100W
Machine weight	15KG
Safety level	Ground wire
