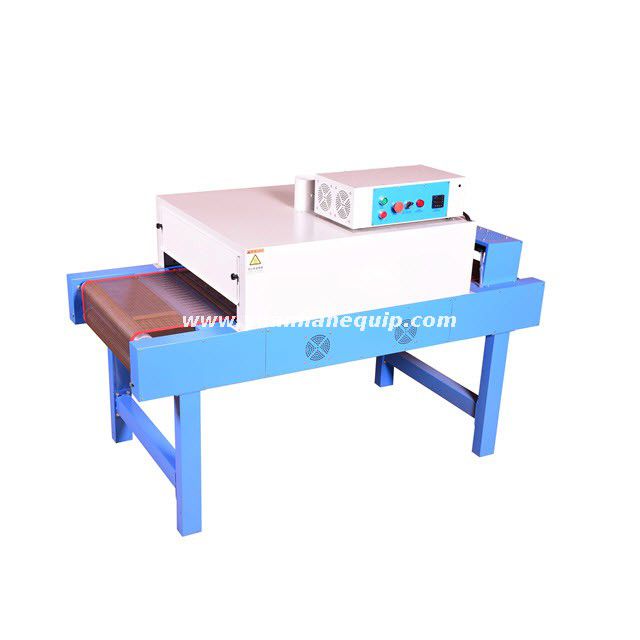

Double-side Heat Shrinkable Tube HeaterDouble-side Heat Shrinkable Tube Heater

The intelligent temperature-adjusting double-sided heat-shrinkable tube heating machine is suitable for heating shrinkage of heat-shrinkable tube in wire harness processing enterprise. It can adjust the temperature according to the requirements of the production process, and the contraction time is short. It can shrink any length, and work continuously for 24 hours without interruption. There are omnidirectional reflective thermal materials, so that the heat shrinkable tube is heated evenly.

  • YH650A-2
  • Yuanhan
Share to:

Equipment composition

○ Equipment bracket + conveying system + heating system + cooling system + control system

Heat insulation design of heating zone

○ The shell of the heating area is designed with double layer heat insulation, which makes the inside and outside temperature separate, that is to save energy and protect the working environment.

Omni-directional heat reflecting inner wall

○ The heat reflecting inner wall in the heating box ensures the uniform heating effect of the heating.

Adjustable import and export height

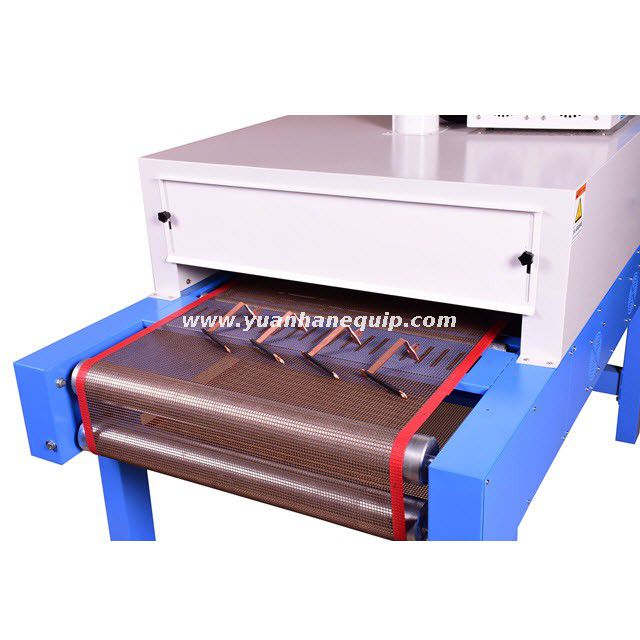

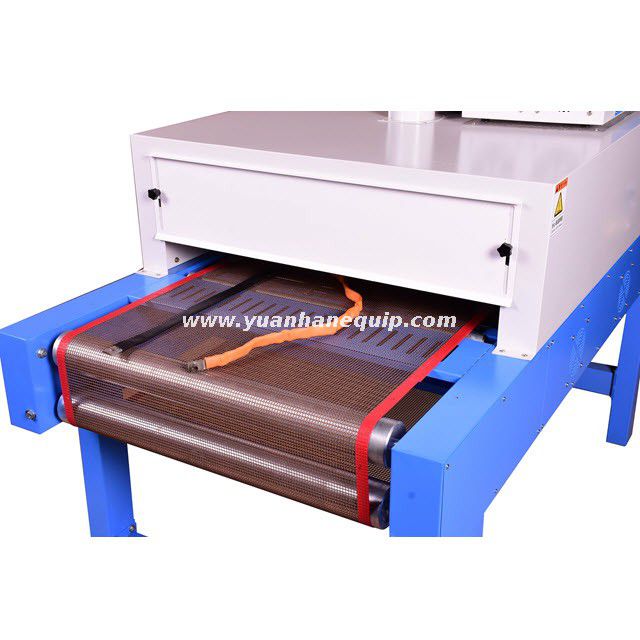

○ The conveyor belt heating box is completely closed, the input and output end of the heating box has a sliding door that can rise and fall, effectively prevent the heat source from leakage, protect the working environment, energy conservation, and increase the machine's ability to use one machine in many different jobs.

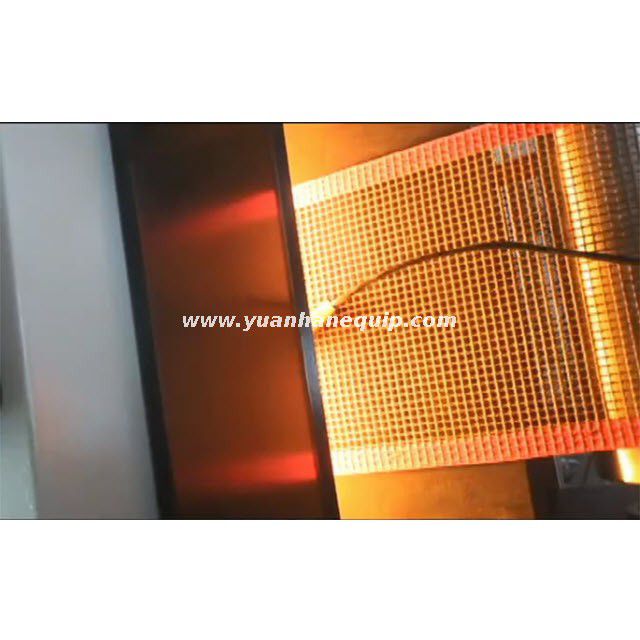

Adjustable infrared heating pipe height

○ The infrared heating tube can adjust the height quickly. Ensure repeatability of distance between light source and conveyor belt.

Detachable brackets

○ The bracket of the equipment can be disassembled freely, which increases the adaptability and mobility of the equipment.

Cooling system

○ The outlet is equipped with a cooling fan to cool the heated shrink tube

Model YH650A-2
Size Overall machine size (L×W×H)


 (Containing the air duct and motor)

Conveyor (L×W×H) 1800×650×1150mm
Heating area (L×W) 1000×650mm
Outer packing size 1890×950×730
Belt width 400mm
Maximum transmission width 450mm
Maximum transmission height 100mm (Adjustable)
Conveyor belt Material quality Teflon
Speed 1~5m/min
The power of motor 90W (Stepless speed regulation)
Heating pipe Heating pipe name Infrared heating tube
Heating pipe power 500W*16
Power Supply Power demand 380V
Power 8400W
