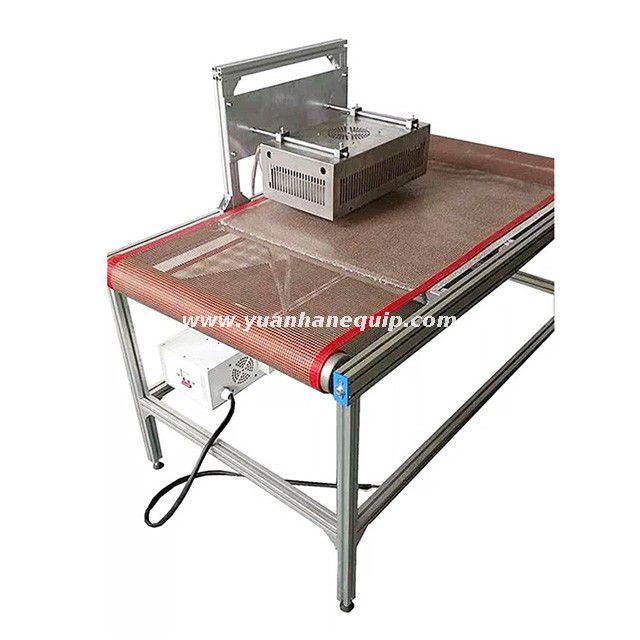

Precise Heat-shrinkable Tube Heating Machine

Precise Heat-shrinkable Tube Heating Machine

This precise heat-shrinkable tube heating equipment is designed for mass production. It can work 24 hours continuously, and process special products. The use of the heating machine and the conveyor can realize the accurate heating of the heat-shrinkable tube without hurting the wire. By manual adjustment, the speed of conveyor belt can be kept even. The vertical distance and parallel distance from the heating port to the conveyor belt can be adjusted, which is suitable for heating heat-shrinkable tubes of different sizes. This machine is suitable for users who require precise heating of wire harness, as well as for heating high-temperature resistant teflon heat-shrinkable tube.

Model:	YH-6020
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

Single side heating

Suitable for processing heating shrinkable tubing on thin wires

Heating position can be adjusted, accurate heating without hurting the wire

The vertical distance and parallel distance from the heating port to the conveyor belt can be adjusted, which is suitable for heating heat-shrinkable tubes of different sizes.

Thermal insulation properties

Double-layer insulation, sturdy casing, safe and reliable, can maintain high temperature work for a long time.

Digital display

Digital menu, easy to operate, display temperature in real time

Temperature control system (room temperature-200 °C)

The digital stepless mediation method is used to control the power output and the temperature. The output is stable, and the temperature control accuracy is ±2 °C.

Security

It is equipped with overheating overload protection and power-off protection device. It does not generate exhaust gas and is environmentally friendly. It can work 24 hours continuously.

Optional auxiliary conveyor

This machine is equipped with an auxiliary conveyor, which can be used for heating wire harness of different sizes.

Model	YH-6020
Size	Auxiliary conveyor（L×W×H）	1250770260mm
	Maximum processing harness diameter	<18mm
	Maximum heating sleeve length	<150mm
	Heating zone	300mm
	Cooling zone	200mm
	Maximum conveying width	600mm
	Maximum conveying height	<90mm
Conveyor Belt	Material	Teflon
	Speed	1-5m/min
	Conveying motor power	25W (stepless speed regulation)
Heating	Heating method	radiation
	Heating tube power	1800W
Power	Power supply	220V, two-phase three-wire, 50HZ
	Machine power	2KW
