Kunshan Yuanhan Electronic Equipment Co., Ltd.

Hydraulic Wire Crimping MachineHydraulic Wire Crimping Machine

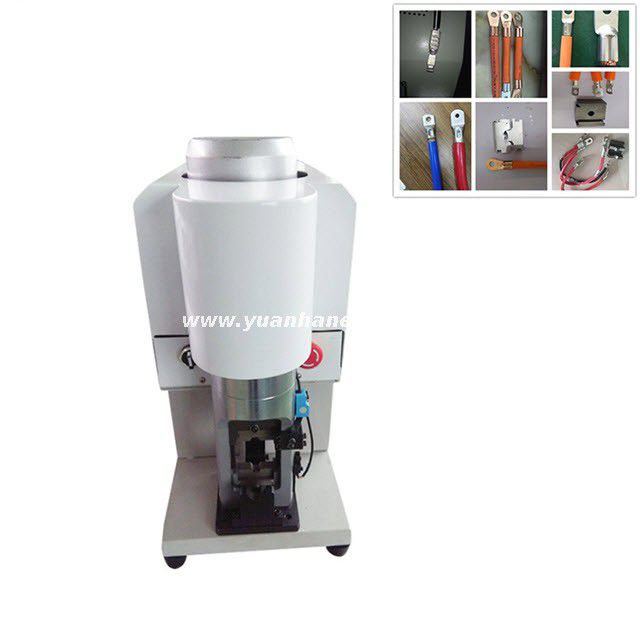

This hydraulic wire crimping machine crimps 1-300mm2 copper and aluminum wires using steel crimping dies. It is suitable for crimping big cables, like new energy cables, soft cables, charging pile cables, high and low voltage distribution cabinets cables, etc.

Model:
  • YH-30T
Brand:
  • Yuanhan
Share to:
Features
Specifications

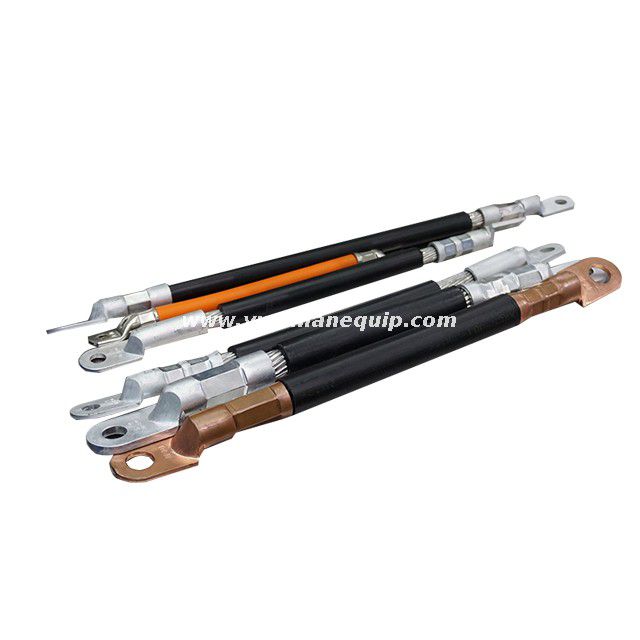

  • Suitable for crimping big cables, like new energy cables, soft cables, charging pile cables, high and low voltage distribution cabinets cables, etc.

  • Low voice, compact size and space-saving, suitable for workshop.

  • Power Consumption: 0.75Kw/H, economic and energy-saving.

  • Operation Method: jog up and down/ semi-automatic/automatic.

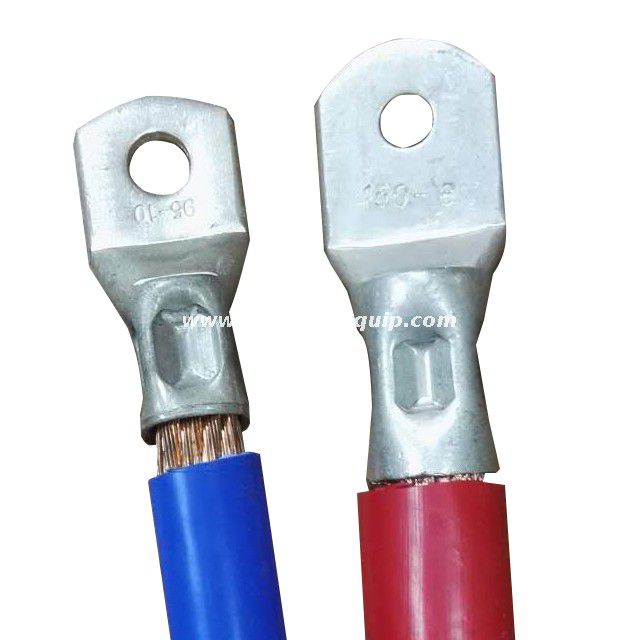

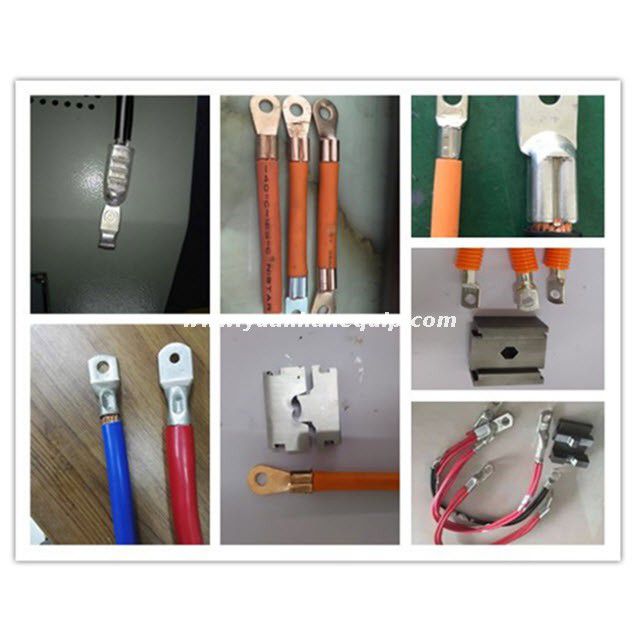

  • Application: 1-300mm2, suitable for B mouth and hexagon terminals

  • The stroke is adjustable and the crimping is stable.

ModelYH-30T
Output pressure30Ton
Application cable size1-300mm2
Dimension600*280*600mm
Power supplyAC 220V/50Hz-60Hz
Stroke50mm (adjustable)
Control methodHydraulic electric
Weight75kg



×
