Kunshan Yuanhan Electronic Equipment Co., Ltd.

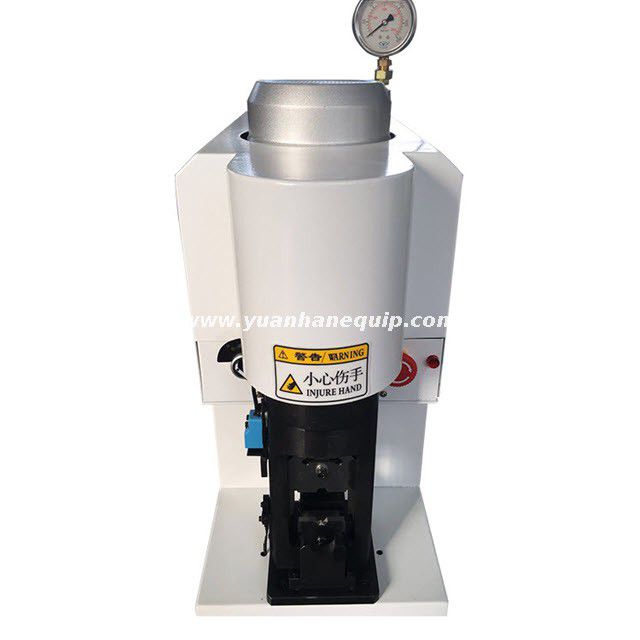

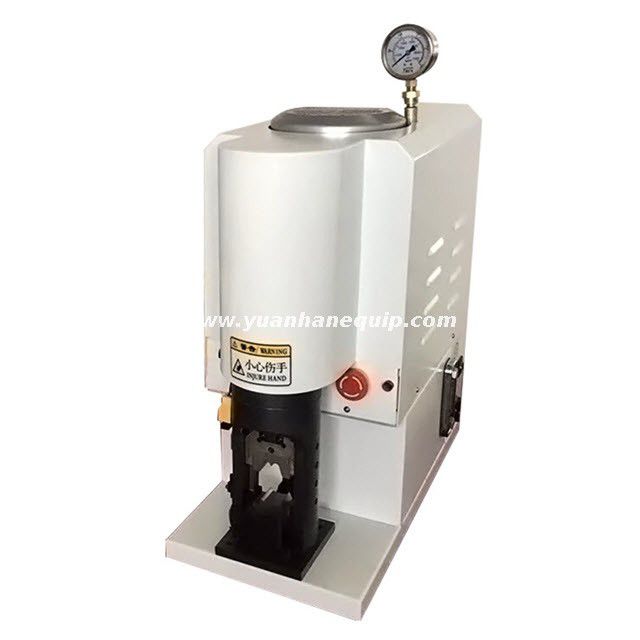

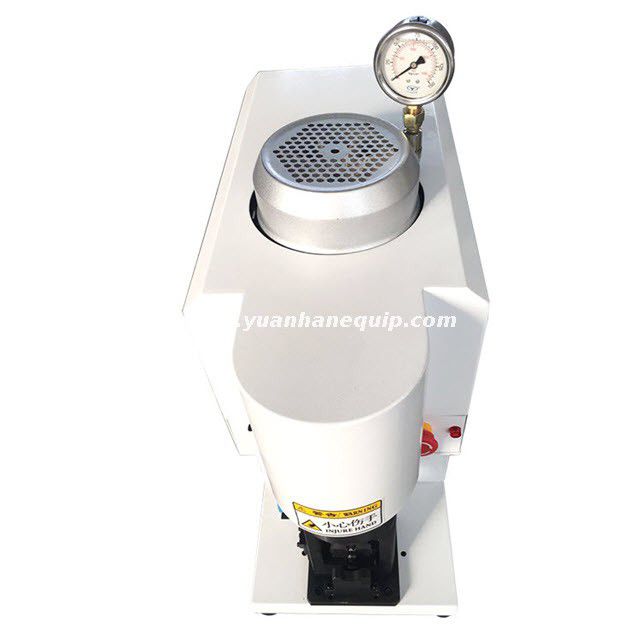

Hydraulic Wire Terminal Crimping Machine

This hydraulic wire terminal crimping machine is able to crimp terminals to wires ranging from 1-300 square mm. It is suitable for B mouth and hexagon terminals crimping.

Model:
  • YH-40T
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Crimp terminals to wires ranging from 1-300 square mm

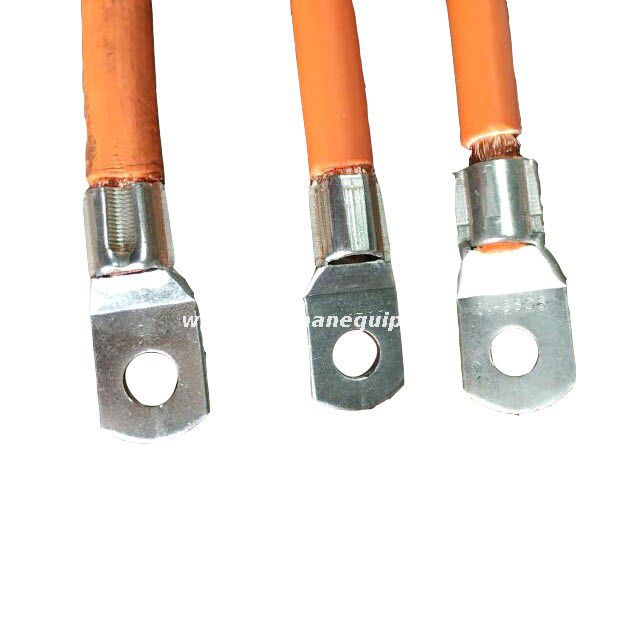

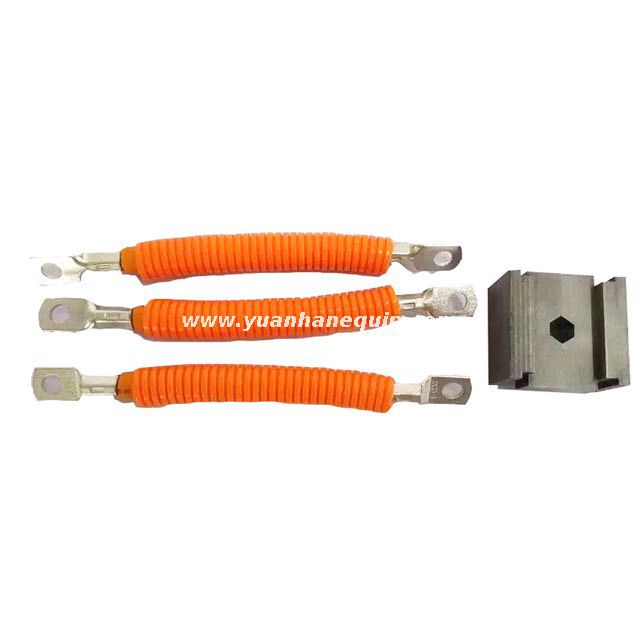

  • Suitable for B mouth and hexagon terminals crimping

  • Appearance: compact size, space-saving, suitable for workshop

  • Weight: 75kg, easy to move

  • Voice: low noise

  • Power Consumption: 0.75Kw/H, economic and energy-saving

  • Operation Method: jog up and down/semi-automatic/automatic

  • Application: 1-300mm2, B mouth and hexagon terminal

  • Exuberant output, stroke adjustable, stable crimping

ModelYH-40T
Output pressure
40 Ton
Applicable cable size1-300mm2
Dimension600*280*600mm
Power supplyAC 220V/50Hz-60Hz
Stroke50mm (adjustable)
Control methodHydraulic electric
Weight 75KG





×
