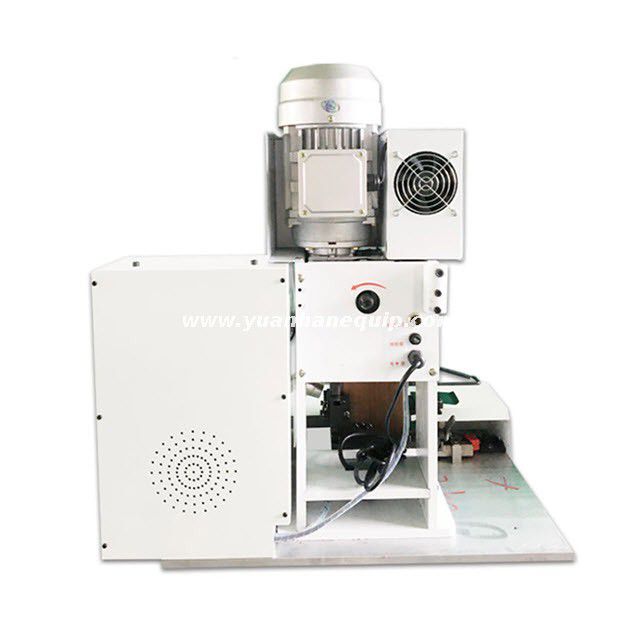

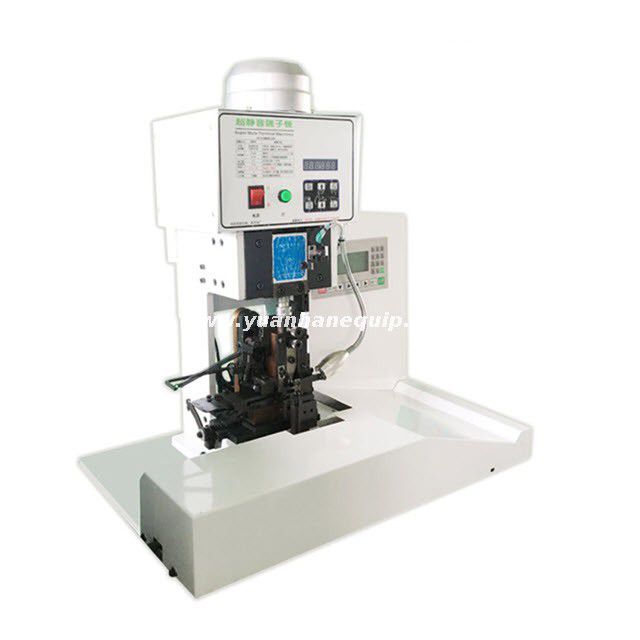

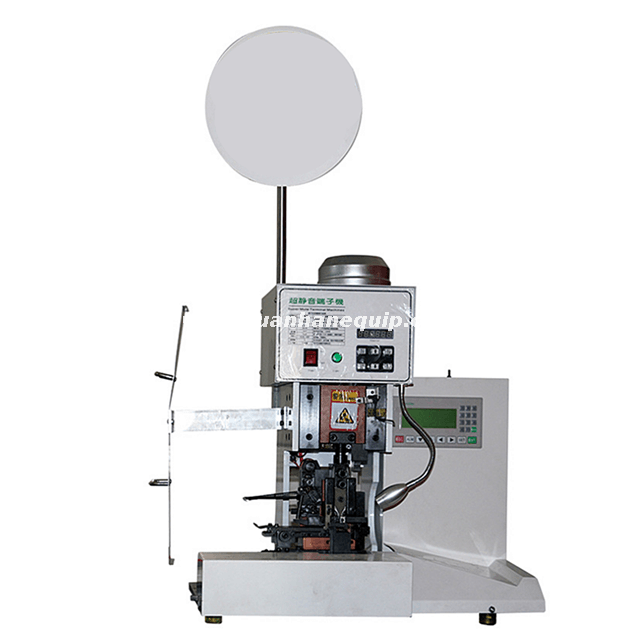

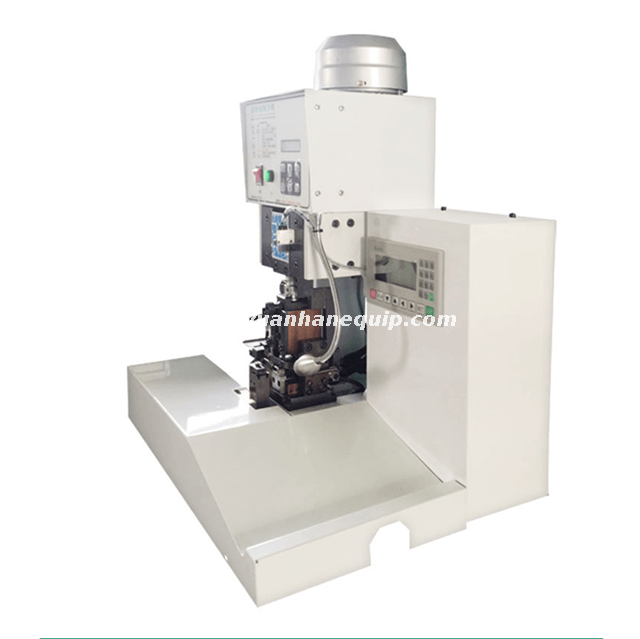

IDC/IDE Flat Ribbon Cable Single Head Crimping Machine

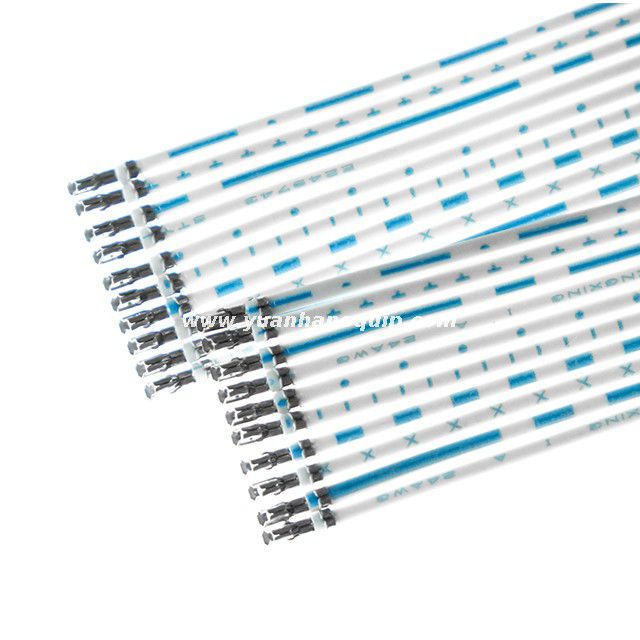

This semi automatic crimping machine is suitable for continuous single-end terminal crimping for flat cables. Applicable terminals: PH, EH, XH, SM, VH, ZH, DuPont terminals, etc. Capacity: 10,000 pcs/hour.

Model:
  • YH-DP01
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: flat cable one-side terminal crimping

  • Suitable for crimping PH, EH, XH, SM, VH, ZH, DuPont terminals, etc.

  • OTP transverse mold can be replaced at will, easy to operate

  • The terminals are pressed neatly with good consistency and stable quality

  • Adopting high precision inverter, SMC pneumatic components, and PLC control system

  • Using stepper motor, the crimping pressure is accurate, ensuring continuous performance

  • High efficiency: up to 10K pcs/hour

ModelYH-DP01
Function Single end crimping
Power supplyAC220V, 50/60Hz
Power750W
Wire size1~3mm
Standard P number2P-20P
Split line length≥45mm
Crimp force 2.0T
Dimensions600*400*650mm
Weight65KG


×
