Kunshan Yuanhan Electronic Equipment Co., Ltd.

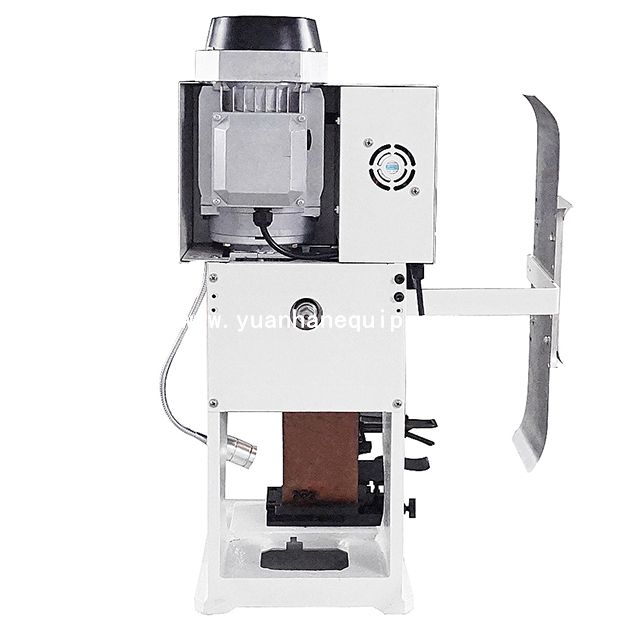

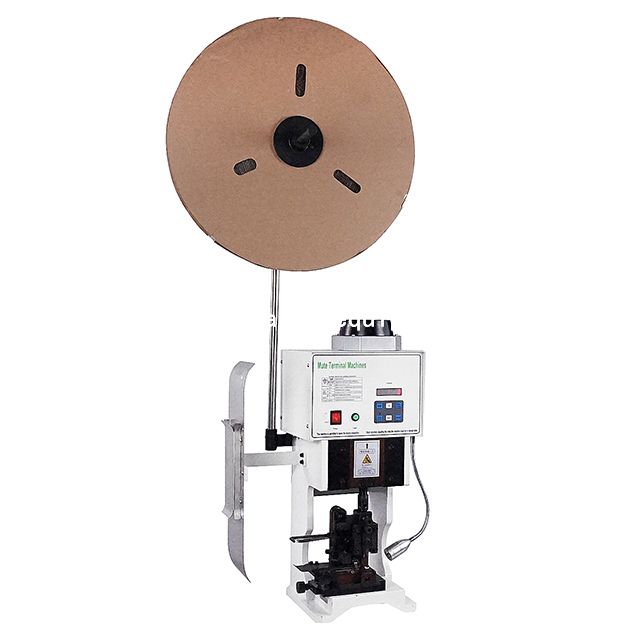

The semi-auto mute terminal crimping machine is suitable for crimping computer terminal, DC terminal, AC terminal, single grain terminal, and joint terminal. It is compatible with vertical and horizontal molds, and one machine is suitable for all terminal types by replacing the crimping molds.
Model:
|
|
Brand:
|
|
Easy to change molds, fast and time saving
Stable voltage, fast speed, high accuracy, low noise

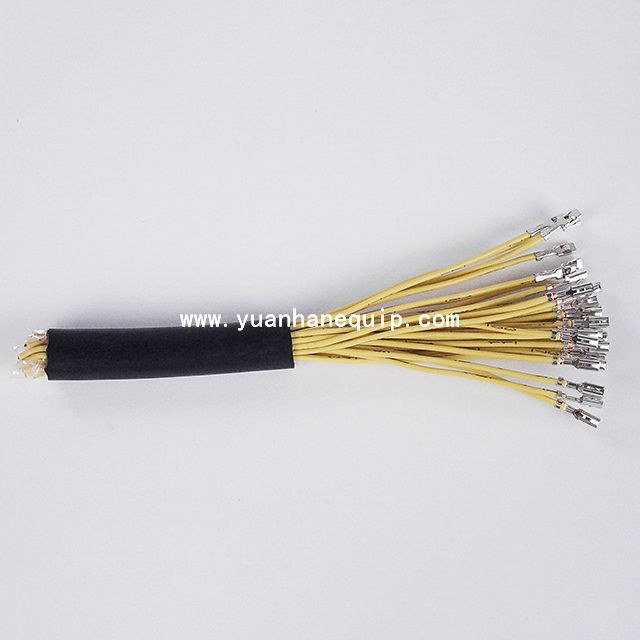

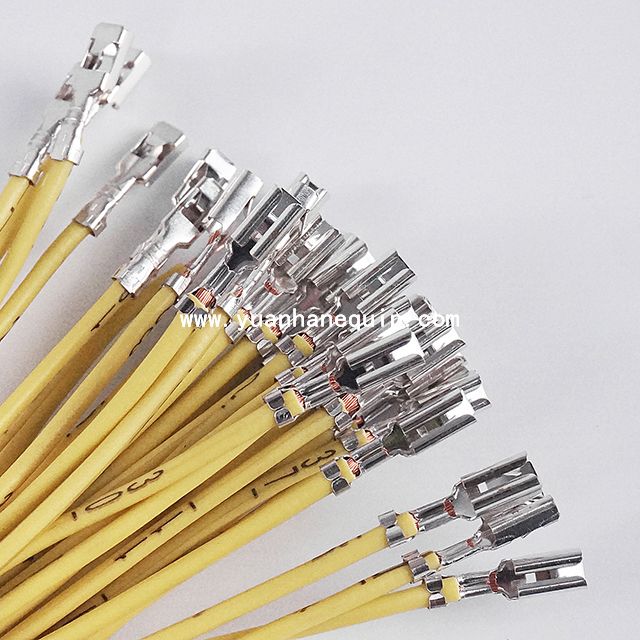

Suitable for crimping computer terminal, DC terminal, AC terminal, single grain terminal, and joint terminal
Suitable for OTP transverse mode, OTP positive mode, OTP reverse mode, and 2000# mold
Work times can be adjusted to 1-20 times, and the working interval can be adjusted as well
Model | YH-1.5T | YH-2.0T | YH-3.0T | YH-4.0T | YH-8.0T |
Output | 1.5Ton | 2.0Ton | 3.0Ton | 4.0Ton | 8.0Ton |
Nominal Pressure | 1500KG | 2000KG | 3000KG | 4000KG | 8000KG |
Frequency Power | 550W | 750W | 1100W | 2200W | 3000W |
Motor Power | 550W | 750W | 1100W | 1500W | 3000W |
Stroke | 30mm (40mm is customizable) | ||||
Power Supply | 220V/50Hz, 110V/60Hz | ||||
Net Weight (KG) | 38 | 55 | 55 | 96 | 169 |
Dimensions (MM) | 220*250*600 | 240*270*650 | 270*260*640 | 310*210*750 | 380*310*850 |
