Multi-core Cable Stripping and Crimping MachineMulti-core Cable Stripping and Crimping Machine

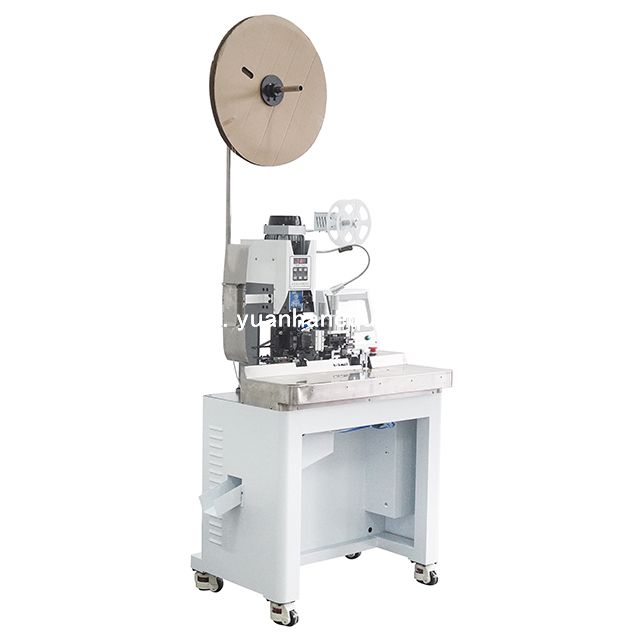

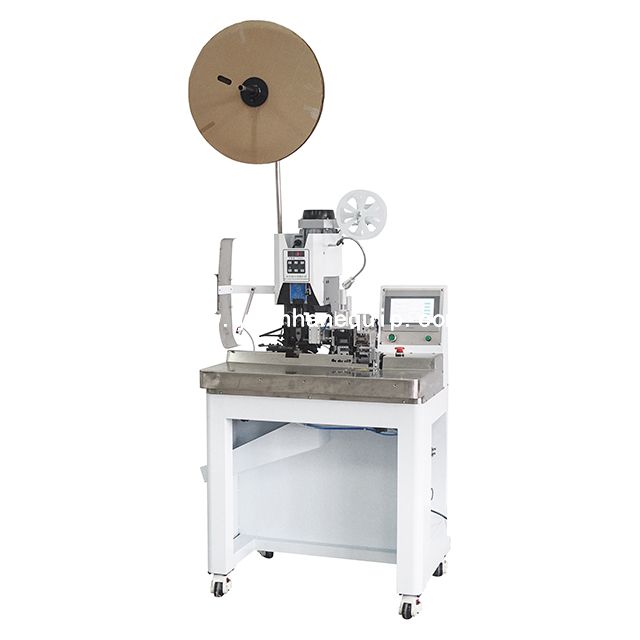

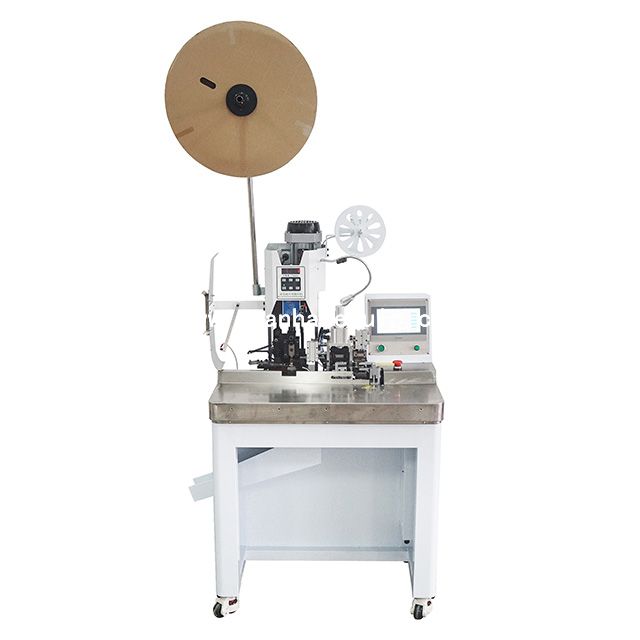

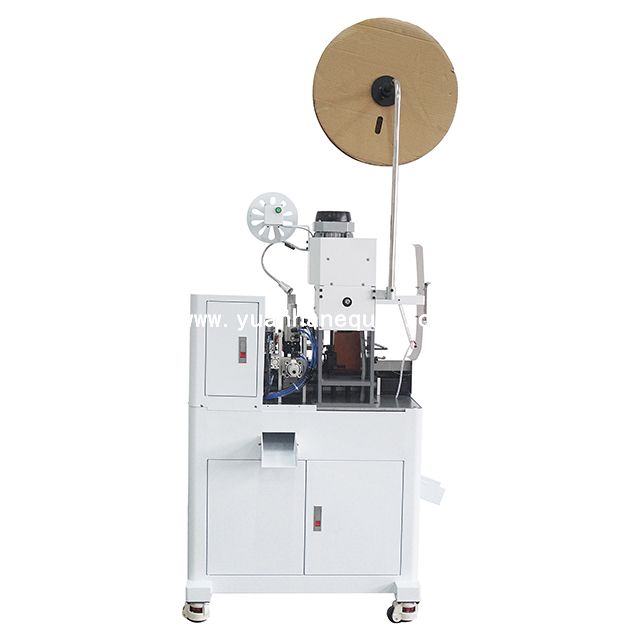

The multi-core cable stripping and ferrules crimping machine is especially designed for processing the core wires of multi-conductor sheathed cables. The outside jacket should be pre-stripped before using this machine.

Model:
  • YH-DX228/YH-68210C
Brand:
  • Yuanhan
Share to:
Features
Specifications

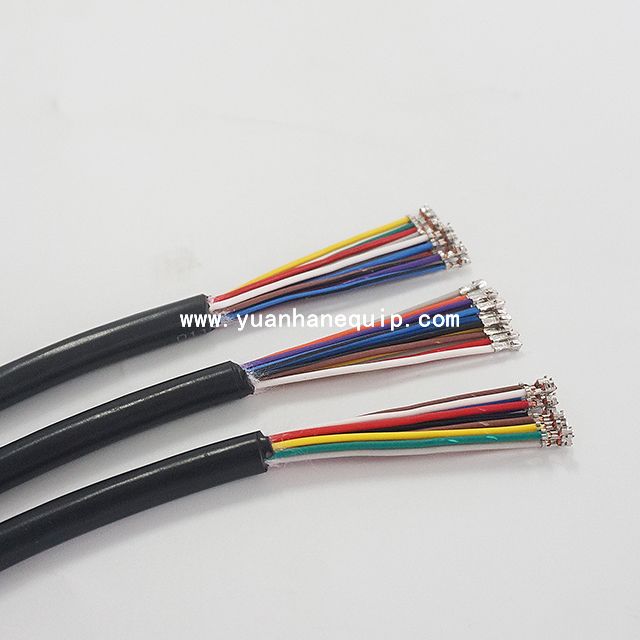

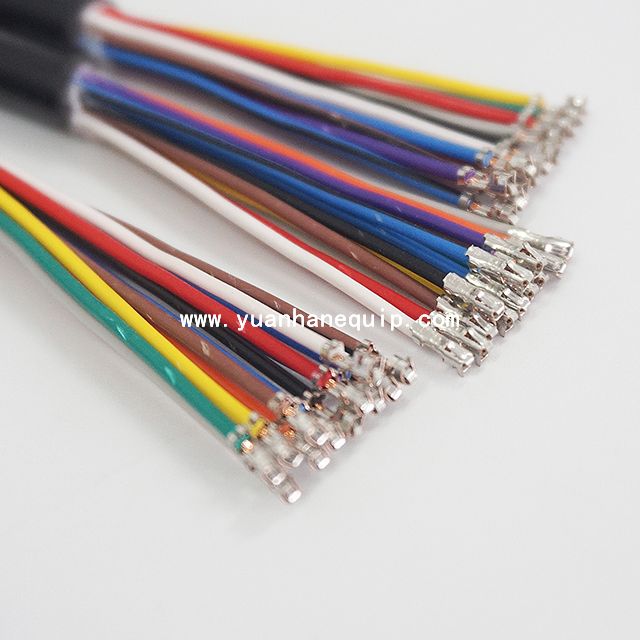

  • The multi-core cable stripping and crimping machine can complete wire feeding, wire organizing, inner core stripping, terminal crimping accurately and continuously.

  • The machine is equipped with an automatic waste collection device, an automatic leather suction device and a rubber material collection box to ensure the cleanliness of the work site.

  • The machine is equipped with an automatic cutting device to ensure that the waste belt is cut every 100mm and automatically enters the waste collection box.

  • The machine is equipped with an automatic wire-taking device to avoid terminal jam.

Model YH-DX228/YH-68210C
Power supply AC220V/50HZ
Production capacity(8pin) 5,600 terminals/hour
Applicable wire range

AWG22-AWG28 (2P-12P)

Suitable wire diameter AWG#16-AWG#30
Wire processing length 100-9999.99mm
Outer length range above 33mm
Air pressure 0.5Mpa
Stripping accuracy ±0.1mm
Dimensions 790mm*670mm*1,365mm (L*W*H)
Weight about 200KG





×
