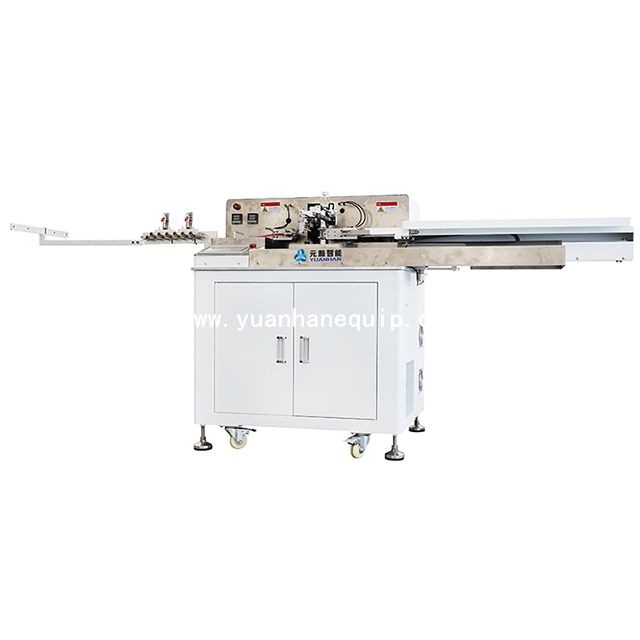

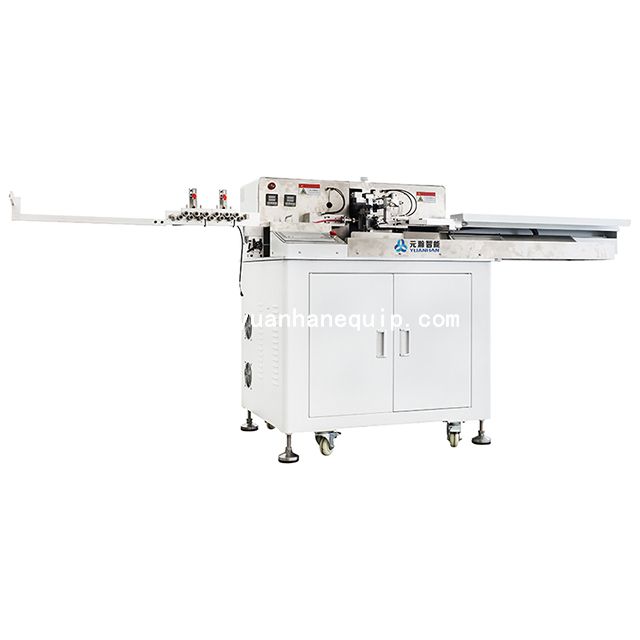

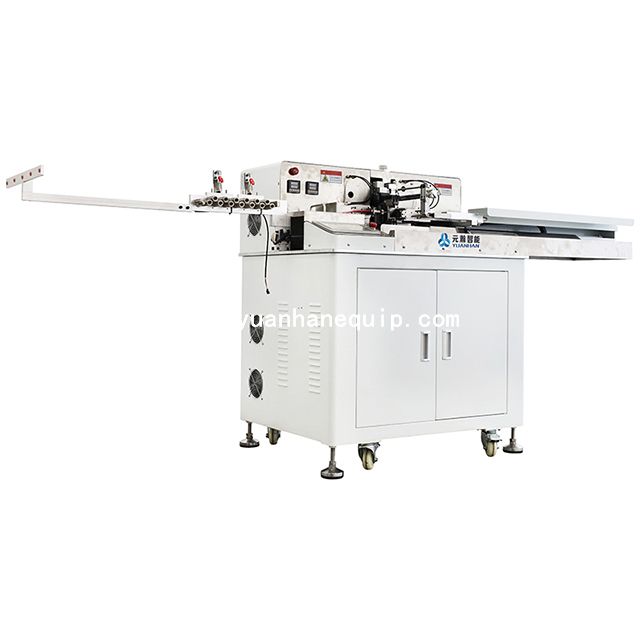

Multiple Wires Stripping Tinning and Twisting MachineMultiple Wires Stripping Tinning and Twisting Machine

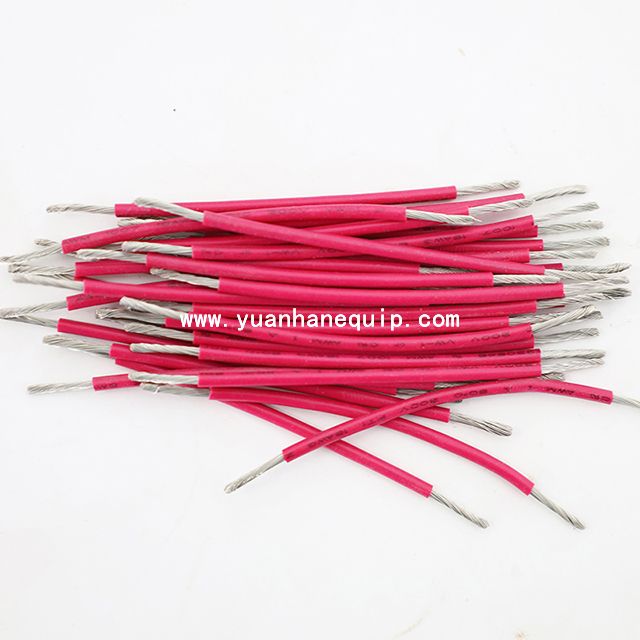

The multiple wires stripping tinning and twisting machine can process up to 10 lines at the same time. Main function: single or double ends cutting, full stripping/half stripping, tinning, and twisting.

Model:
  • YH-06W
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: single or double ends cutting, full stripping/half stripping, tinning, twisting

○ Applicable wire size: 0.3mm - 3.0mm (AWG34 # - AWG16 #)

○ Roller feed line, length can be adjusted freely

○ All electric and pneumatic parts of the machine adopt Japanese SMC and Omron digital display air pressure and temperature control devices, sensing devices, etc., to make the whole machine operate more accurately.

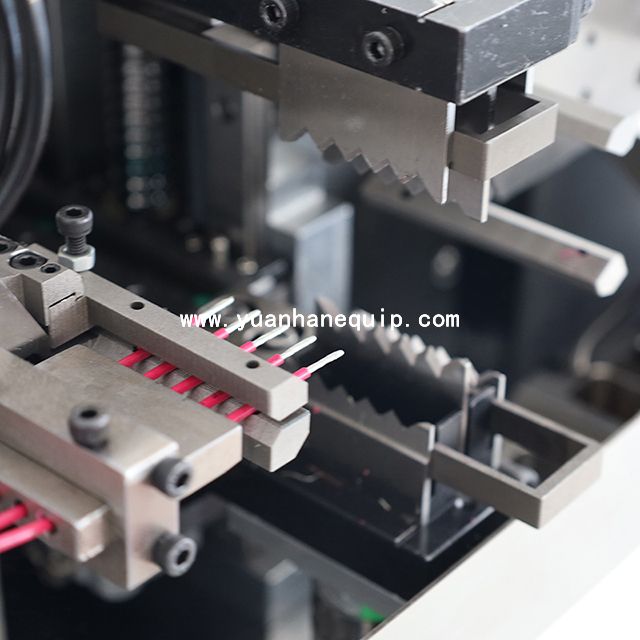

○ 90 ° tin dipping, tinning and twisting effect is even, and the dip depth is controlled by stepping motor, which is light, fast, accurate and high performance.

○ Using suction and blowing devices to deal with tin residue and cutting waste, clean and tidy.

Model  YH-06W
Source AC 220V / 50/60hz single phase
Function Single or double ends cutting, full stripping/half stripping, tinning, twisting
Productivity Frequency: 2,000 times/time
Walking line 10 lines (according to product specifications)
Capacity 20K/hour (according to the product specifications)
Applicable wire size 0.3mm - 3.0mm (AWG34 # - AWG16 #)
Cutting length 8mm - 1,000mm
Stripping length 0.1 mm - 10.0 mm
Torsion length 3.0mm - 10.0mm
Tin length 0.1mm - 10.0 mm
Air pressure 7kgf (clean and dry air should be used)
Dimension 600mm * 800mm * 1,100mm
Weight  280KG



×
