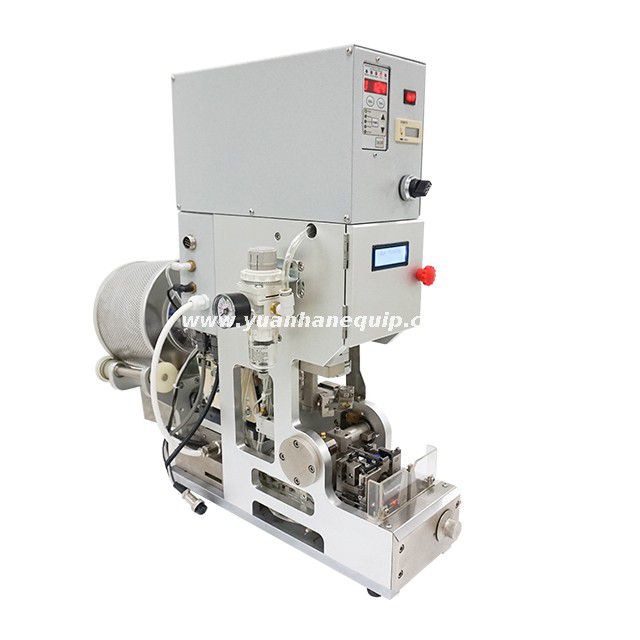

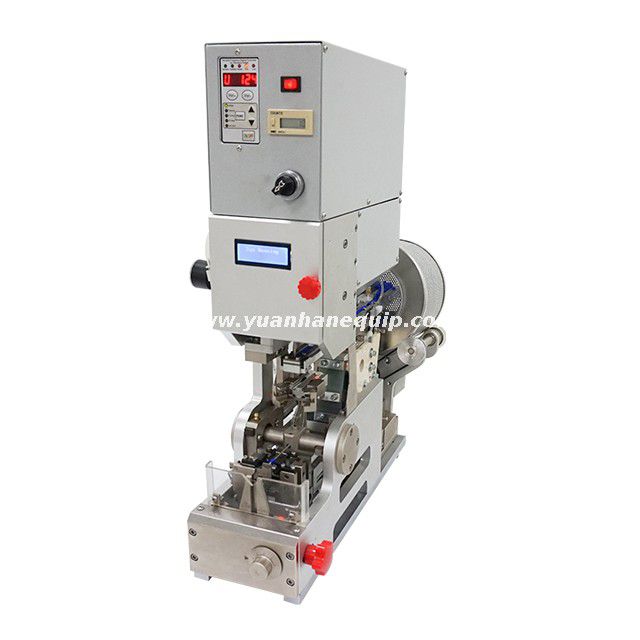

Semi-automatic Rubber Wire Seals Inserting Loading MachineSemi-automatic Rubber Wire Seals Inserting Loading Machine

This is a semi automatic wire waterproof seals loading machine. It adopts PLC automation software technology to ensure high accuracy and high speed waterproof plug inserting.

Model:
  • YH-200A
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine adopts PLC automation software technology to ensure high accuracy and high speed waterproof plug inserting.

  • The fault can be automatically detected and displayed.

  • It can insert hard shell waterproof plugs and pull off wire sheath.

Model YH-200A YH-200F YH-200G YH-300
Power Supply AC 220/110V, 50/60Hz AC 220/110V, 50/60Hz AC 220/110V, 50/60Hz AC 220/110V, 50/60Hz
Power Rating 80W 80W 80W 80W
Air Supply 0.5~0.7Mpa 0.5~0.7Mpa 0.5~0.7Mpa 0.5~0.7Mpa
Size of Rubber Seals

(Diameter*Length)

≤φ16*15(Max)

≤φ10*9(Max)

≤φ10*9(Max)

≤φ14*15(Max)

Notice

Need to customize feeding rail according to different sizes of rubber seals.

Speed 70pcs/min 70pcs/min 70pcs/min 60pcs/min
Dimension L600*W600*H260 L600*W200*H550 L600*W200*H400 L600*W100*H600
Weight 35KG 30KG 30KG 30KG





×
