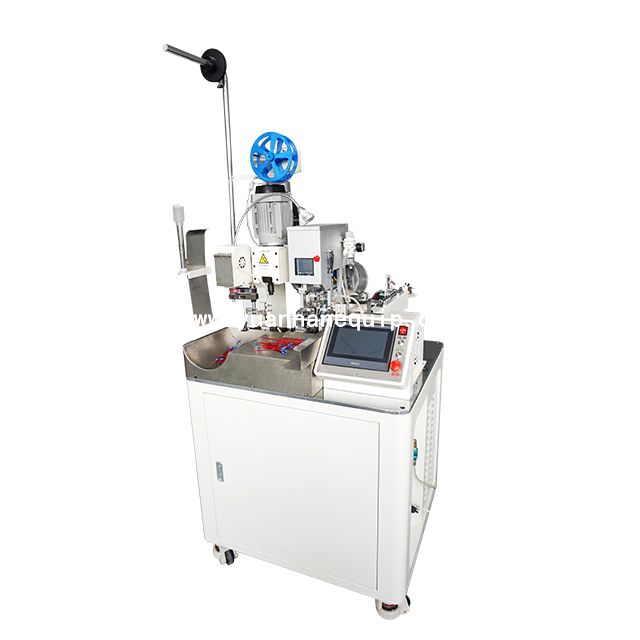

This fully automatic waterproof seals terminal crimping machine can process wire cutting, peeling at both ends, and wear waterproof seals and crimp terminal at single end. It's easy-to-use CNC touch screen helps you reset wire cutting length, stripping length, rubberized depth and other parameters easily.

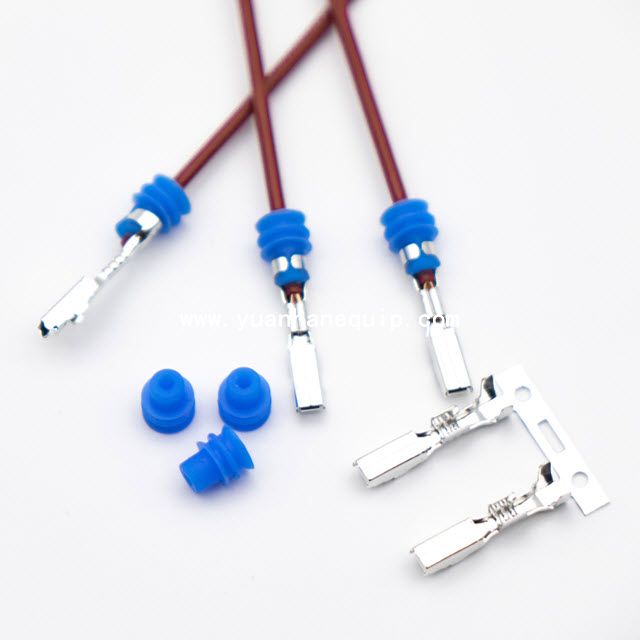

○ Crimp terminal at one end and wear waterproof plug at the same time;
○ Both OTP horizontal and straight card models can be used and can be quickly exchanged;
○ Cut and strip both ends of the wire, and crimp terminal at one end;
○ Easy to use CNC touch screen helps you reset wire cutting length, stripping length, rubberized depth and other parameters easily.
|Maximum capacity||3,000 strip/h (length =150mm)|
|Applicable wires||AWG1007 18#-28# (applicable part awg1007#32)|
|Cutting length||65mm-300mm (more than 800mm need to assemble conveyor belt)|
|Cuttig precision||Adjustment range 0.5mm+ Cutting length less than x0.5%|
|Pressure ability||Standard 2ton|
|Power supply||ac220v 50HZ Single Phase|
|Compressed air||0.5-0.55mpa (5KGF/CM)|
|Control mode||Micro control, 165na/mips mode, 5US standby wake-up, high speed operation|
1. Cassette mould and blade
2. Vertical wire feeder,
3. Axial discharge device
4. Conveyor belt
5. Pressure Transducer System
