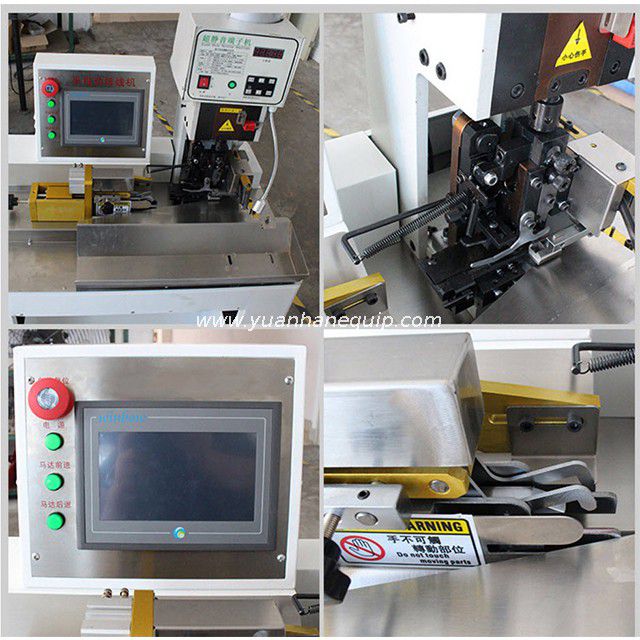

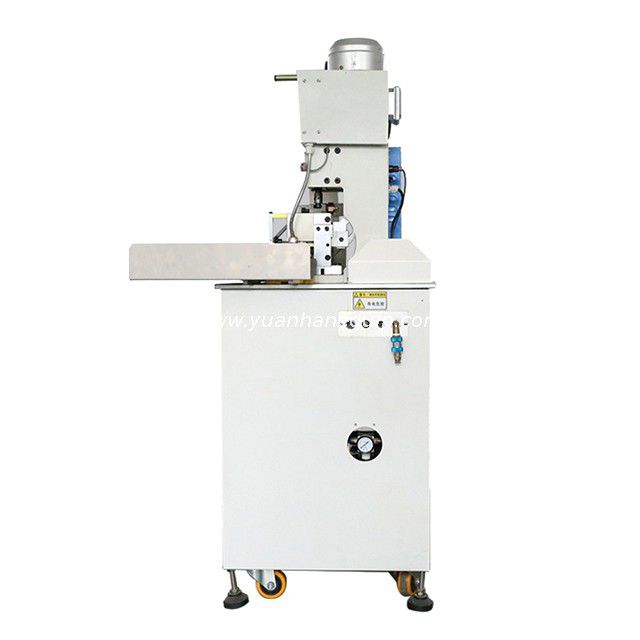

Semi-automatic Flat Cable Terminal Crimping Machine

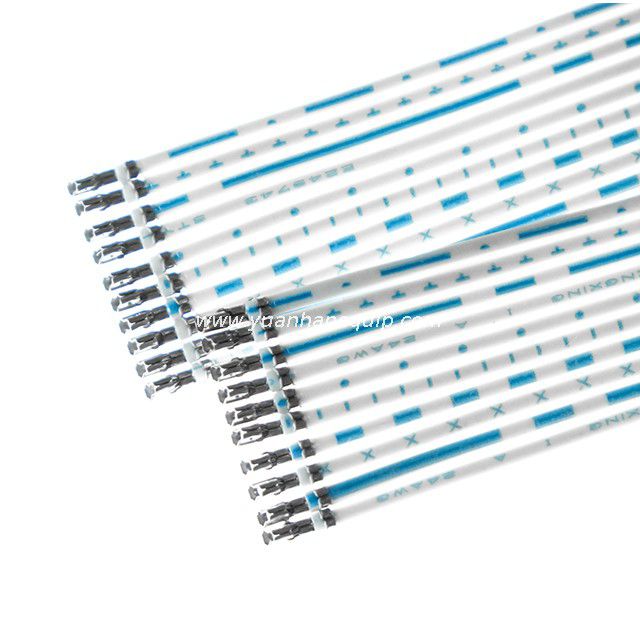

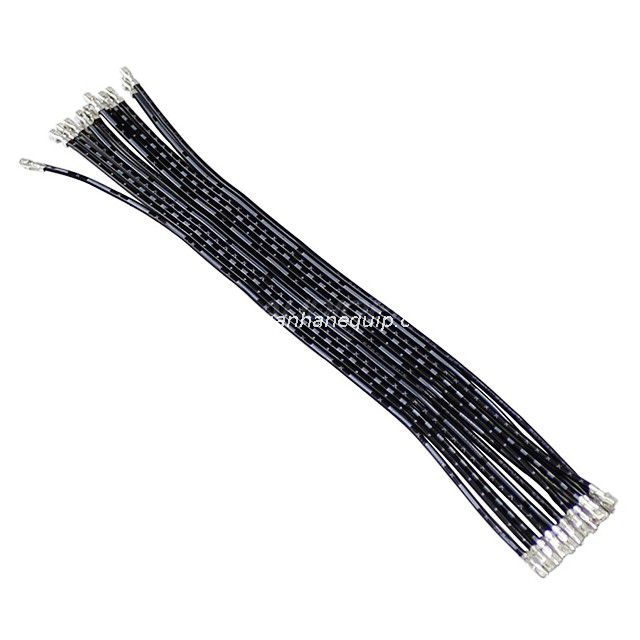

This semi automatic crimping machine is suitable for continuous single-end terminal crimping for flat cables. Applicable terminals: PH, EH, XH, SM, VH, ZH, DuPont terminals, etc. Capacity: 12,000 terminals/hour.

Model:
  • YH-P01
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: flat cable one-side terminal crimping

  • Suitable for crimping PH, EH, XH, SM, VH, ZH, DuPont terminals, etc.

  • Semi-automatic production, saving labor

  • The terminals are pressed neatly with good consistency and stable quality

  • Using stepper motor, the crimping pressure is accurate, ensuring continuous performance

  • High efficiency: 6K-10K pcs/hour

Model YH-P01
Functioncontinuous single-end terminal crimping for flat cables
Capacity12000 terminals/hour
Standard P number3-20P (20-40P can be customized)
Wire splitting length25mm or above
Cable lengthminimum 60mm (50mm is customizable)
Wire transferservo linear screw
Pressure cylinder
Tool materialJapan DC53
Wire inductionYes
Manual adjustmentYes
VoltageAC220V
Power supplyAC175V-25050/60HZ
Dimensions1400mm*800*1550mm
Weight130KG



















×
