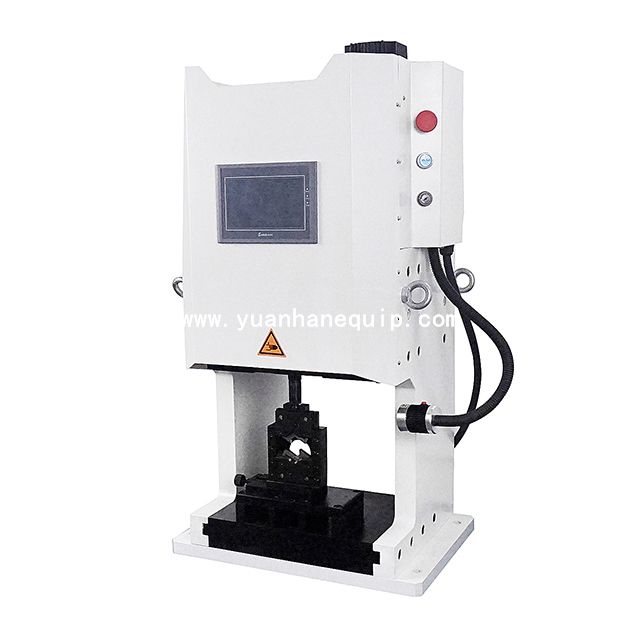

Servo Motor Cable Connector Crimping Machine

This is a semi-automatic servo motor driven cable terminal crimping machine. It features high crimping accuracy and stable crimping quality, which is suitable for processing of new energy wiring harness.

Model:
  • YH-SF8T/YH-SF10T/YH-SF15T/YH-SF20T/YH-SF30T
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Servo motor drive, high crimping accuracy and stable crimping quality

  • Touch screen control, simple operation.

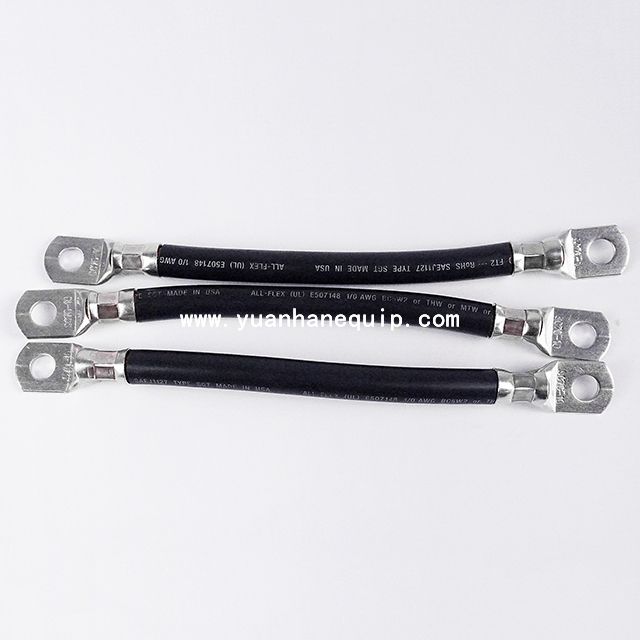

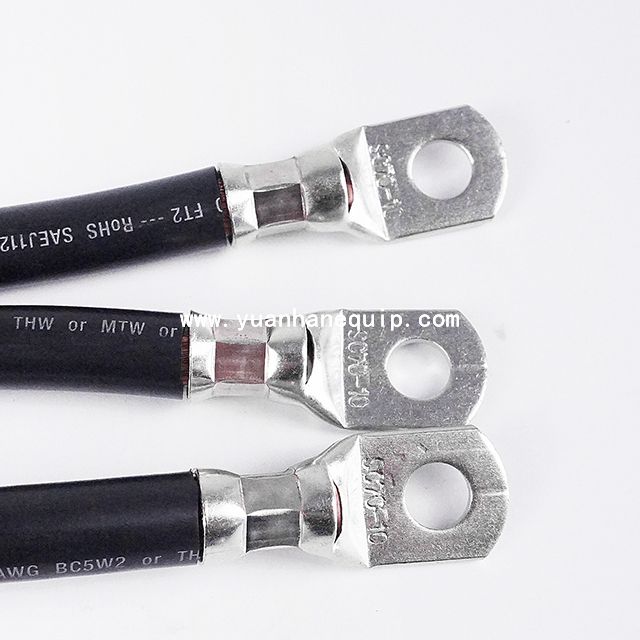

  • Designed for terminal crimping with high precision requirements, suitable for processing of new energy wiring harness.

  • With crimping error alarm function: overlapping crimping terminal alarm (protecting the blade), crimping un-stripped cable alarm, cutting core wire alarm, no terminal crimping alarm.

Model Stroke Motor Power Crimping Force Weight Dimensions (mm)
YH-SF8T 30mm 2.3KW 80KN 135KG 400*380*740
YH-SF10T 30mm 2.3KW 100KN 138KG 400*380*740
YH-SF15T 30mm 3.6KW 150KN 350KG 520*540*980
YH-SF20T 40mm 5.5KW 200KN 380KG 400*540*1060
YH-SF30T 30mm 7.5KW 300KN 370KG 520*540*1030





×
