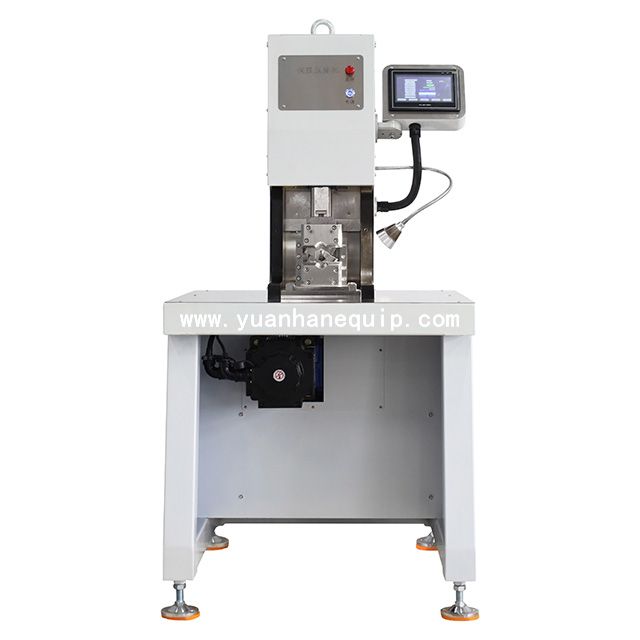

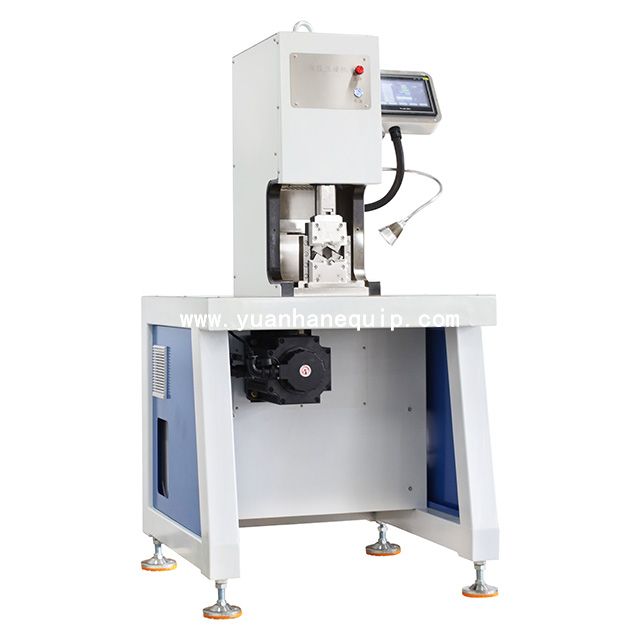

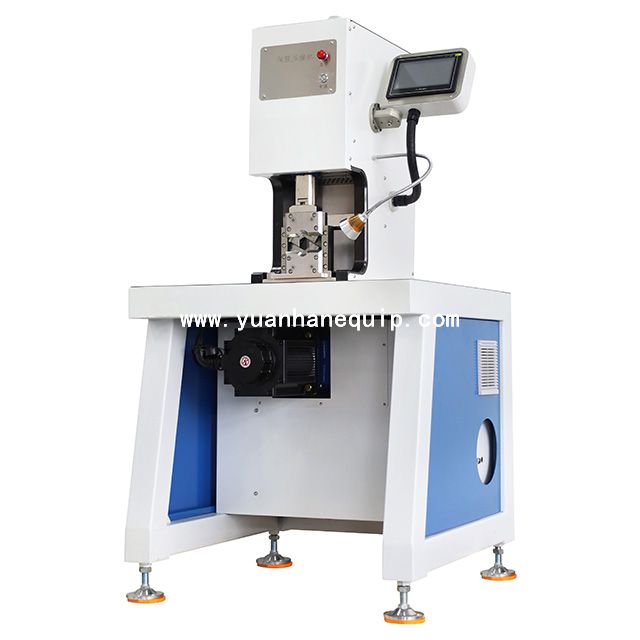

This servo motor driven terminal crimping machine is mainly used for crimping of large square tubular terminals. The applicable wire sizes range from 10-120 square mm.
Model:
|
|
Brand:
|
|

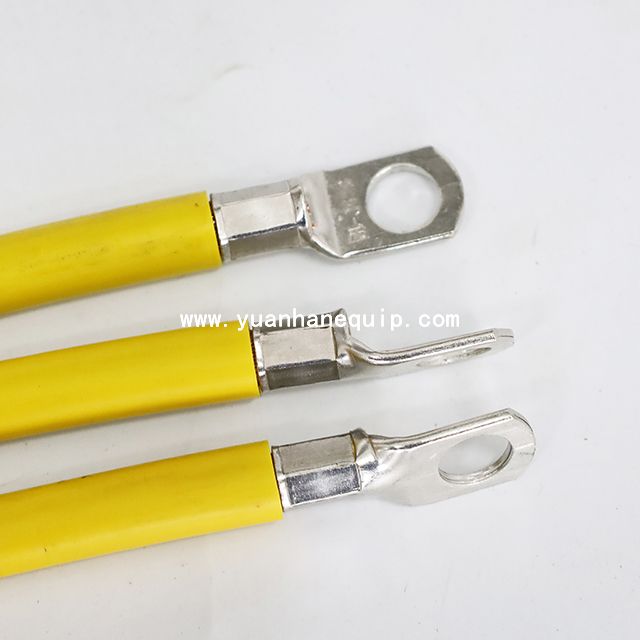

This machine is mainly used for crimping of large square tubular terminals;
Based on industrial-grade control chip with high-precision servo drive, the machine can run stably;

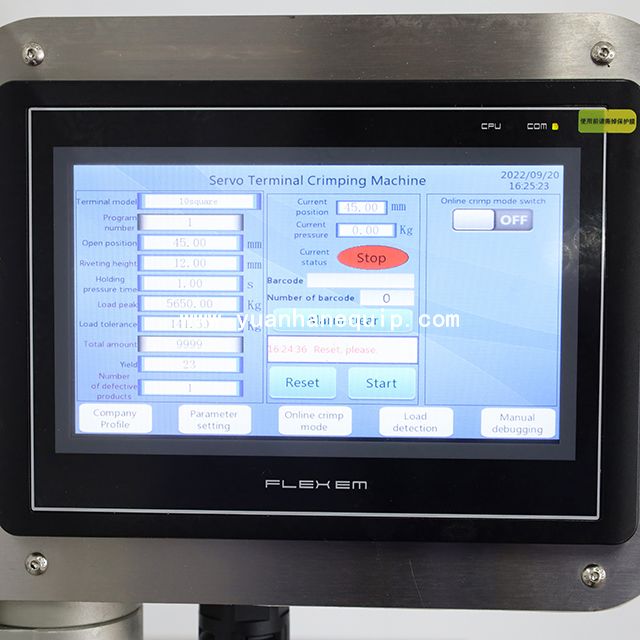

Touch screen operation mode, PLC control system, instantaneously change the crimping range of different terminals;
10-120mm2 closed tubular terminal crimping without changing the tool, instantly change the size of the knife edge;
Suitable for crimping of non-standardized terminals or crimped terminals;
No need to change the mold, high accuracy;

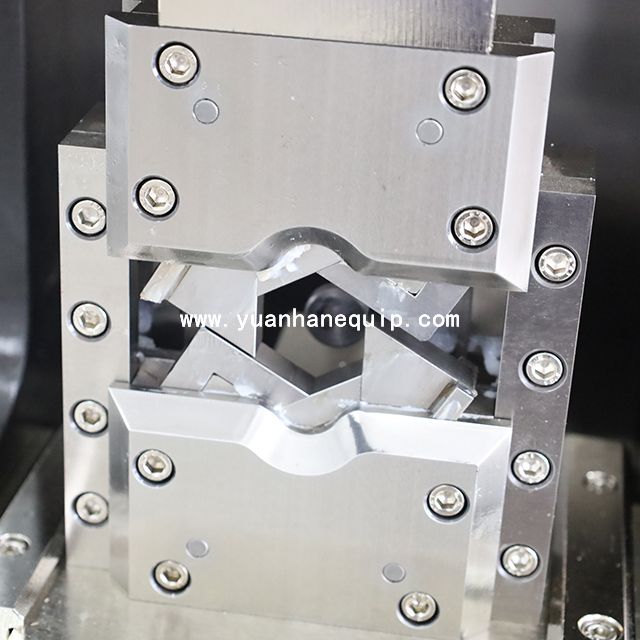

The crimping joint can be fully opened, suitable for intermediate or large square terminals;
Position adjustment of the actual square of the wire;
Compact, space saving, and low noise.
Model | YH-SF30T |
Wire Size | 10-120mm² |
Pressure | 300KN |
Stroke | 35mm |
Crimp width | 12.5mm (Customizable) |
Weight | 120kg |
Voltage | 220V/50Hz |
Power | 2300w |
