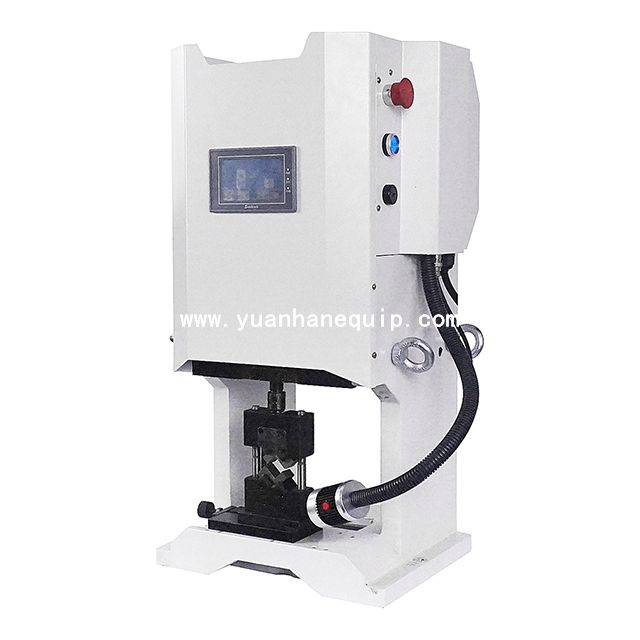

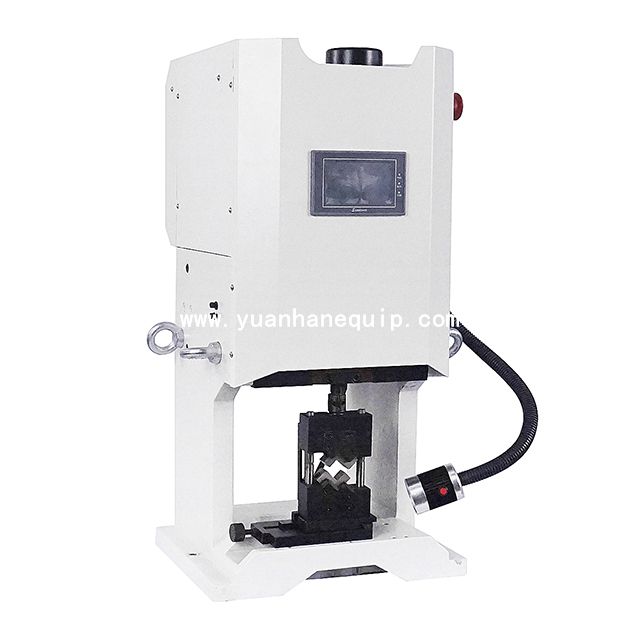

Servo Motor Driven Wire Connector Crimping MachineServo Motor Driven Wire Connector Crimping Machine

The servo motor driven cable connector crimping machine is mainly used for crimping of large tubular terminals.

Model:
  • YH-SF10T
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Industrial grade control chip cooperates with the high precision servo drive to make the machine run stable.

  • PLC control system can instantaneously change the crimping range for different terminals.

  • No need to change the crimping applicator for different sized terminals.

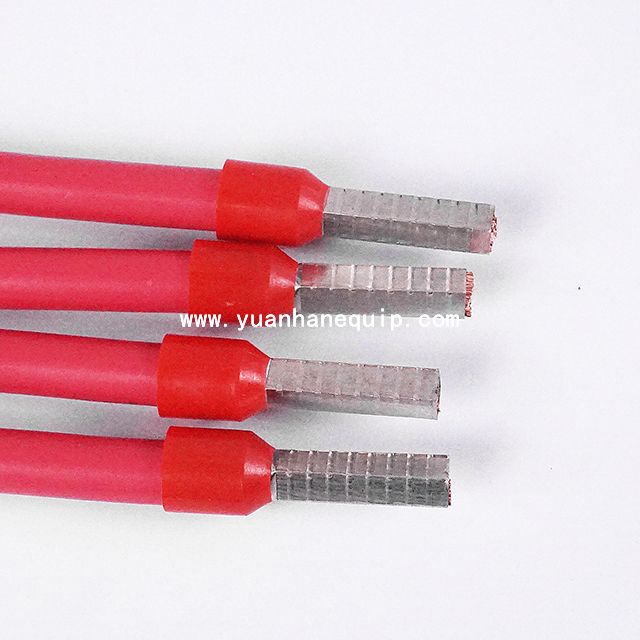

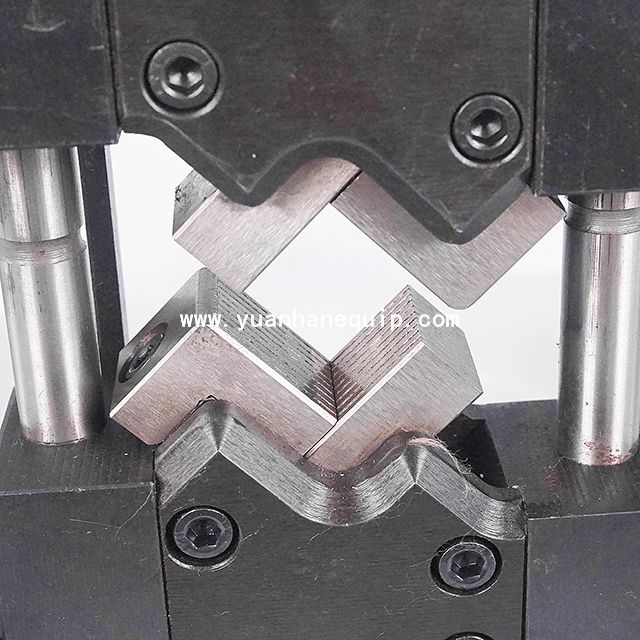

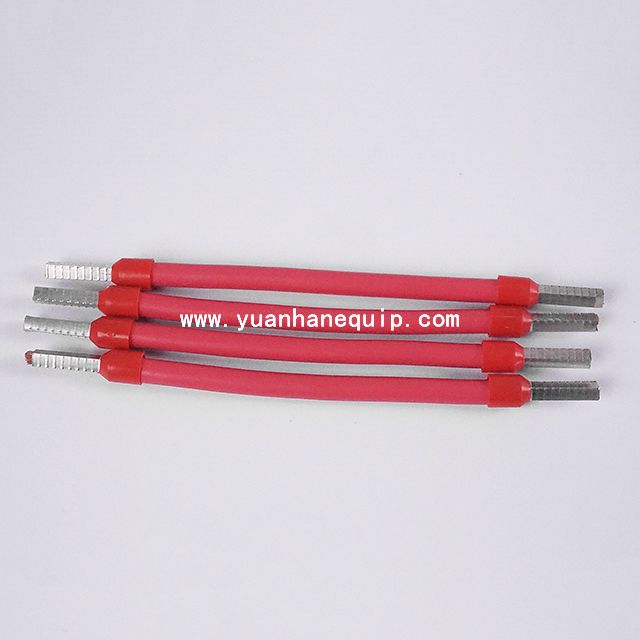

  • Support hexagonal, quadrilateral and M-shape crimping

  • The position can be adjusted for different sized wire

ModelYH-SF10T
Conductor Cross-section1-75mm2
Crimp force100KN
Stroke40mm
Crimp widthMax 12.5mm (customizable)
Power supply110/220VAC, 50/60Hz
Power2000W
Weight180KG
Dimensions45*40*80cm



×
