Servo Motor Wire Lugs Crimping Machine

This servo motor driven terminal crimping machine is mainly used for crimping big tubular terminals. The maximum crimping range is 240mm2.

Model:
  • YH-SF40T
Brand:
  • Yuanhan
Share to:
Features
Specifications

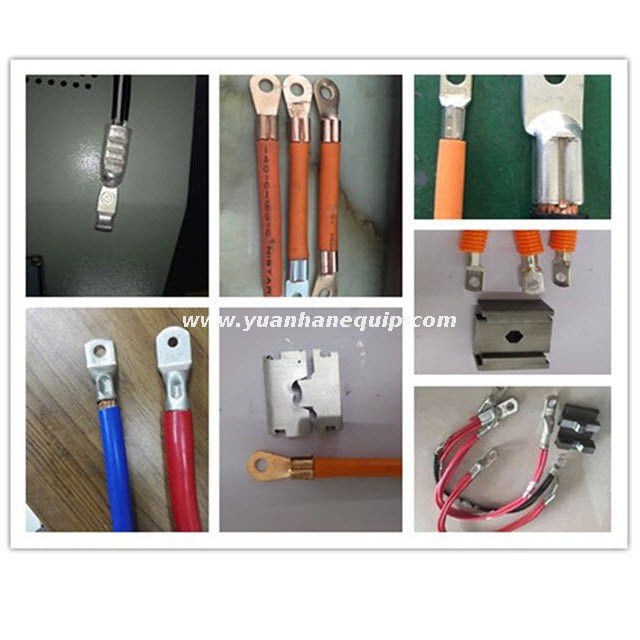

  • This machine is mainly used for crimping big tubular terminals;

  • Based on industrial-grade control chip with high-precision servo drive, the machine can run stably;

  • Touch screen operation mode, PLC control system, instantaneously change the crimping range of different terminals;

  • Suitable for crimping of non-standardized terminals or crimped terminals;

  • No need to change the applicator, high accuracy;

  • The crimping joint can be fully opened, suitable for intermediate or large square terminals;

  • Compact, space saving, and low noise.

ModelYH-SF40T
Crimping force40T
Crimping range
Max. 240mm2
Motor power4.5kw servo motor
Reducerplanetary reducer
Transmission modeball screw
Slider stroke60mm
Crimping accuracy± 0.03mm
Crimp controldigital control
Matching applicatorhexagon applicator, M shape applicator, opt applicator, four points applicator
Control systemmotion control board + touch screen control
Start modepedal start
Power supply380V 50~60Hz
Speed10~30pcs/min
Size740*740*1500 (excluding protrusion)
Weightabout 500kg


×
