Wire Single End Housing Inserting and Tinning MachineWire Single End Housing Inserting and Tinning Machine

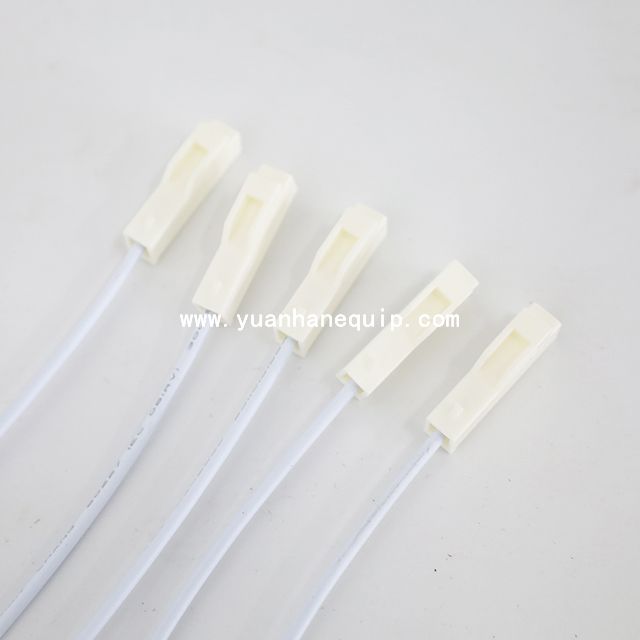

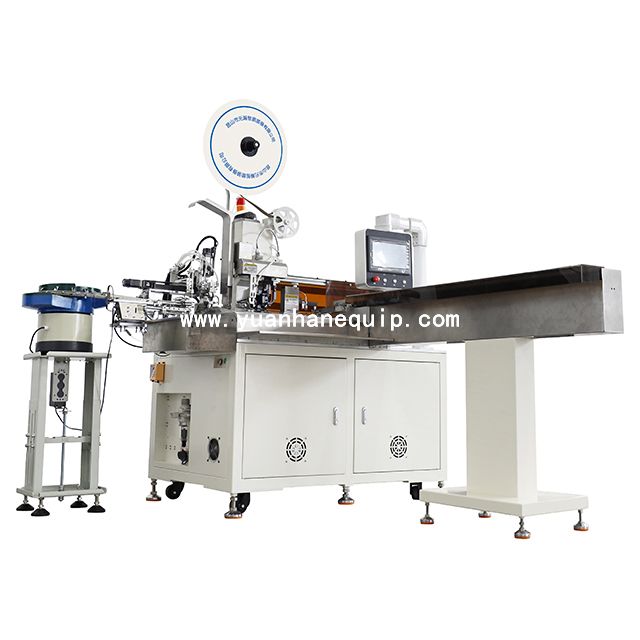

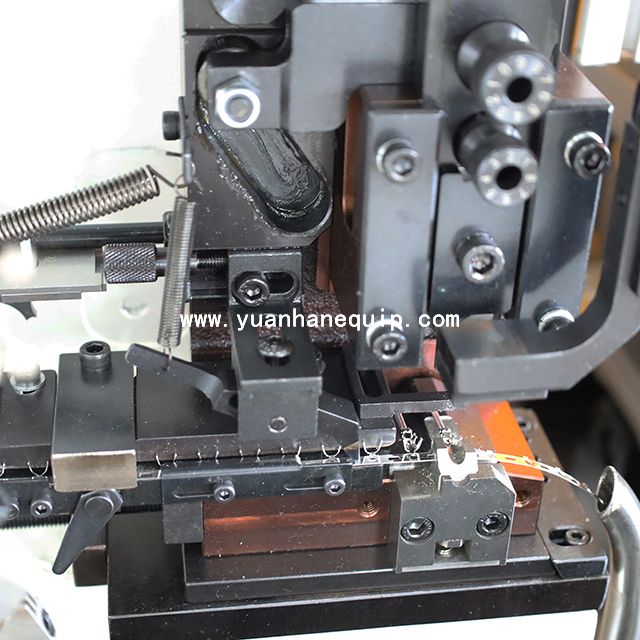

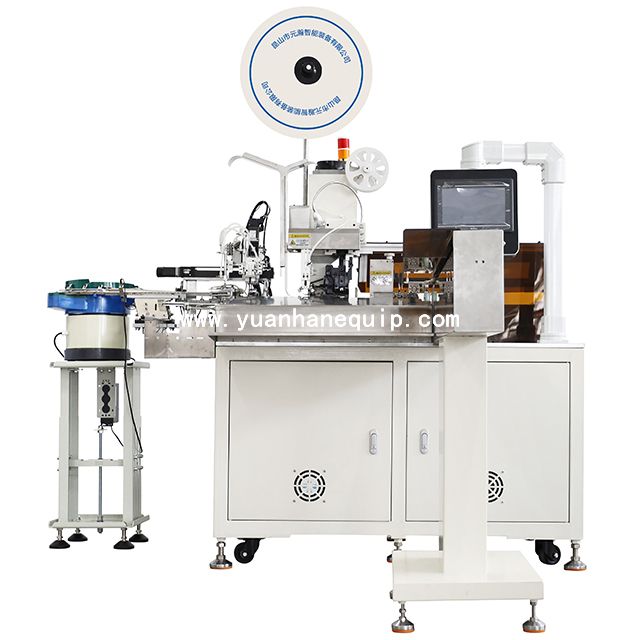

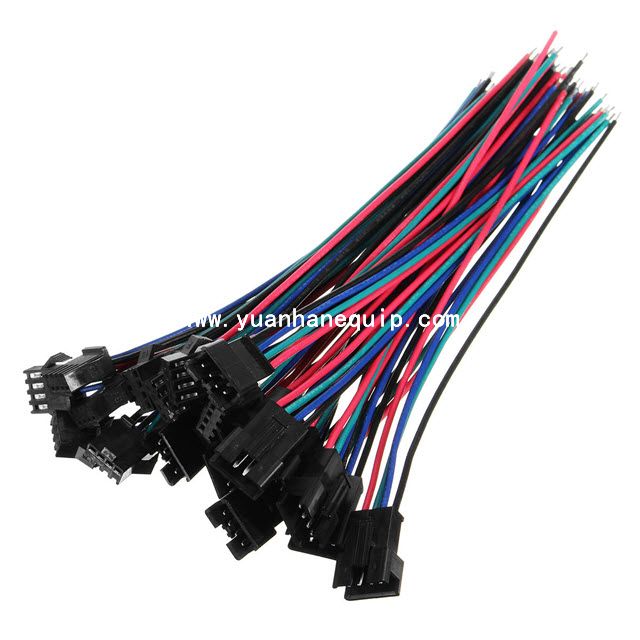

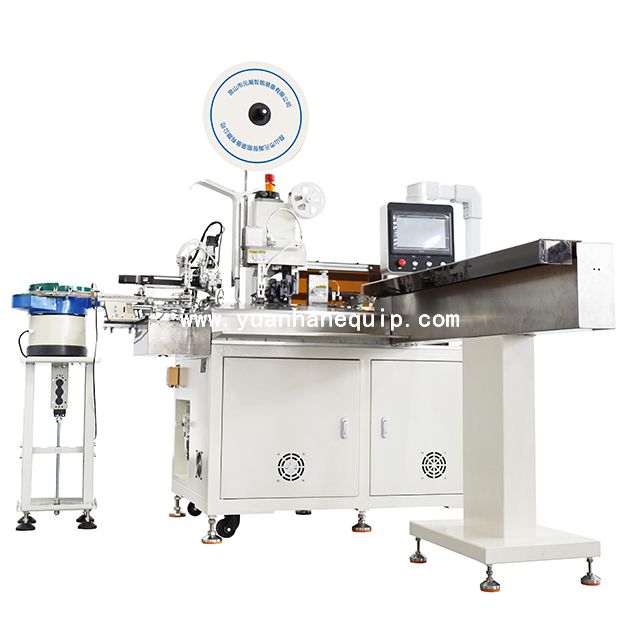

This fully automatic wire harness machine is able to process wire cutting, two-ends stripping, one end tinning, and one end housing inserting.

  • YH-800B
  • Yuanhan
Share to:

○ Wire cutting, two-ends stripping, one end tinning, one end housing inserting and wire reverse processing

○ Automatic tin feeding, automatic fluxing

Model YH-800B
Wire size AWG#20 - #30(Wire diameter below 2.5mm)
Wire color 10 colors(Optional 2~10)
Cutting length 50 mm - 1000 mm (set unit as 0.1mm)
Cutting tolerance Tolerance 0.1 mm +
Stripping length 1.0mm-8.0mm
Tinning length 1.0mm-8.0mm
Stripping tolerance Tolerance +/-0.1mm
Crimping force 19600N(equivalent 2 ton)
Crimping stroke 30mm
Universal crimping tool Universal OTP crimp tool
Detection function

Low pressure, whether lack of wire, whether wire overload, clamping error,

whether lack of terminal, terminal overload, terminal insert detect,

pressure sensing device (optional), CCD visual inspection (optional)

Control mode PLC control
Internal control voltage DC24V
Power supply Single phase ~AC200V/220V  50HZ  10A (110V/60Hz optional)
Compressed air 0.5MPa、about 170N/min
Temperature range 15°C - 30°C
Humidity range 30% - 80%RH  No dew
Warranty 1 year (Except for consumables)
Dimension 1560Wx1100Dx1600H
Net weight About 800kg
