Kunshan Yuanhan Electronic Equipment Co., Ltd.

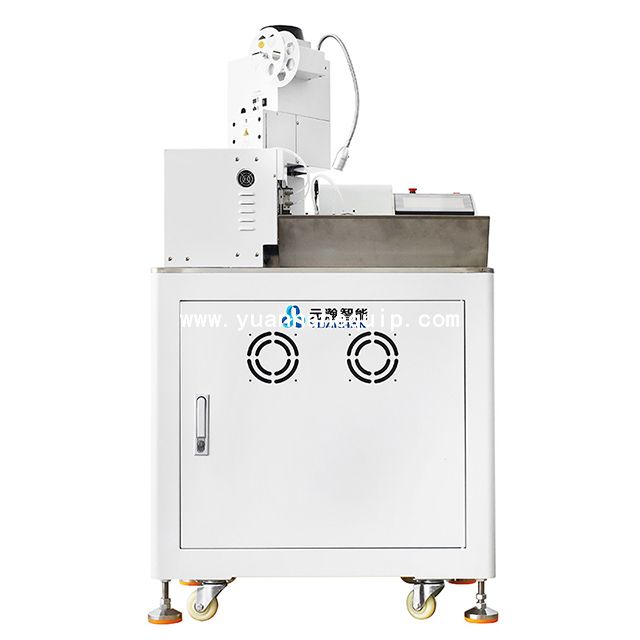

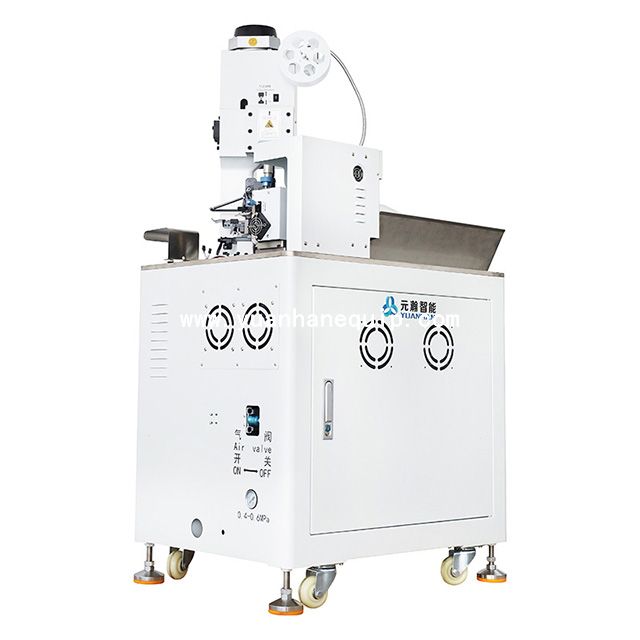

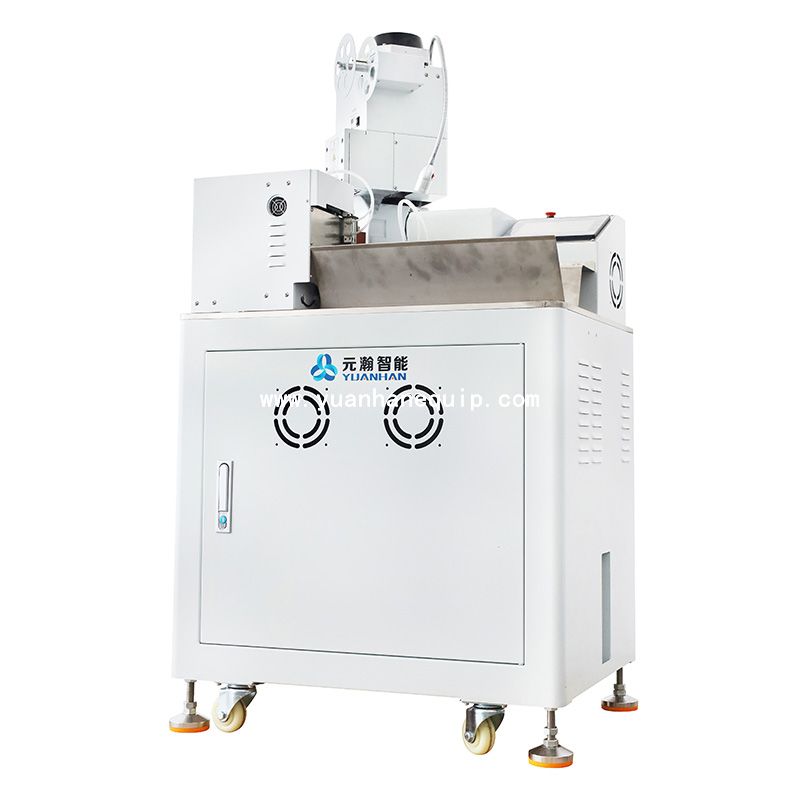

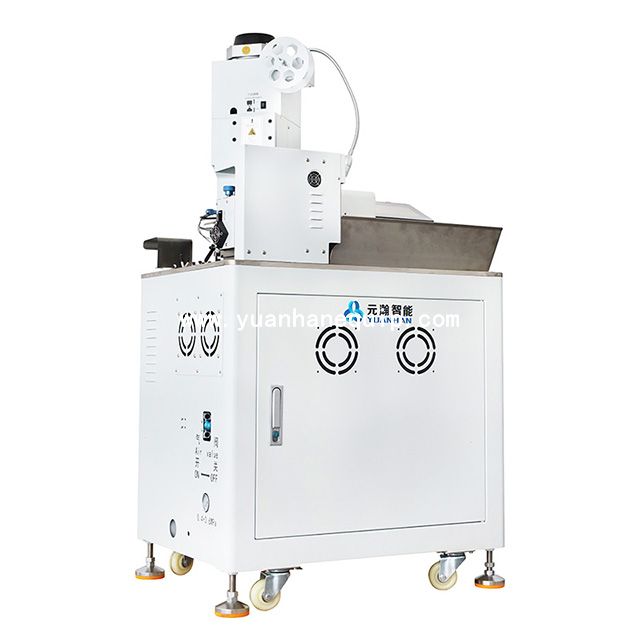

This fully automatic single head terminal crimping machine is able to process wire cutting, double-end stripping, crimping on one end, and twisting wire on one end. It can crimp various terminals to single wire, two wires, thin wires, thick wires and parallel wires.
Model:
|
|
Brand:
|
|
Being able to crimp terminals to single wire, two wires, thin wires, thick wires and parallel wires
Function: wire cutting, double-end stripping, crimping on one end, twisting wire on one end
Compact modular design, saving space
High-end and high-precision components ensure good quality of the machine
Easy-to-use touch screen
Fast speed and high quality, greatly saving labor
Model |
YH-D02 |
YH-D03 |
YH-D04 |
YH-D05 |
YH-D06 |
|
Type |
General model |
Two-wire model |
Thin wire model |
Gold pin model |
Thick wire model |
Parallel wire model |
Product features |
wire cutting, double-end stripping, crimping on one end, twisting wire on one end |
|||||
Machine capacity |
3800-7600 pieces / hour |
|||||
Wire cutting length |
45-999mm |
|||||
Wire stripping length |
0-10mm |
|||||
Wire twisting length |
Backend 2-10mm |
|||||
Suitable wire sizes |
AWG18-28# |
AWG18-28# |
AWG20-32# |
AWG18-28# |
2.5mm2 |
AWG18-28# |
Tool material |
Imported tungsten steel / high-speed net |
|||||
Pneumatic accessories |
Standard AirTAC |
|||||
Air pressure |
0.5-0.7MPA |
|||||
Power |
AC 220V |
|||||
Machine size |
700(L)*600(W)*1500(H)mm(Not including packing) |
|||||
Weight |
About 240KG |
