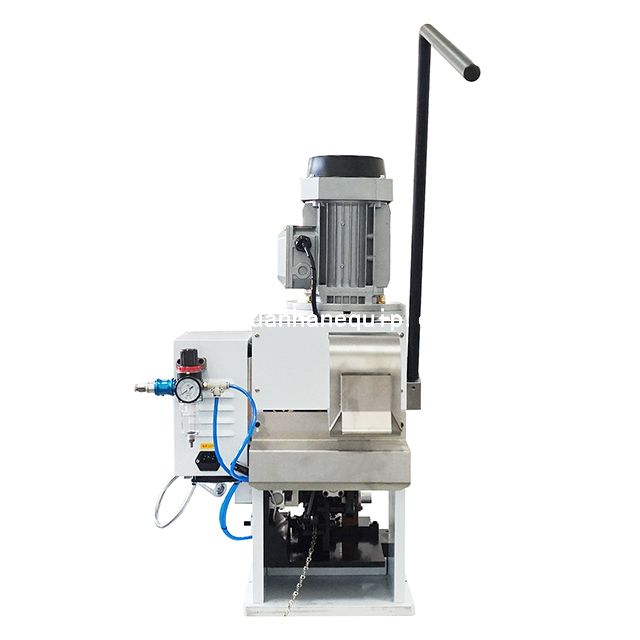

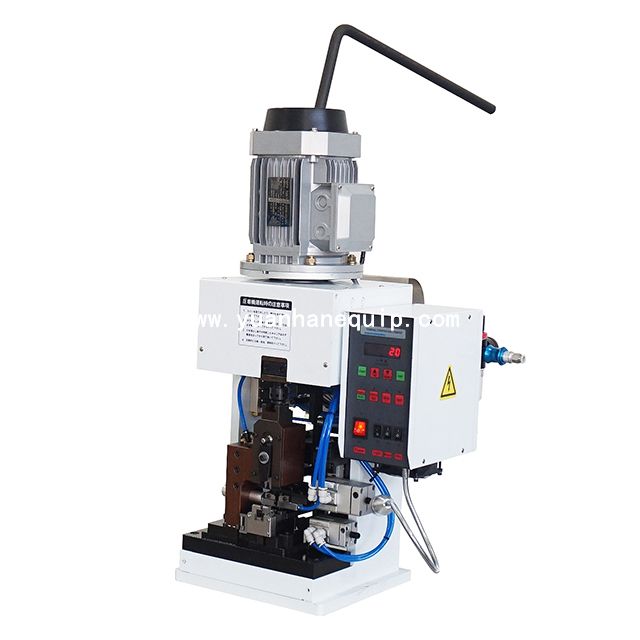

Straight Feeding Wire Stripping and Crimping MachineStraight Feeding Wire Stripping and Crimping Machine

This semi-automatic wire stripping and crimping machine is specially designed for processing straight feeding terminals in roll. It’s good at processing single core wires and multi-core cables. This machine can strip wire and crimp terminals at one time, so there’s no need to strip the wire before crimping.

  • YH-3000Z
  • Yuanhan
Share to:
  • Adopts advanced frequency conversion technology to accurately control the variable frequency motor, and equipped with high-precision control module and transmission mechanism, so that stripping and crimping can be completed in one time.

  • Low noise, low power consumption and high speed, having a significant effect on multi-core power cords.

  • The stripping action is driven by the cylinder, the action speed is fast, and the positioning is accurate.

  • The stripped waste is vacuum-absorbed, clean, convenient and simple.

  • The crimping is driven by a turbine and the pressure is highly accurate.

  • The overall speed can be changed through the operation panel to suit the operator's proficiency.

  • The pneumatic parts are all made of Taiwan AirTAC components, which are durable and accurate. They are suitable for all kinds of straight feeding terminals, and the terminals are crimped at the stripping position to achieve uniformity.

Power supply200V240V 45/60Hz
Air source0.50.6mpaplease use dry and clean air
Applicable wire diameterAWG14#AWG26#depending on the wire type
Applicable wireAVAVSAVSSCAVUSKVKIVULIV TeflonFiber Cable, etc.
Stripping length1.0mm8.0mm
Cutting tolerance0.05mm0.1mm
Position tolerance0.05mm0.1mm

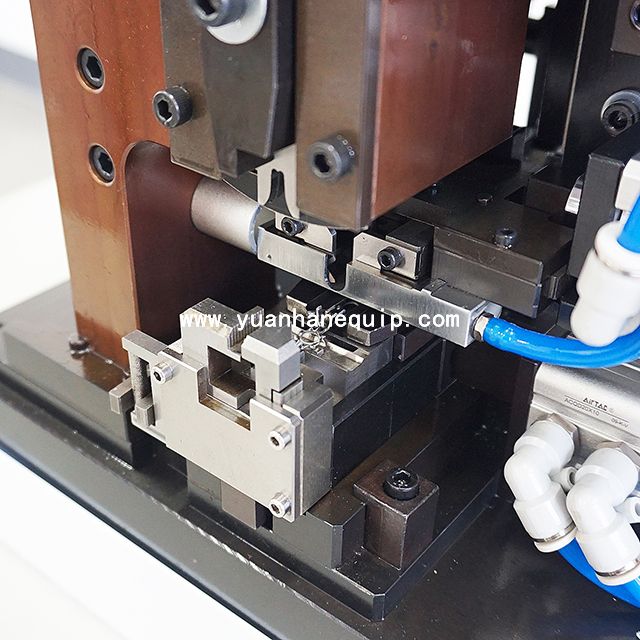

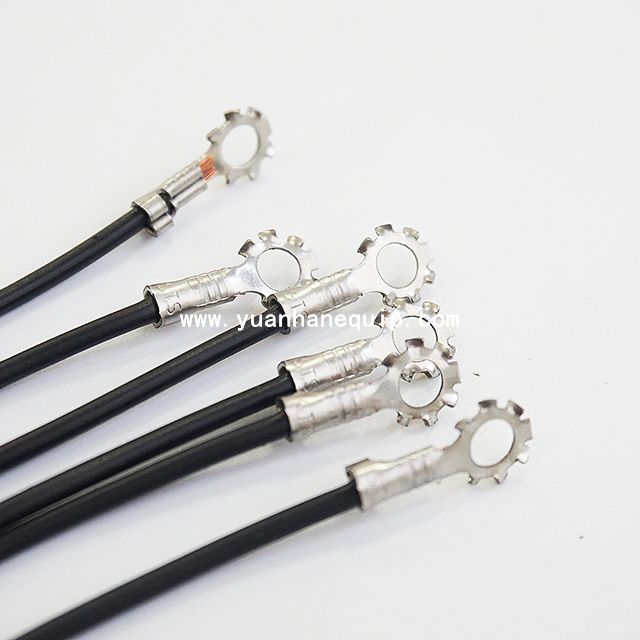

Terminal crimpingopen continuous straight feeding terminal
Crimping force3T
Crimping stroke50mm
Machine sizeL450*W500*H1000mm
Total weight120KG
