Pre-insulated Tubular Terminal Crimping MachinePre-insulated Tubular Terminal Crimping Machine

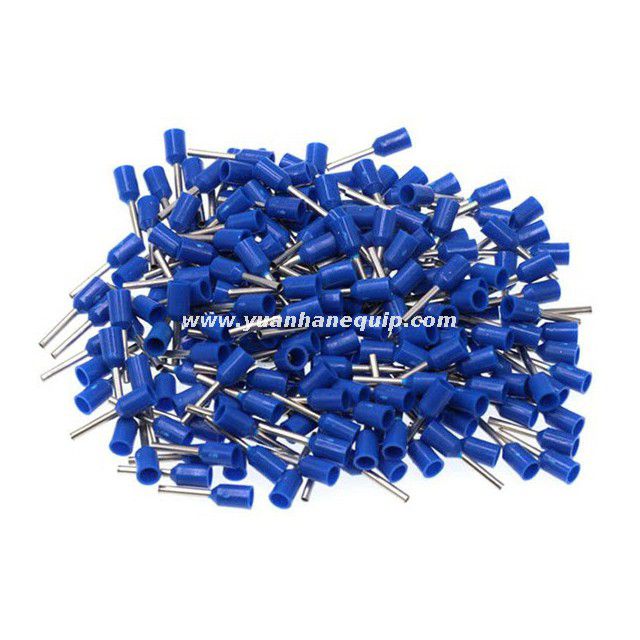

The automatic pre-insulated tubular terminal crimping machine is mainly used for crimping the international standard tubular terminals. It can process threading, peeling and crimping terminal at one time. It is suitable for crimping insulated/non-insulated loose terminals, pre-insulted loose terminals, side-feed terminals, straight-feed terminals, and loose tubular terminals. The overall efficiency can be increased 3-4 times.

Model:
  • YH-2PC
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Threading, peeling and crimping terminal at one time

  • Mainly for the crimping of tubular terminals of international standards

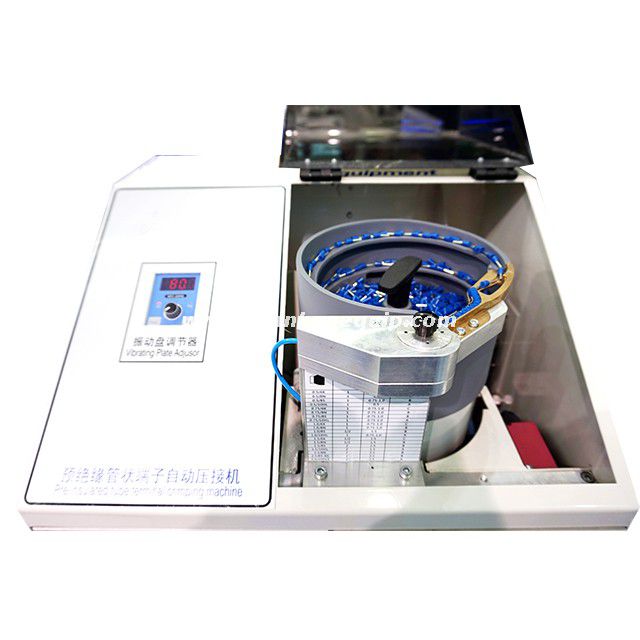

  • It is convenient and fast to replace the terminals by vibrating plate feeding

  • Overall efficiency can be increased 3-4 times

  • The extension part adopts the bell-mouth shape to facilitate the threading

  • Automatic adjustment of stripping diameter and crimping height

  • With sensitive pneumatic sensing control, crimping is quick

  • Adopting imported components and cylinders, the performance is stable

  • Suitable for crimping insulated/non-insulated loose terminals, pre-insulted loose terminals, side-feed terminals, straight-feed terminals, and loose tubular terminals

ModelYH-2PC
Functionthreading, peeling and crimping terminal at one time
Wire diameter0.5-2.5mm2(awg13-21#) customizable
Peeling length6-10mm(can be customized)
Applicable terminal specification6/8/10mm(can be customized)
Air source0.5-0.7Mpa
Power supply220v / 50 hz
Dimensions  40*34*45cm
Weight32kg


×
