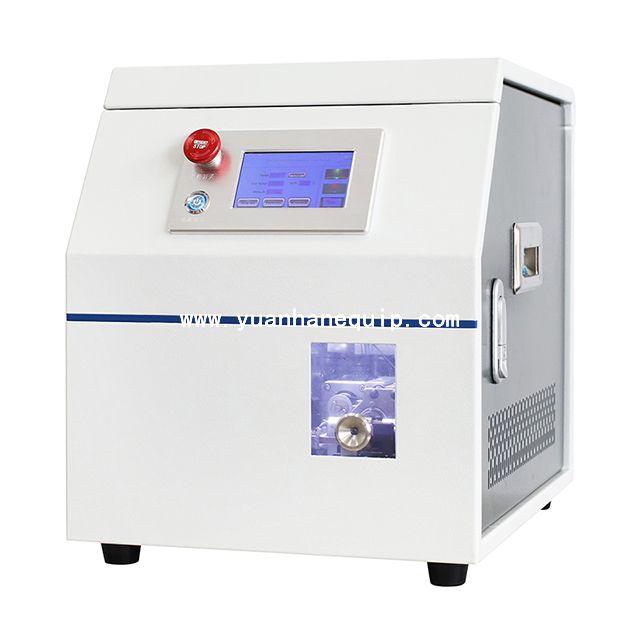

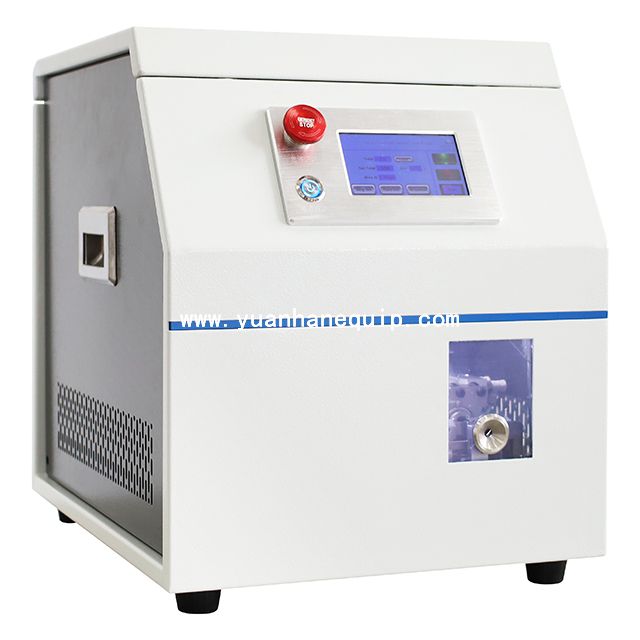

Loose Tubular Terminal Crimping MachineLoose Tubular Terminal Crimping Machine

This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables.

Model:
  • YH-3PC
Brand:
  • Yuanhan
Share to:
Features
Specifications

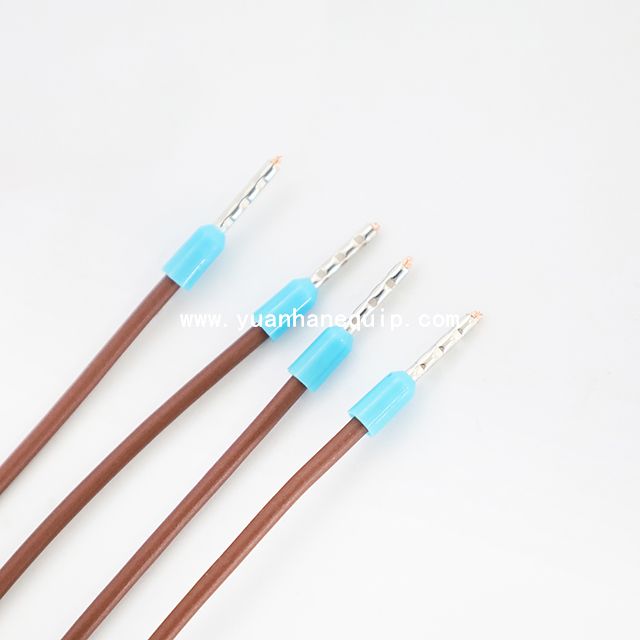

○ Suitable for crimping a variety of loose tubular terminals onto cables

○ Wire stripping and crimping can be finished at one time

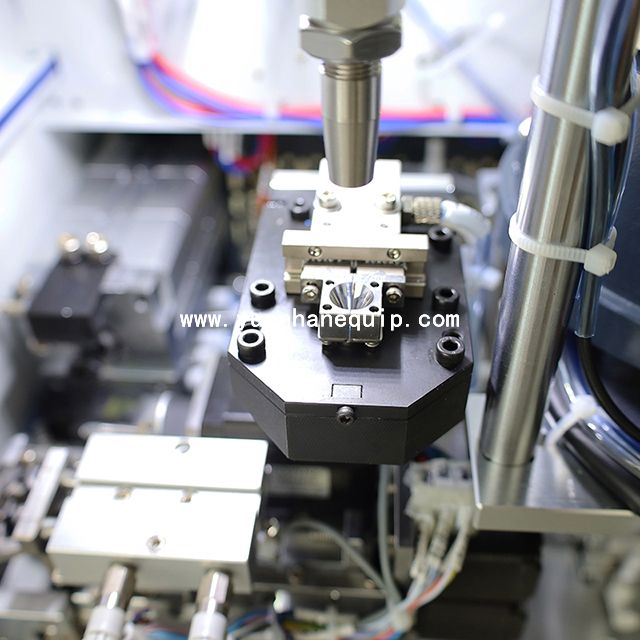

○ The terminals are crimped on all four sides, no need to replace the crimping die

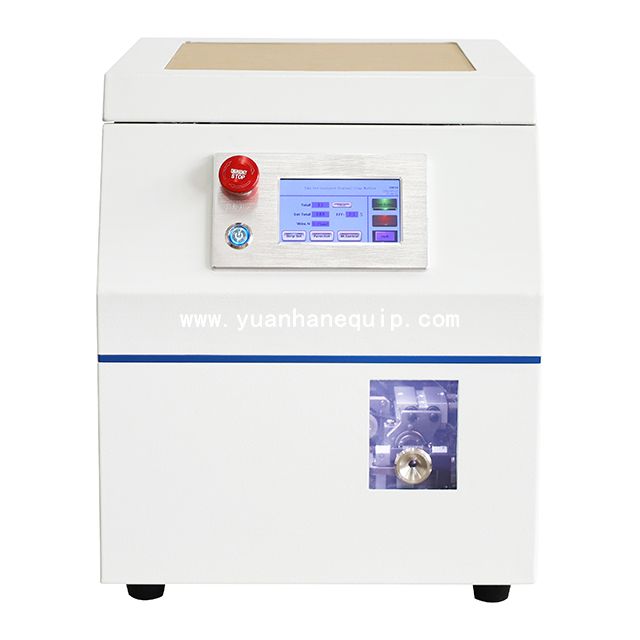

○ LCD display, automatically adjust stripping depth and length, as well as crimping height

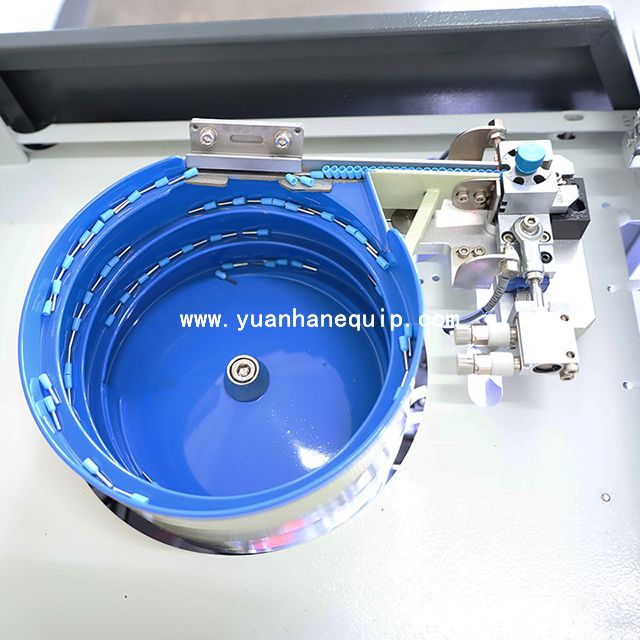

○ Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick

○ Fully sealed stripping and crimping, safe and reliable

Model YH-3PC
Capacity Cable Stripping, Terminal Inserting and Terminal Crimping are finished in 2.5 seconds
Applicable specs

0.35 mm2 – 2.5 mm2(Terminal conduit length should be less than 12mm)
4.0 mm2(Terminal conduit length should be less than 10mm)

Detect device detect lack of terminals
Power AC220V/50HZ single phase
Gas source 0.5-0.8Mpa (please use clean and dry air)
Dimensions L450mm x W350mm x H425mm
Weight about 40kg





×
