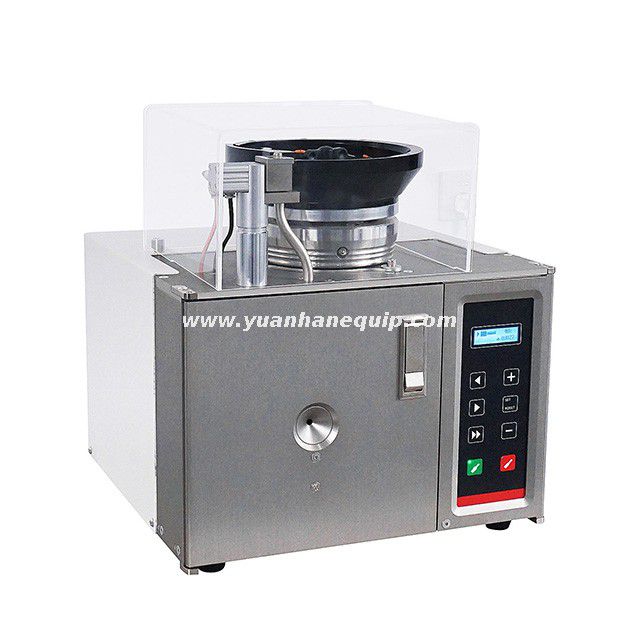

Pre-insulated Tubular Terminal Crimping MachinePre-insulated Tubular Terminal Crimping Machine

This loose tubular terminal crimping machine can finish wire stripping and crimping at one time. It is suitable for crimping cables of 0.5-2.5 sq mm or 4 sq mm.

Model:
  • YH-5PC
Brand:
  • Yuanhan
Share to:
Features
Specifications

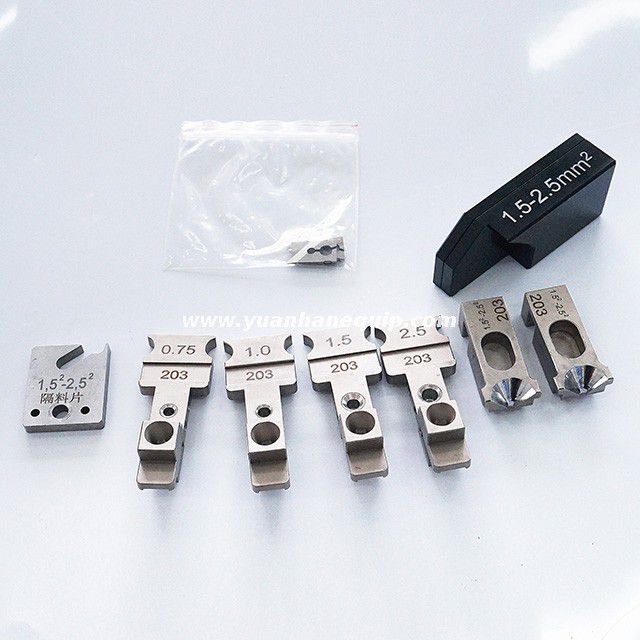

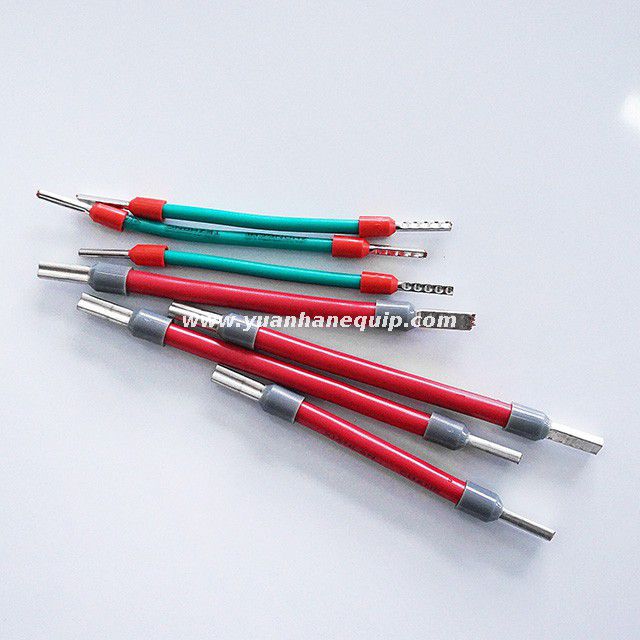

○ Suitable for crimping a variety of tube-shaped loose terminals.

○ Wire stripping and crimping are completed at one time.

○ The flared shape makes wire threading convenient

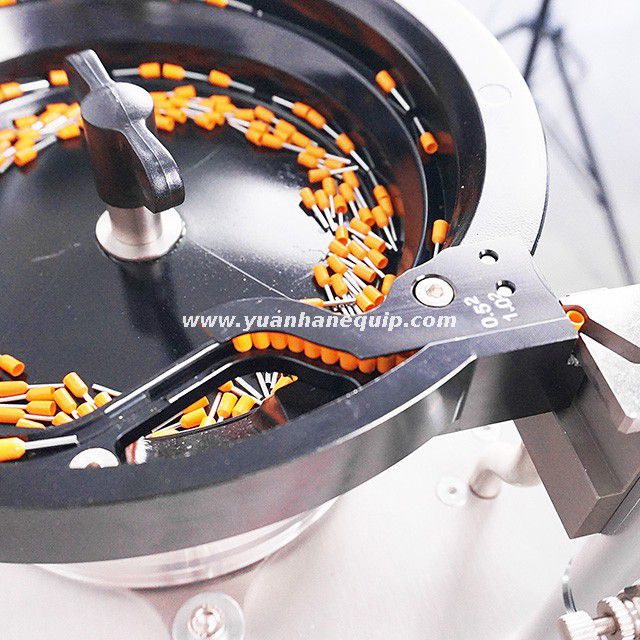

○ Adopting vibration plate feeding method, convenient and quick to replace terminals.

○ Processing wire size: or 0.5-2.5mmor 4mm2

Model YH-5PC
Stripping length 8-12mm
Speed 1.5s/time
Control method touch screen, electronic control, pneumatic control
Applicable wire 0.5-2.5mmor 4mm2
Terminal supply vibration plate feeding
Crimping method left and right horizontal crimping in parallel
Rated power supply AC220V 50Hz

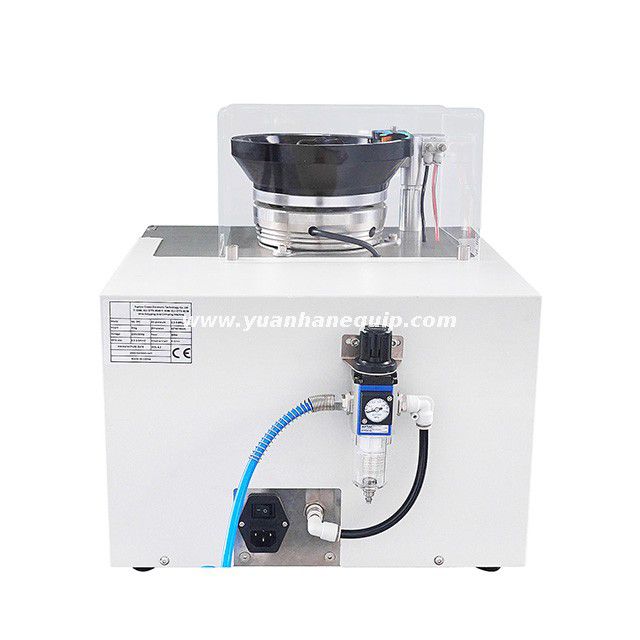

Working pressure 0.3-0.8MPA
Working temperature -10/40℃
Weight about 30KG
Dimension 42cmx40cmx39cm





×
