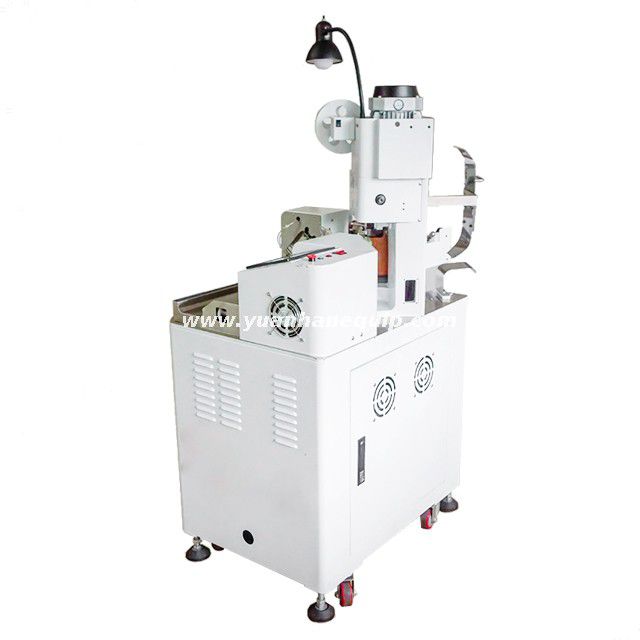

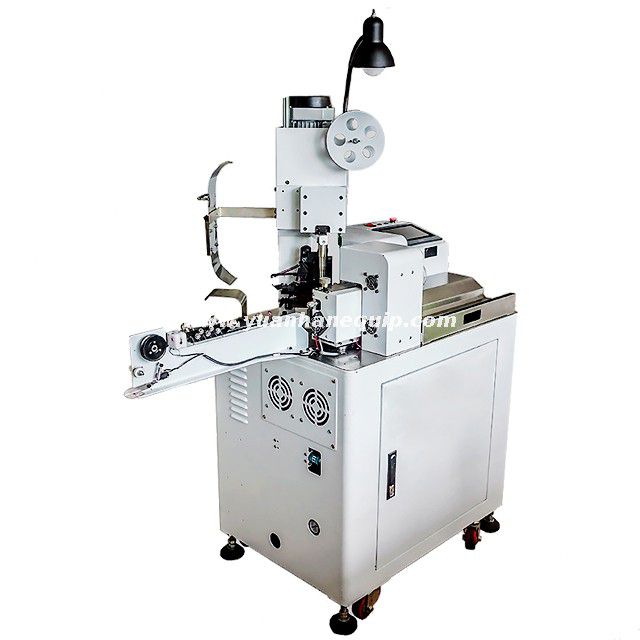

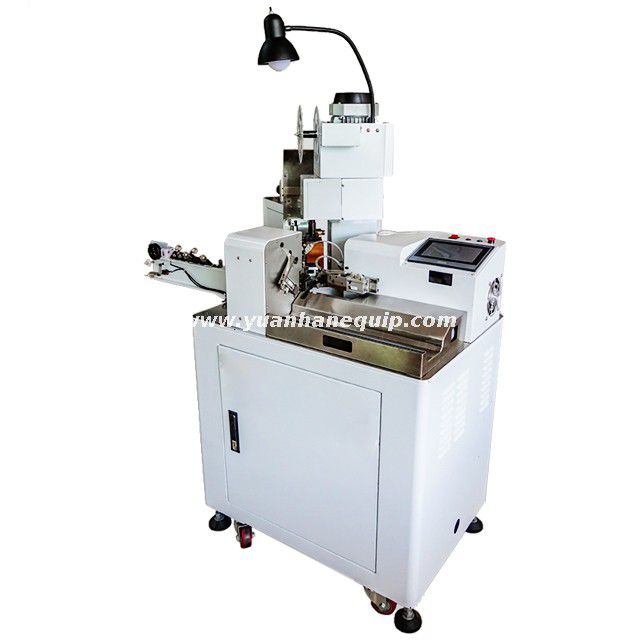

Twin Parallel Wires Stripping and Crimping Machine

Twin Parallel Wires Stripping and Crimping Machine

This machine is widely used to crimp twin parallel wires and it is able to split the wire before crimping. From wire feeding, cutting, stripping, splitting to terminal crimping, the whole procedure is fully automatic.

Model:	YH-R03
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

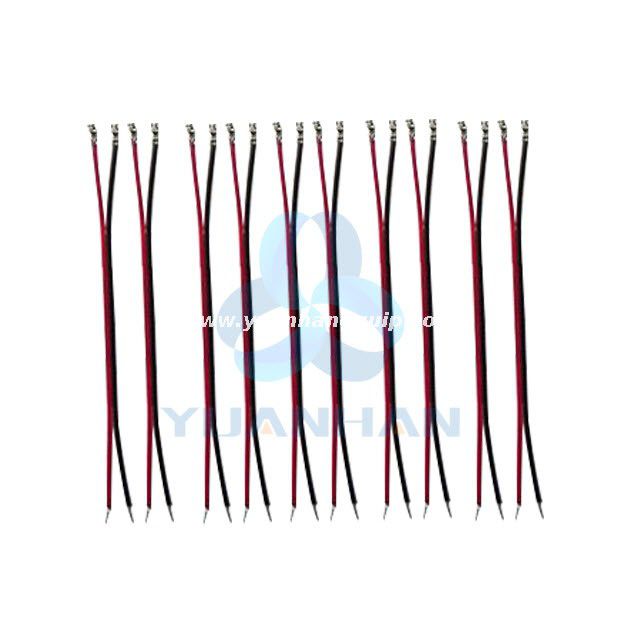

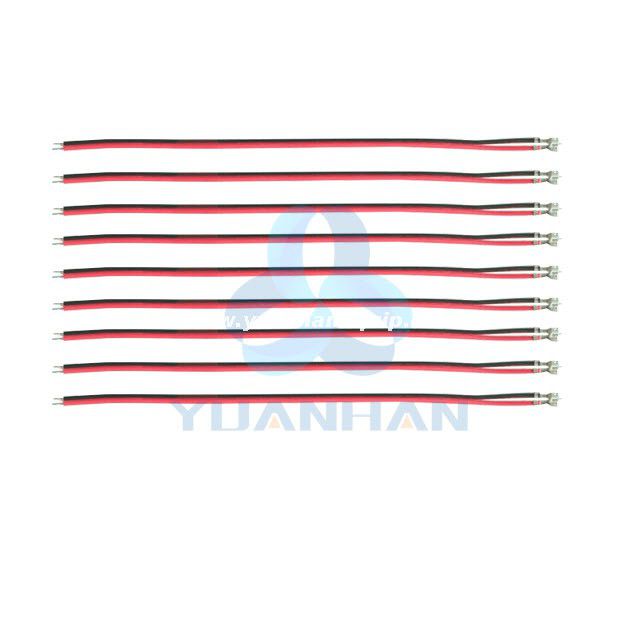

Widely used to crimp twin parallel wires and it is able to split the wire before crimping.
From wire feeding, cutting, stripping, splitting to terminal crimping, the whole procedure is fully automatic.
All the settings will be done through easy operation on LCD touchscreen, the machine will store the parameters for future use and control allthe settings to work exactly as you set.
All the wearing parts are made of topquality material, high precision and durable.
Both side-feeding die and straight-feeding die are available for processing, and the changeover between different die sets are easy and timesaving.

Model	YH-R03
Product features	Wire double-end cutting and stripping, crimping terminal on one end, twisting and tinning on the other end
Capacity	2000 - 4500 pcs / hour
Cutting length	35-999mm
Stripping length	0-10mm
Wire range	AWG18-28#
Tool material	Imported tungsten steel / high-speed net
Pneumatic accessories	Standard AirTAC
Detection device	Crimp detection, lack of wire detection, pressure detection, terminal detection
Air pressure	0.5-0.7MPA
Power supply	AC220V
Dimension	700(L)600(W)1500(H)mm (Not including packing)
Weight	About 260KG
