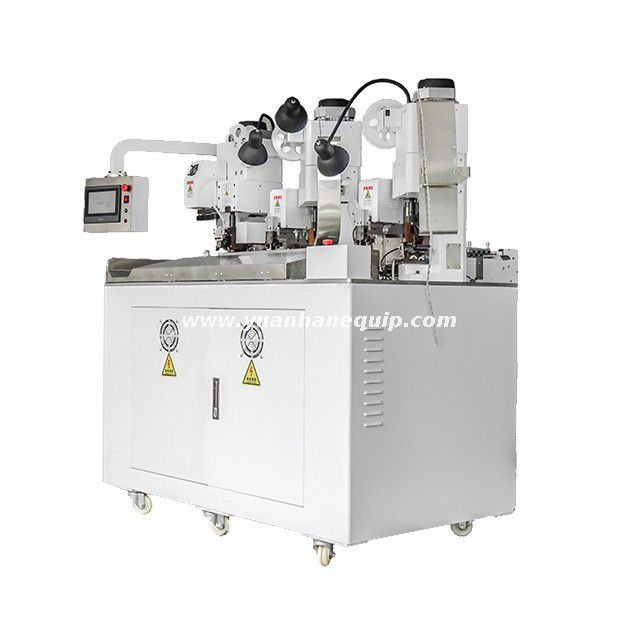

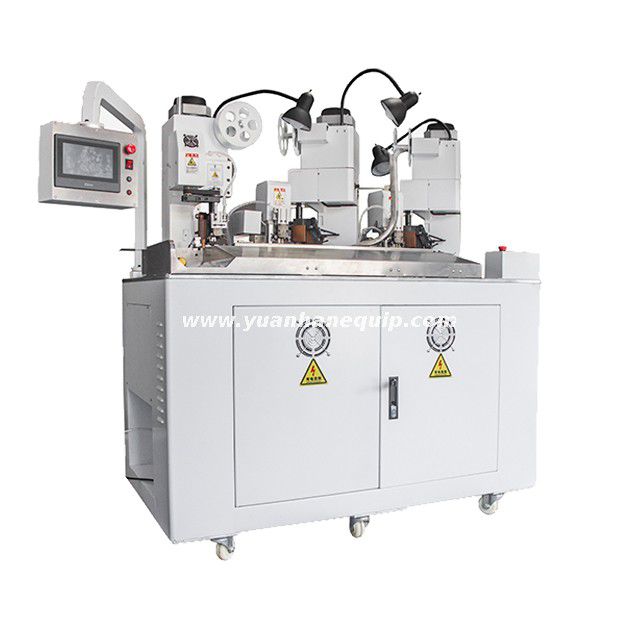

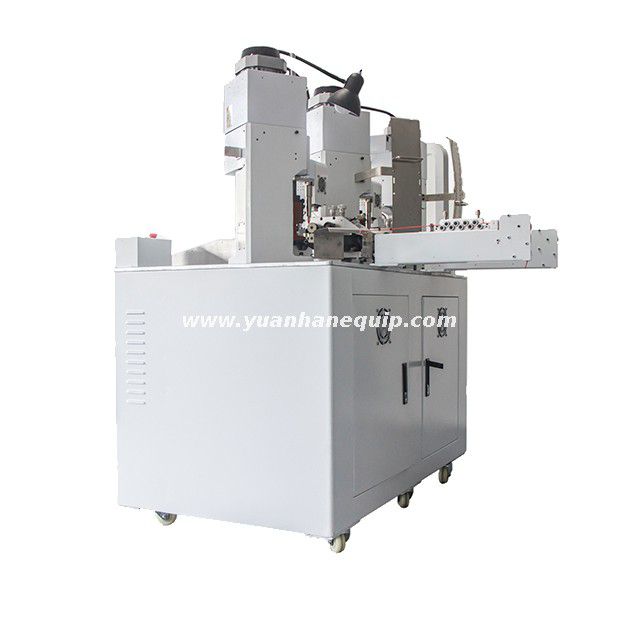

Two Wires Combined Terminal Crimping MachineTwo Wires Combined Terminal Crimping Machine

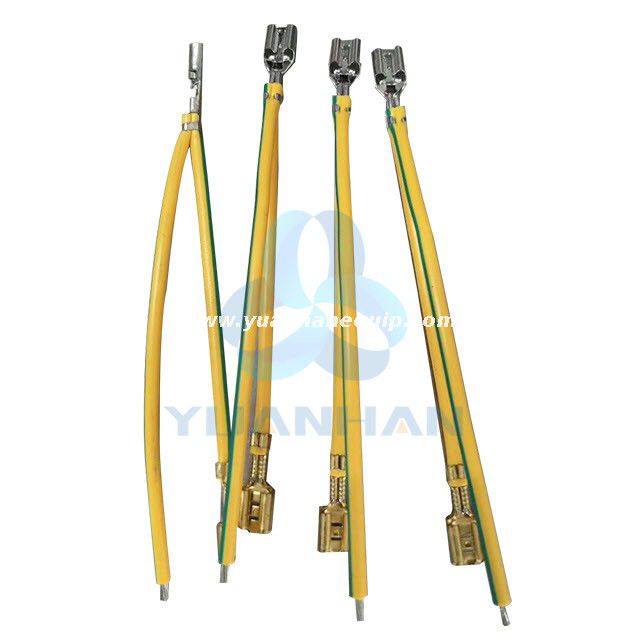

This two wires combined terminal crimping machine can automatically process of wire cutting, peeling, crimping two wires into one terminal, and crimping a terminal to the other end.

Model:
  • YH-N02
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Automatic wire cutting, peeling, crimping two wires into one terminal, and crimping a terminal to the other end

  • The equipment is highly automated, and an ordinary worker with simple training can control two fully automatic CNC double-wire combined terminal crimping machines

  • Modular design, simple adjustment, standard accessories, low maintenance costs

  • Man-machine interface, easy to learn and easy to operate

  • High efficiency, stability and intelligence

  • Use the touch screen operation to control the cutting length, stripping length, cutter value, half peeling value, and the depth of the crimping of the terminal crimping

  • It is the most automated and most efficient model on the market

Model YH-N02
Capacity 3000 pieces / hour
Wire cutting length 50-999mm
Wire stripping length 0-10mm
Suitable wire length AWG18-26#, 6-12P Cable
Tool material Imported tungsten steel / high-speed net
Pneumatic accessories Standard AirTAC
Detection device Crimp detection, lack of wire detection, pressure detection, terminal detection
Air pressure 0.5-0.7MPA
Power supply AC220V
Dimension 1000(L)*750(W)*1650(H)mm (Not including packing)
Weight 400KG



×
