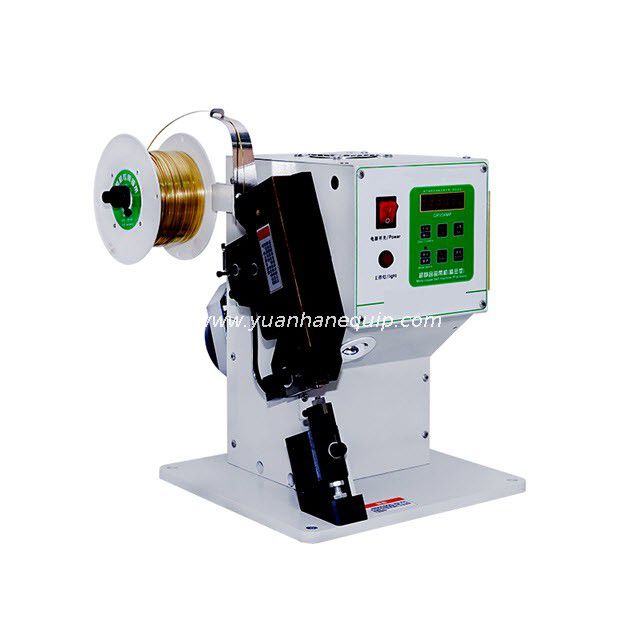

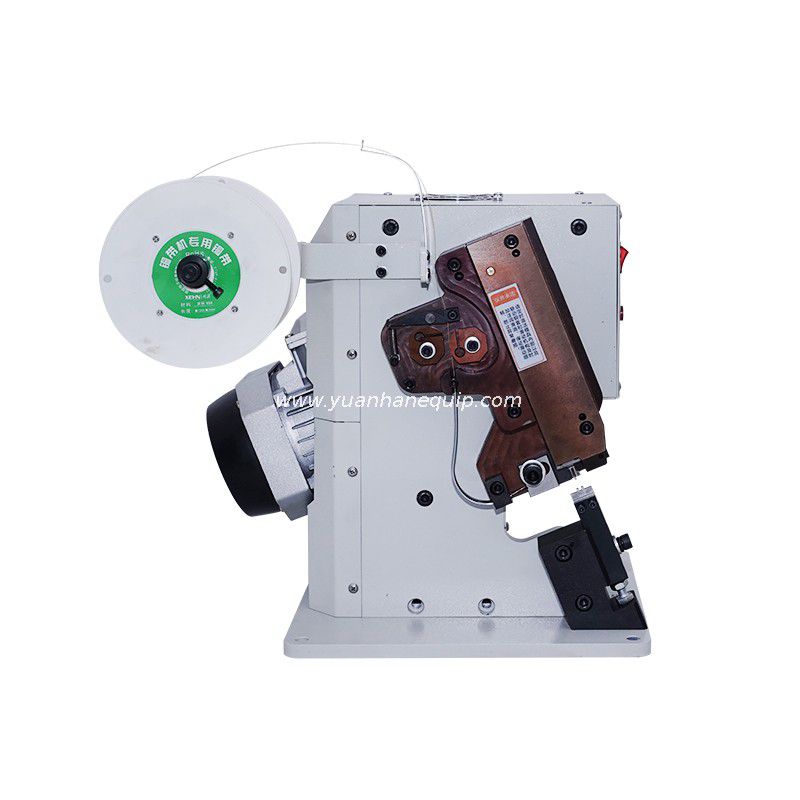

Wire Harness Copper Tape Splicing MachineWire Harness Copper Tape Splicing Machine

This machine is mainly used for splicing wires with copper strip, which replaces the traditional welding method.

Model:
  • YH-1.8T
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine is mainly used for splicing wires with copper strip, which replaces the traditional welding method

  • Using special continuous copper strip terminal, cutting and splicing can be done at once.

  • The copper belt is treated by special grain, and the endurance is very strong after riveting.

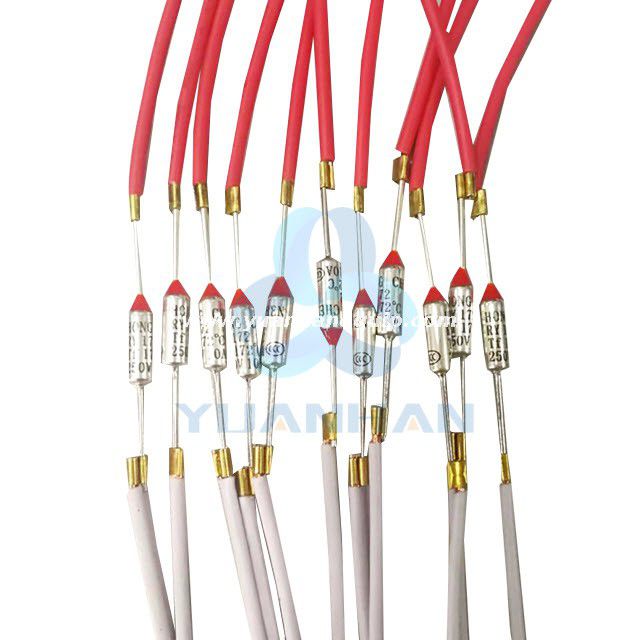

  • Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.

ModelYH-1.8T
Weight50KG
Pressing capicity2.0T
Crimping stroke
30mm
Work efficiency2000 times/hour
Applicable copper strip1.0mm, 1.5mm, 2.0mm, 4.0mm, 6.0mm
Dimension
370*350*470mm


×
